PUE 5.15 Display 15.6” / 1366 x 768 pixels
PUE 5.19 Display 19” / 1280 x 1024 pixel
Weighing Channels Up to 4
IP Rating IP66/67
Inquire about "PUE 5"
  • This field is for validation purposes and should be left unchanged.

PDF Download

Additional Info

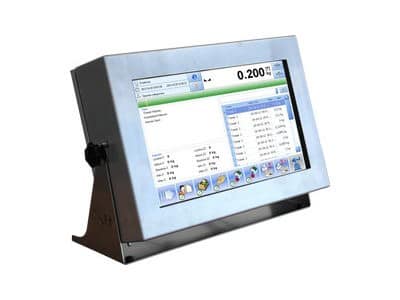

Cutting edge terminals PUE 5.15 and PUE 5.19 series are continuation of a well establish model line PUE 5 and they offer far greater application possibilities comprised in two solutions:

– PUE 5.15 (featuring a panoramic 15,6” touch screen display operating with resolution 1366 x 768 pixels);
– PUE 5.19 (featuring a 19” touch screen display operating with resolution 1280 x 1024 pixels).

The terminals are intended to designing scales with maximum resolution of 6000 e. PUE 5.15 and PUE 5.19 series, similarly to the basic model, are enclosed in a stainless steel housing which allows for reaching the highest IP rating, i.e. IP 67. The terminals are powered by mains 100 ÷ 240 V AC, 50÷60 Hz.
The terminals come standard with interfaces: 2 x RS232, 1 x RS485, 1 x Ethernet, 4 x USB 2.0.
PUE 5.15 and PUE 5.19 series can be extended by additional 3 weighing modules for simultaneous operation of maximum 4 weighing platforms.

Optionally available PROFIBUS DP interface enables terminals cooperation with industrial ProfiBus network.

Application:

The terminal PUE 5 series is a multifunctional weighing device. It combines the best features of a PC computer and a scale. The PUE 5 operates on basis of OS Windows, creating the best option for configuring the device to individual customer requirements through installing corresponding application.

If applied with dosing or formula making systems, the PUE 5 allows for operation with multiple weighing platforms, and simultaneous dosing with full process control. A dosing or formula making system that is configured on basis of the terminal PUE 5 series does not require an additional PC computer. Database editing is possible from the level of PUE 5 touch screen display or an optional PC keyboard.

Use:

Main applications for terminal PUE 5 series:

Designing industrial load cell scales;
Multiple weighing applications supervised by a computer system through Ethernet module;
Possibility of connecting large quantity of additional weighing platforms to industrial terminals.
