Features
- Equipped with 230Vac 50 Hz battery charger to be recharged in a safe area.
- Power supply through extractable battery, rechargeable in safe zone.
- 150-hour approximate operating time.
- Bearing structure in extra thick sheet steel and oven-fire painted interior construction.
- Standard fitted with +/-160° swivelling column head.
| ATEX Area | Zone 1 / 21 / 2 / 22 |
| Rating | Ex II 2GD IIB T4 T197°C X |
| Fork Dimensions | 1150 x 550 x 85 mm |
| Accuracy | +/- 0.05% of capacity |
| IP Rating | IP68 |
Inquire about "TPWX2GD ATEX Pallet Truck Scale"
PDF Download
Additional Info

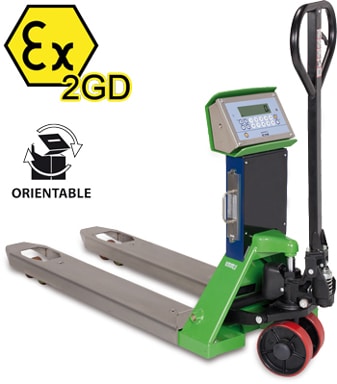

Pallet truck scales, with built-in electronic weighing, for dangerous areas classified as hazardous (ZONES 1 and 21 & 2 and 22) in accordance with Ex II 2G IIB T4 Gb X and Ex II 2D IIIC T197°C Db X.
The Atex certified four load cell weight detection IP68 guarantees the best accuracy in all work conditions.
Manufactured, calibrated and adjusted in Italy by Dini Argeo, using certified sample masses.
Available also CE-M APPROVED.
Available versions
| Code | Max (kg) |
d (kg) |
(kg) | d HR (kg)* |
| TPWX2GD20-1 | 500/1000/2000 | 0.2/0.5/1 | — | 0.1/0.2/0.5 |
| TPWX2GD20M-1 | 1000/2000 | — | 0.5/1 | — |
| TPWX2GD25-1 | 600/1500/2500 | 0.2/0.5/1 | — | 0.1/0.2/0.5 |
| TPWX2GD25M-1 | 1500/2500 | — | 0.5/1 | — |
| TPWX2GD15M-1 | 600/1500 | — | 0.2/0.5 | — |
(*) The HR division is obtainable only with the relative EHR option
