Caractéristiques
- Structure made in heavy powder coated steel, for harsh industrial environments
- 4 IP65 stainless steel load cells, protection against dust and water splashes
- Load cells are protected against dust and shocks by a metallic enclosures
| Conveyor Width | 500 - 3000 mm |
| Capacité | up to 20 t/h |
| Belt Speed | 0.1-7 m/s |
| Précision | ± 0.5 % |
| Inclination | Max 25 degrees |
Product enquiry

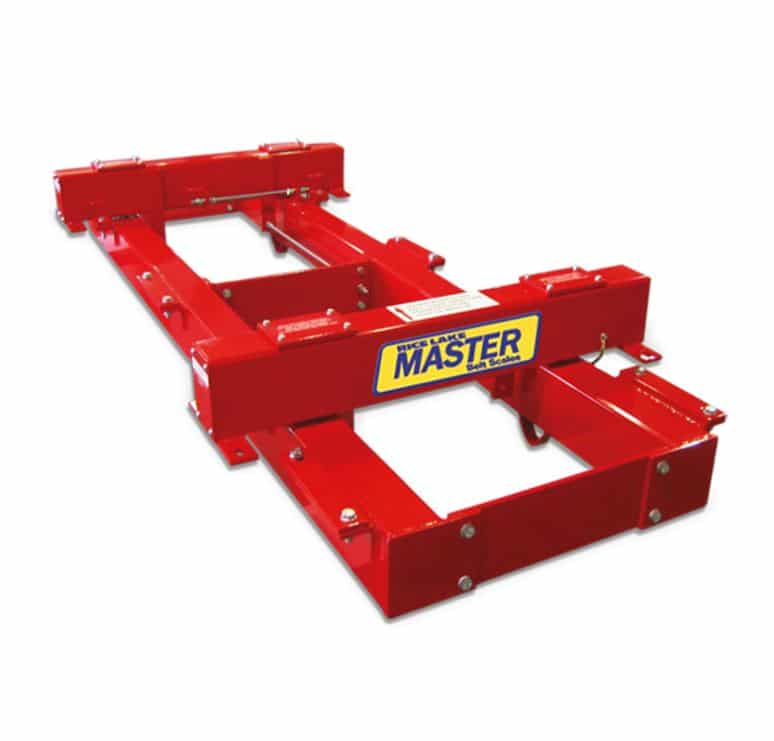

BS143 Cadre de pesage à bande haute précision
Tell us where it's going and we'll come straight back with pricing, lead time and install options.
Téléchargement PDF
Informations supplémentaires

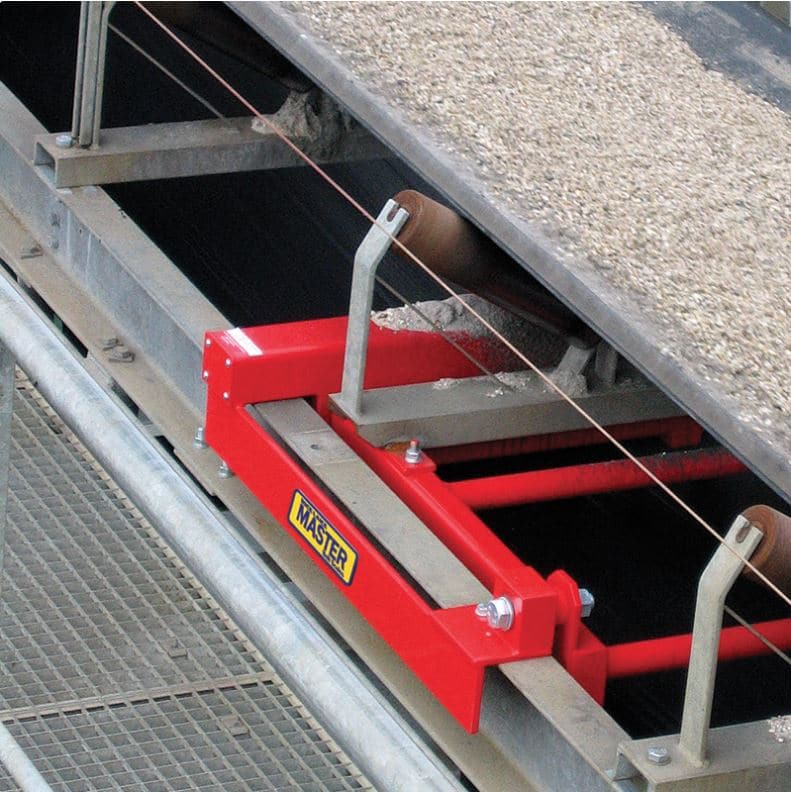

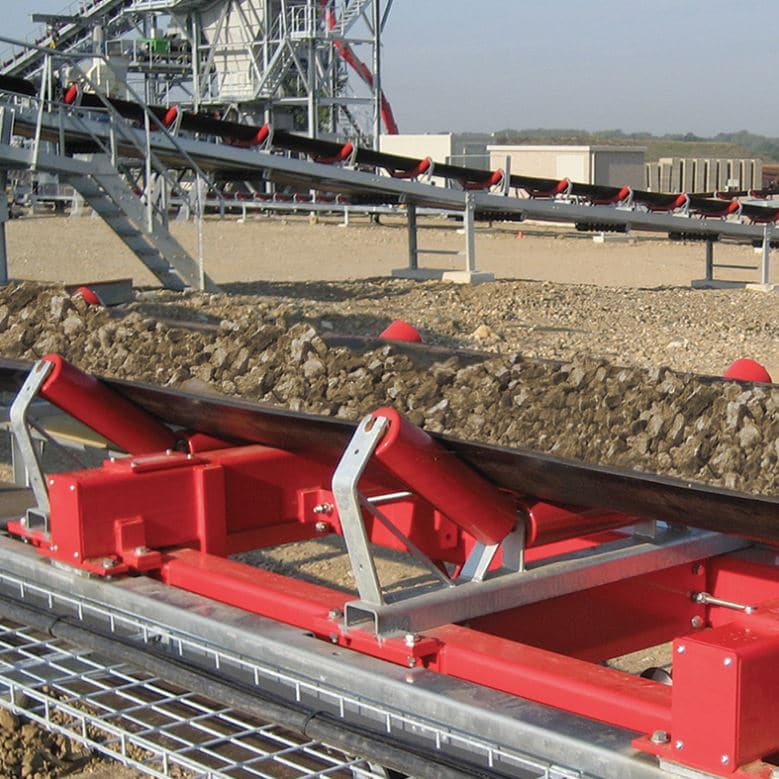

The BS143 master belt scale weigh frame is suitable for medium to heavy capacity belt conveyors, for high accuracy continuous weighing applications. The special free-floating structure and the multiple idler technology allows to obtain very high performances.
