Caractéristiques
- Structure made in heavy powder coated steel, for harsh industrial environments
- 1 IP65 load cell, protection against dust and water splashes
- Load cells are protected against dust and shocks by an hermetic enclosure
- Load cell safety stops against overloads
- Maximum supported belt speed up to 2 m/s, higher capacities upon request
- Maximum belt inclination up to 12 degrees, higher inclinations upon request

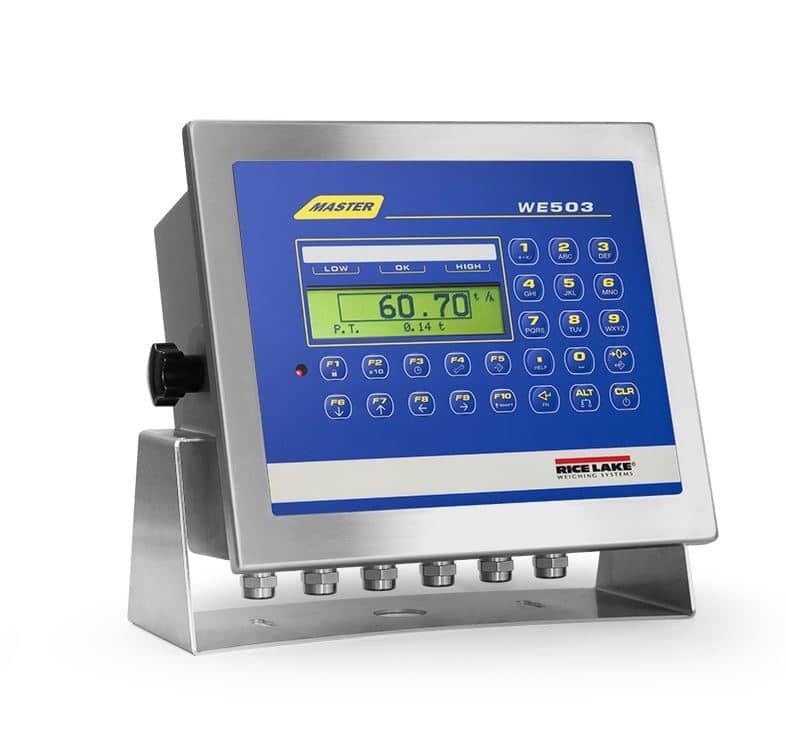

- Waterproof 25-key numerical functional keyboard
| Conveyor Width | 500-1200 mm |
| Capacité | 1-1.5 t/h |
| Belt Speed | 0.1-1.5 m/s |
| Précision | $125.00 |
| Inclination | Max 10 degrees |
Inquire about "BS311 Belt Scale Weigh Frame"
Téléchargement PDF
Informations supplémentaires

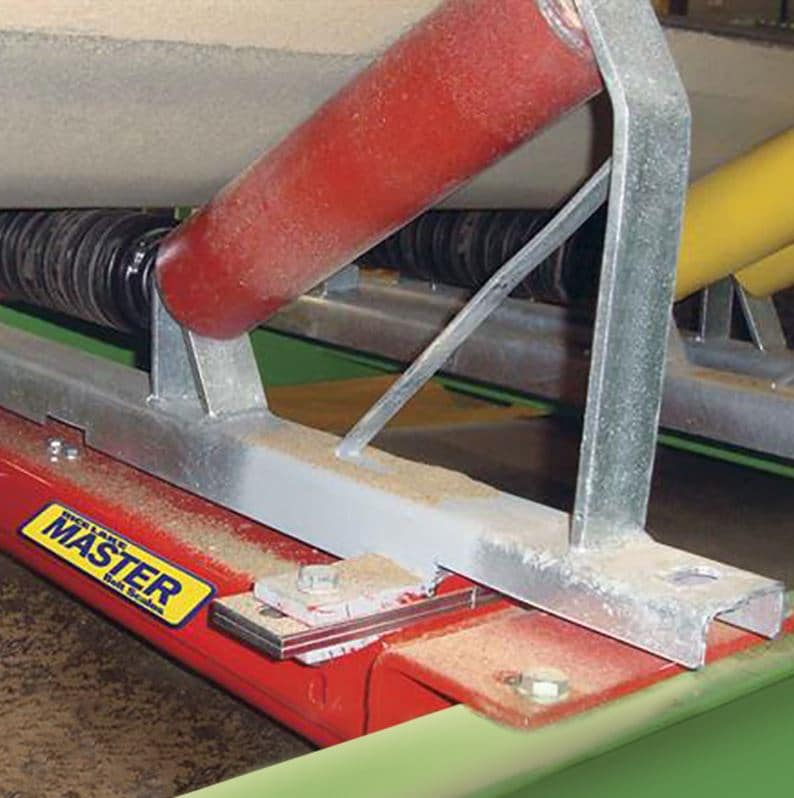

The BS311 master belt scale weigh frame is suitable for medium to heavy capacity belt conveyors. Easy to install and in standard or custom made dimensions, it easily fits on the conveyor frame by using only four bolts.
