Caractéristiques
- 17-key high thickness waterproof keyboard
- Satin IP68 stainless steel enclosure
- Connection with up to 8 load cells of 350 Ohm
- Internal resolution up to 3.000.000 points
- Legal-for-trade approval up to 10,000e or 3 × 3000e
- Flexible connectivity
| Dimensions | 280 x 143 x 185 mm |
| ATEX Rating | Zone 2/22 |
| Indice de protection IP | IP68 |
Inquire about "DFW-IECEX3GD Weigh Indicator For Ex 2 & 22 Zones"
Téléchargement PDF
Informations supplémentaires

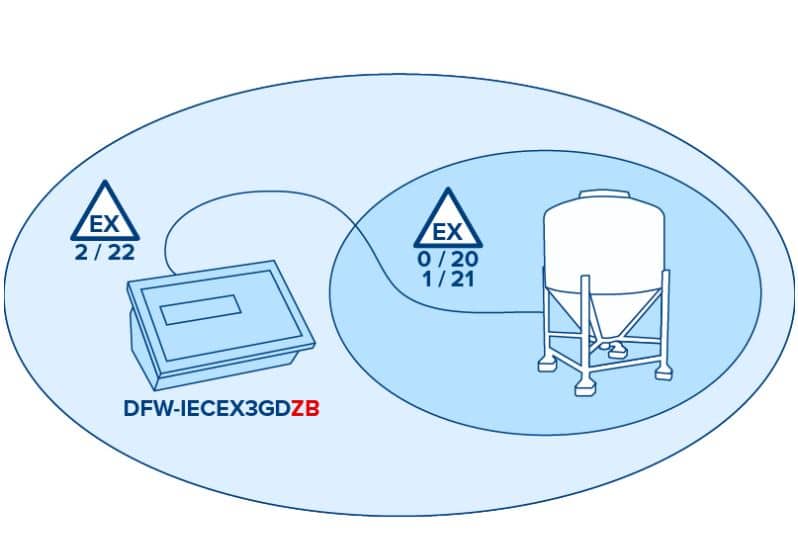

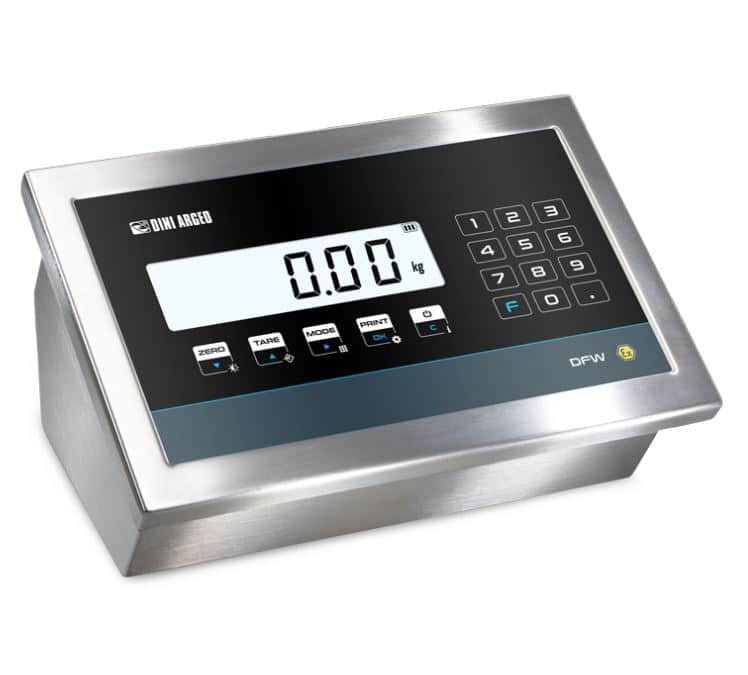

This IECEx-certified weight indicator is designed for reliable operation in hazardous environments, with versions available for direct connection to load cells installed in Zone 1/21 and 0/20 areas. The unit features a durable IP68 stainless steel enclosure, a 17-key waterproof keypad, and a backlit LCD display for clear, dependable operation in industrial settings. It supports up to 10,000e OIML-approved divisions for legal-for-trade use and offers high internal resolution for demanding weighing applications. With flexible configuration via keyboard or PC software and compatibility with up to eight load cells, it provides a robust and adaptable solution for hazardous area weighing systems.

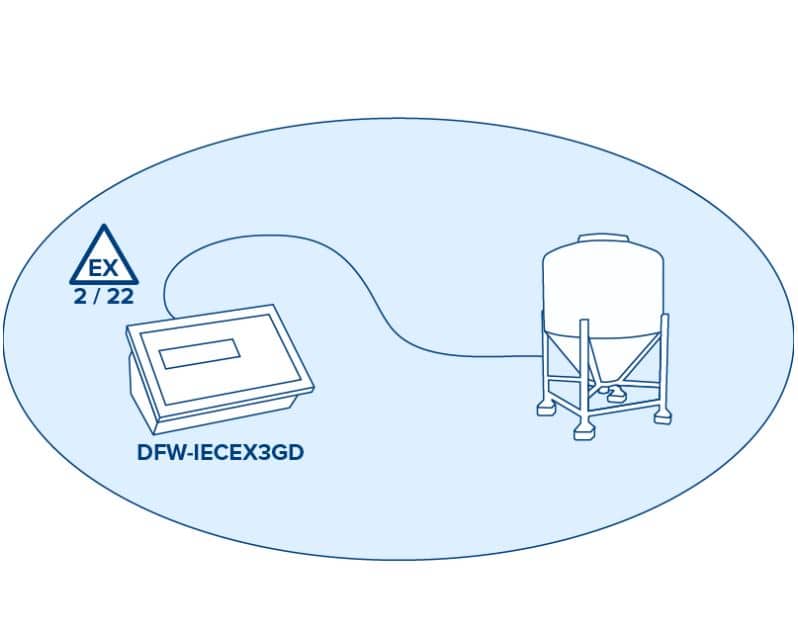

Weight indicator for Ex areas classified as hazardous. ATEX/IECEx marking:
- II 3G Ex nR IIC T6 Gc X (0°C<= Ta <=50°C) for gas
- II 3D Ex tc IIIC T85°C Dc IP65 X (0°C<= Ta <=50°C) for dust.
ATEX/IECEx marking with intrinsically safe connection for load cells:
-
- II 3G Ex nR [ia] IIC T6 Gc X (0°C<= Ta <=50°C) for gas
- II 3D Ex tc [ia] IIIC T85°C Dc IP65 X (0°C<= Ta <=50°C) for dust.
Suitable to realise weighing, dosing and automation systems. CE-M approvable (OIML R-76 / EN 45501).
