Caractéristiques
- Continuous monitoring of weighing system with up to 4 load cells
- Red LED display shows error message if fault condition occurs
- No separate power supply required - it is powered from the weight indicator / transmitter
- Simple, fast installation using removable terminal blocks
| Fabricant | Thameside |
Product enquiry
Boîte de jonction intelligente
Tell us where it's going and we'll come straight back with pricing, lead time and install options.
Téléchargement PDF
Informations supplémentaires
Continuous, cost-effective load cell monitoring with an instant alarm signal – just like having a service engineer on-site 24 hours a day, 7 days a week.

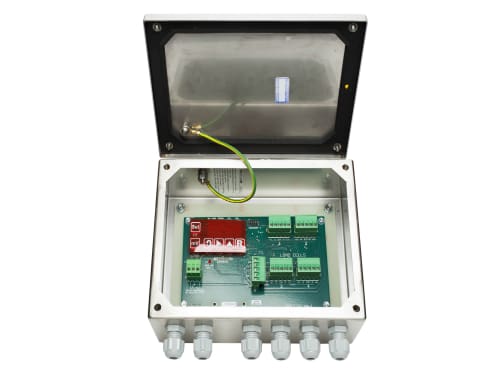

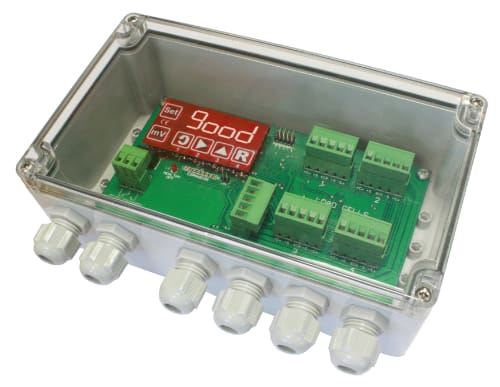

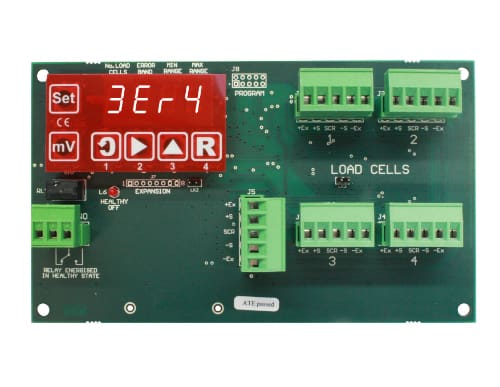

The JB4T-INTELLIGENT junction box is designed to continuously monitor a load cell weighing system for error or fault conditions. Up to 4 load cells can be monitored in the same weighing system; if a fault condition occurs with one or more load cells then an alarm signal is triggered via a relay output. There is no need for a standard junction box as well. It is powered directly from the weight indicator/transmitter so there is no need for an external power supply.
