Caractéristiques
- Fast and error-free operation is ensured by a high-contrast 4,3“ color TFT display
- With an optional input/output module two weight thresholds can be monitored, eg for max. or min. values.
- Weights can be stored in an internal W&M approved data archive for verification.
- Optional connection to PC ONLINE software package
| Affichage | 4.3“ Colour TFT |
| Indice de protection IP | IP65 Stainless Steel |
| ATEX Zone | 2/22 |
| Power | 110-230v |
Product enquiry

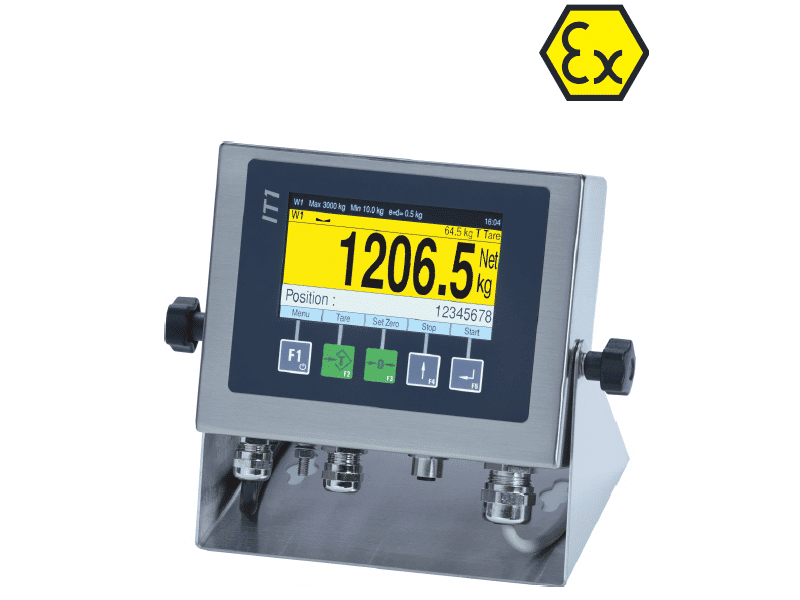

IT1 Ex2/22
Tell us where it's going and we'll come straight back with pricing, lead time and install options.
Informations supplémentaires
Universal Use
Suitable for difficult environmental conditions and locations with high hygienic standards, as in the food, pharmaceutical and chemical industry.
High Operational Security
Fast and error-free operation is ensured by a high-contrast 4,3“ color TFT display (11 cm diagonal) for the indication of weight, IDs and operator prompts in combination with an easy-to-use soft keyboard.
Weighing Electronics
IT3 Ex2/22 connects to one scale with up to 8 loadcells and provides a W&M approved resolution of up to 10,000 d with max. 80 % preload. Calibration is possible as single or multiple-range (eg 3 x 3,000 d) and as single or multi-interval scale. An internal W&M approved weight storage is available as option.
Weighing Program
Display of net, tare and gross weight. Operator prompting for capturing of weight or piece counting. Totalizing is also possible. Plug-on modules are used to set IT3 Ex2/22 up for applications of varying complexity
