Features

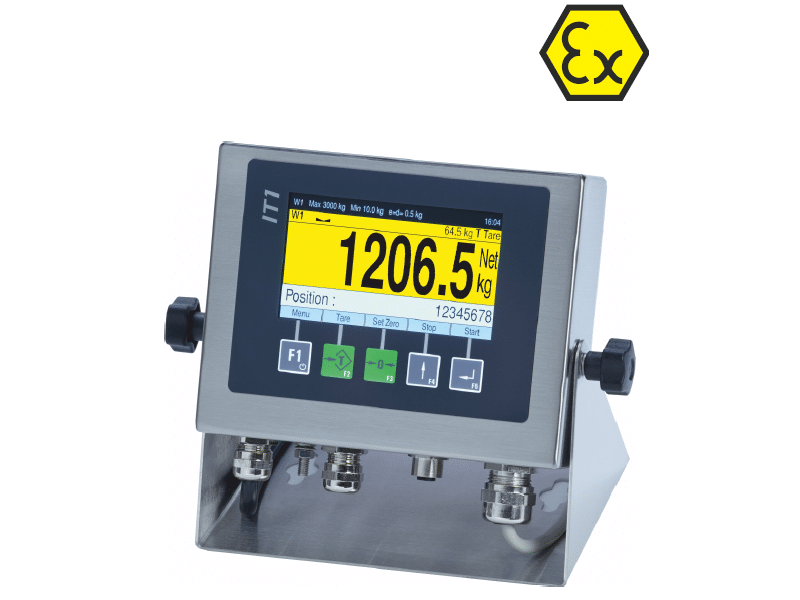

  • Fast and error-free operation is ensured by a high-contrast 4,3“ color TFT display
  • With an optional input/output module two weight thresholds can be monitored, eg for max. or min. values.
  • Weights can be stored in an internal W&M approved data archive for verification.
  • Optional connection to PC ONLINE software package
Display4.3“ Colour TFT
IP Rating IP65 Stainless Steel
ATEX Zone2/22
Power110-230v
Inquire about "IT1 Ex2/22"
  • This field is for validation purposes and should be left unchanged.

Additional Info

Universal Use

Suitable for difficult environmental conditions and locations with high hygienic standards, as in the food, pharmaceutical and chemical industry.

High Operational Security

Fast and error-free operation is ensured by a high-contrast 4,3“ color TFT display (11 cm diagonal) for the indication of weight, IDs and operator prompts in combination with an easy-to-use soft keyboard.

Weighing Electronics

IT3 Ex2/22 connects to one scale with up to 8 loadcells and provides a W&M approved resolution of up to 10,000 d with max. 80 % preload. Calibration is possible as single or multiple-range (eg 3 x 3,000 d) and as single or multi-interval scale. An internal W&M approved weight storage is available as option.

Weighing Program

Display of net, tare and gross weight. Operator prompting for capturing of weight or piece counting. Totalizing is also possible. Plug-on modules are used to set IT3 Ex2/22 up for applications of varying complexity
