Client Benefits

  • Faster order processing due to software improvements
  • Higher hygiene levels due to design
  • Instant traceability ability improving recall times on products
  • Integration with existing ERP systems
Platform Size 600 x 400mm (Other sizes optional)
Capacity 15kg / 30kg / 60kg / 150kg
Finish 304 Stainless Steel
Terminal 15" / 19" Touchscreen
Communication 2 x Ethernet / 4 x USB / 2 x RS232
Inquire about "OCM Labelling Solutions"
  • This field is for validation purposes and should be left unchanged.

Additional Info

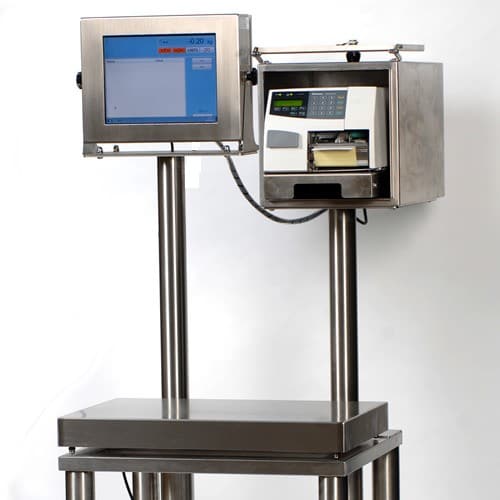

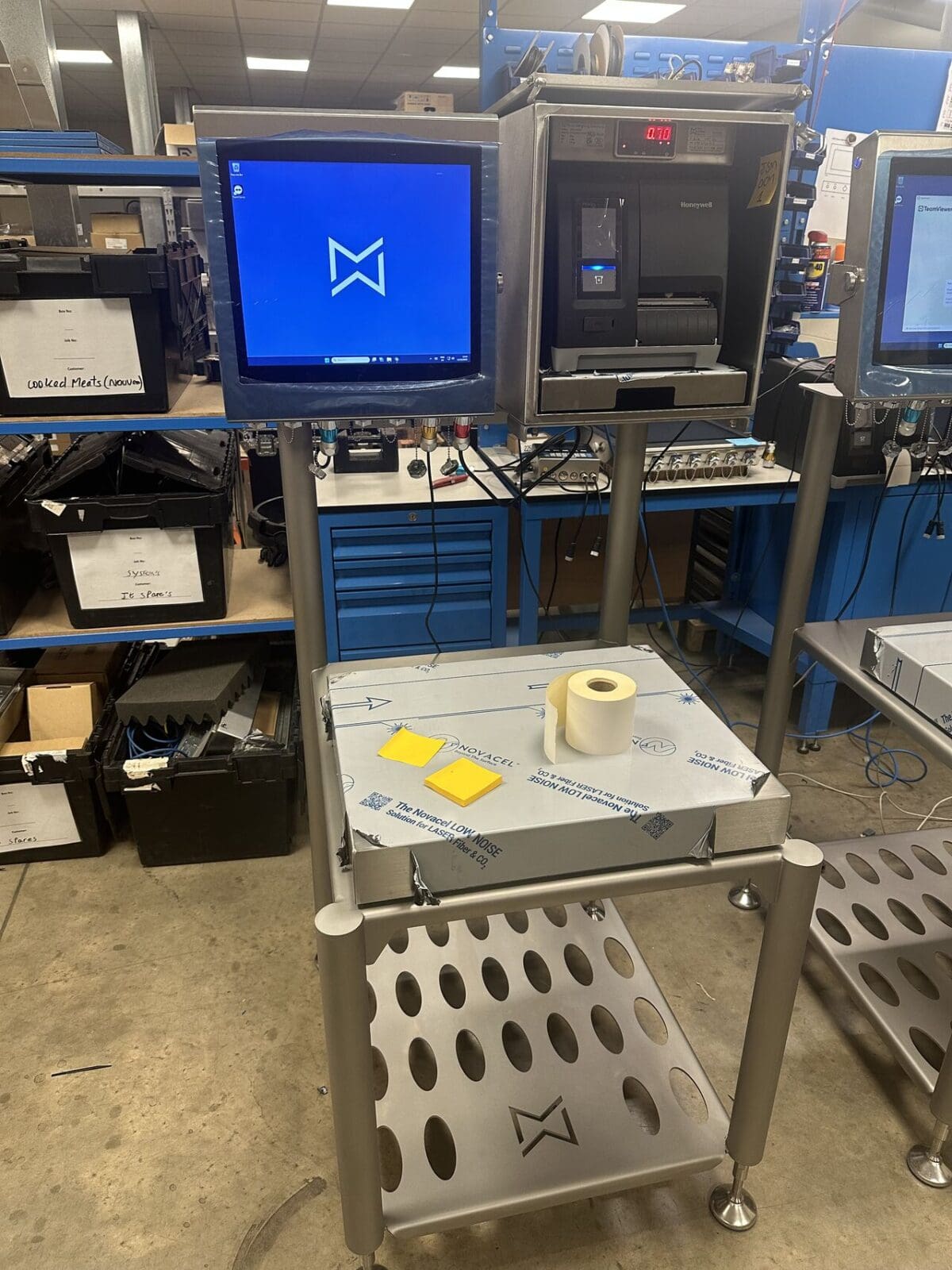

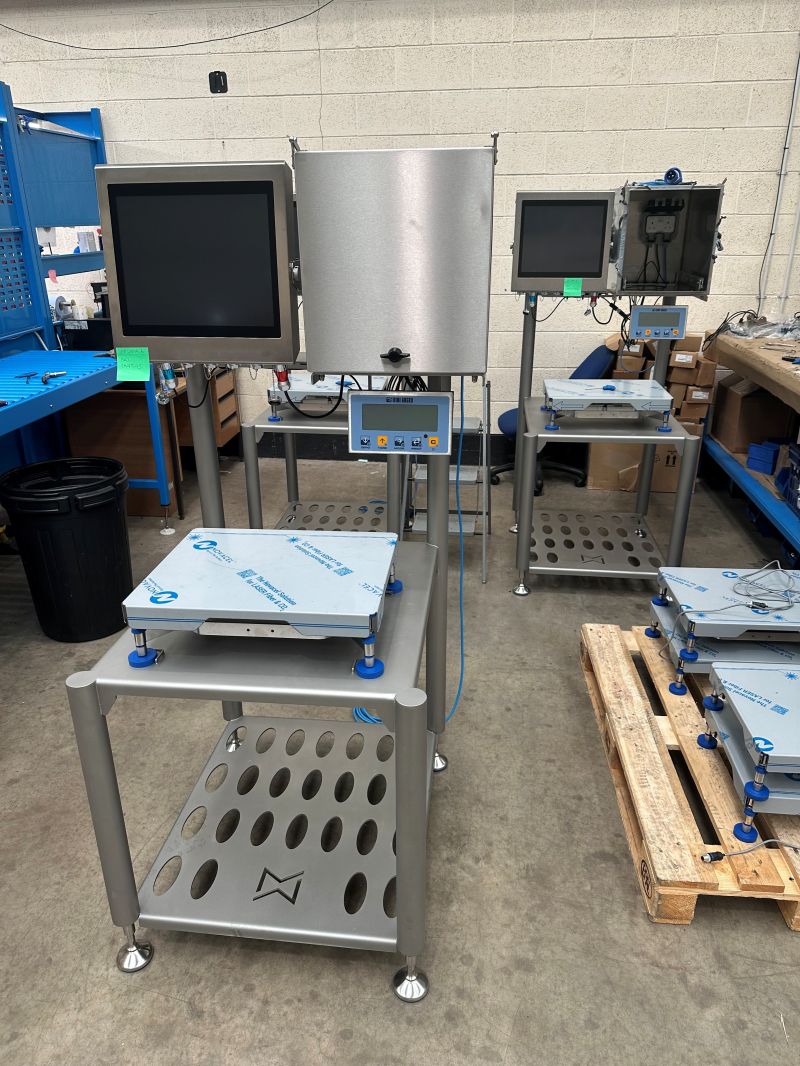

Outer Case Marking System, or OCM for short, incorporates a Windows touchscreen terminal, an industrial label printer and weighing platform into a hygienic stainless steel frame that can be portable or fixed in one location.

The large touchscreen makes using the OCM intuitive and clear for shop floor operators. The display can be customised to show various options and processes specific to client processes.

Office management of the Outer Case Marking System is included as standard to enable administration to enter new products, customers and label formats quickly and easily. Adding the optional Sales Order package enables office administration to enter orders and send them directly to the OCM for picking and packing by the operator.

Our scale design team can develop a system to work and look exactly how you want – we are very flexible. We are happy to tweak and change software to integrate into your existing system

 OCM Hardware

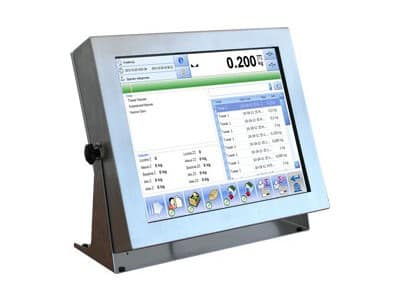

  • 15.6″ 1366 x 768px Resistive Touchscreen Display
  • 3 x RS232C, 1 x RS485, 2 x Ethernet, 4 x USB 2.0, 4 inputs / 4 outputs
  • Intel® Atom™ N270 1.6 GHz, 2 GB DDR2 400MHz
  • Microsoft Windows 7 Embedded

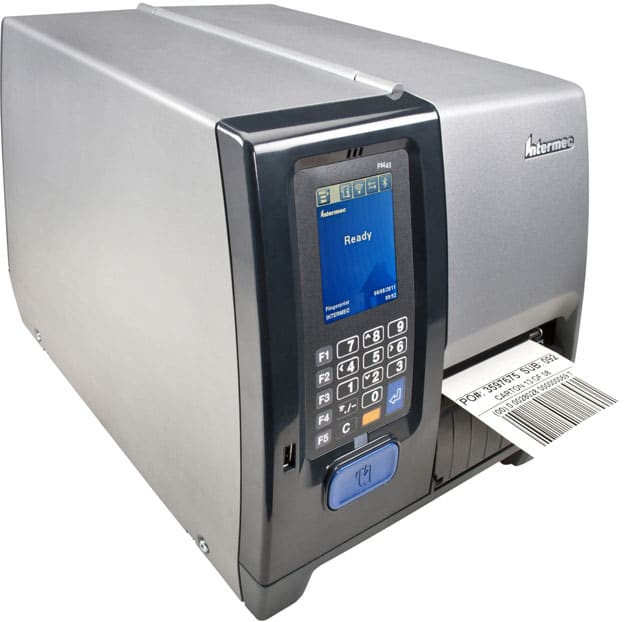

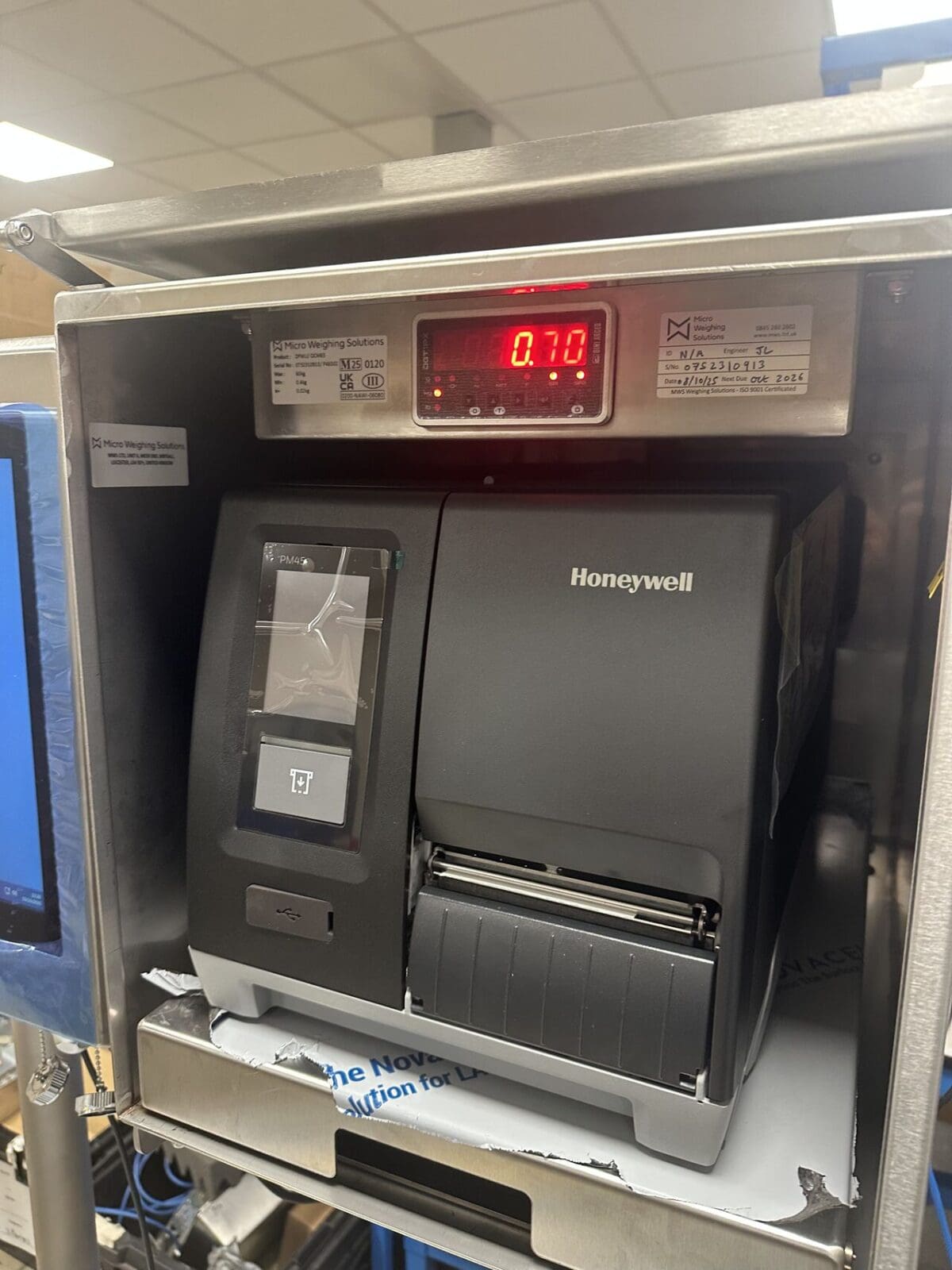

  • Intermec PF4i Label Printer & IP67 Stainless Steel Printer Garage
  • 600 x 400mm Stainless Steel Weighing Platform
  • High Grade Stainless Steel Finish

OCM Software

  • Multiple levels – unit, case, pallet
  • Multiple Dates with advanced off-set rules
  • Dynamic screens – flexibility over questions and layout
  • Transaction history with cancel box at terminal facility
  • Generate reports locally at terminals
  • Dynamic keyboards – unlimited shortcuts to PLU and Questions
  • Individual Weighed Pieces (IPP) – auto-generate case end labels
  • Label Design – WISIWIG design and preview
  • Ability to print to multiple printers simultaneously across Networks

Outer Case Marking Software – Optional Extras

  • Work Order (Production plan) control
  • Ability to Import Orders/Plan from any 3rd party system
  • Ability to Create Stock Items/Traceability
