Caractéristiques

  • Robust single cell weigh base built by MWS in the UK
  • C6 Approved load cell for trade approved 6,000e from HBM
  • Hygienic single piece weigh frame to reduce the potential of ingress from contaminants
  • Four 40mm diameter neoprene rubber feet for easy levelling of the weigh base using the built in bubble
  • Lower cost of ownership due to long-term lifespan of the product and components fitted
  • Lifetime warranty on the structural integrity of the fabrication, other components are covered for 5 years
MWS peut créer des solutions clés en main sur mesure. Si vous ne trouvez pas ce que vous cherchez, contactez-nous dès aujourd'hui pour discuter d'une conception personnalisée.
Matériau Acier inoxydable 304
Fin Sablage aux billes de verre
Tailles 300 x 300mm to 600 x 600mm
Capacities 3kg to 300kg
Options ATEX / Columns / Sizes
Cellule de charge HBM Single Point
Fabricant MWS Ltd
Prix From £740.00
Inquire about "MDBA-C6 Bench Platform Scale"
  • Ce champ sert à des fins de validation et ne doit pas être modifié.

Informations supplémentaires

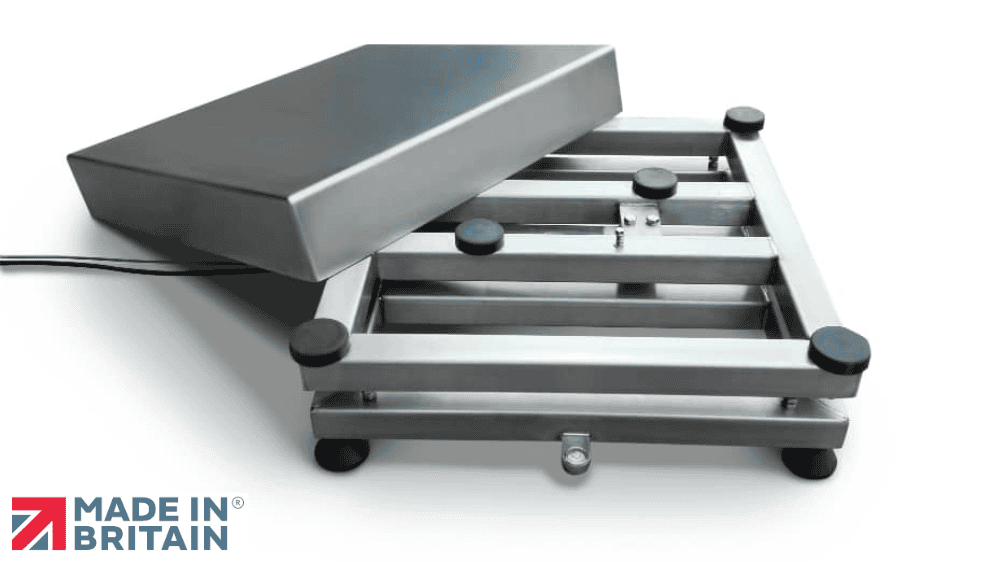

The MDB is a single point bench platform scale fitted with a C6 Approved load cell for trade approved 6,000e from HBM, designed and manufactured in Leicester by MWS.

The robust RHS box section design eliminates flex under load, while the closed design makes cleaning easy with less bug traps than alternative single piece models.

The MDB has four height adjustable food grade rubber feet and top plate rubbers that support the loading plate in six places.

A range of options such as columns, portable frames and ATEX upgrades makes the MDB a versatile stainless steel bench scale.

Modèle Weighing Area
(mm)		 Capacity
(kg)		 Cellule de charge Load Cell Material Indice de protection IP
MDBC6/33/6 300 x 300 6kg x 1g SP4M-10 – IP67 Aluminium IP67
MDBC6/33/12 300 x 300 12kg x 2g SP4M-10 – IP67 Aluminium IP67
MDBC6/33/30 300 x 300 30kg x 5g SP4M-10 – IP67 Aluminium IP67
MDBC6/43/6 400 x 300 6kg x 1g SP4M-18 – IP67 Aluminium IP67
MDBC6/43/12 400 x 300 12kg x 2g SP4M-18 – IP67 Aluminium IP67
MDBC6/43/30 400 x 300 30kg x 5g SP4M-18 – IP67 Aluminium IP67
MDBC6/44/6 400 x 400 6kg x 1g SP4M-50 – IP67 Aluminium IP67
MDBC6/44/12 400 x 400 12kg x 2g SP4M-50 – IP67 Aluminium IP67
MDBC6/44/30 400 x 400 30kg x 5g SP4M-50 – IP67 Aluminium IP67
MDBC6/55/30 500 x 500 30kg x 5g SP4M-50 – IP67 Aluminium IP67
MDBC6/55/60 500 x 500 60kg x 10g SP4M-50 – IP67 Aluminium IP67
MDBC6/66/30 600 x 600 30kg x 5g SP4M-100 – IP67 Aluminium IP67
MDBC6/66/60 600 x 600 60kg x 10g SP4M-100 – IP67 Aluminium IP67

Options

  • Column with Bracket – 300mm (Top of platform to base of terminal)
  • Column with Bracket – 500mm (Top of platform to base of terminal)
  • Column with Bracket – 700mm (Top of platform to base of terminal)
  • ATEX Load Cell & Certificate
  • 316 Stainless Steel Material
  • Electro Polish Finish
  • Custom sizes, Heights & Construction
