  • MDB C6 Aluminium Loadcell Base bench scale, manufactured in the UK
  • MDBS Bench Scale


  • Robust single cell weigh base built by MWS in the UK
  • C6 Approved load cell for trade approved 6,000e from HBM
  • Hygienic single piece weigh frame to reduce the potential of ingress from contaminants
  • Four 40mm diameter neoprene rubber feet for easy levelling of the weigh base using the built in bubble
  • Lower cost of ownership due to long-term lifespan of the product and components fitted
  • Lifetime warranty on the structural integrity of the fabrication, other components are covered for 5 years
Material 304 Stainless Steel
Finish Glass Bead Blast
Sizes 300 x 300mm to 600 x 600mm
Capacities 3kg to 300kg
Options ATEX / Columns / Sizes
Load Cell HBM Single Point
Manufacturer MWS Ltd
Price From £740.00
Inquire about "MDBA-C6 Bench Platform Scale"
  • This field is for validation purposes and should be left unchanged.

Additional Info

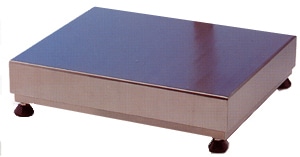

The MDB is a single point bench platform scale fitted with a C6 Approved load cell for trade approved 6,000e from HBM, designed and manufactured in Leicester by MWS.

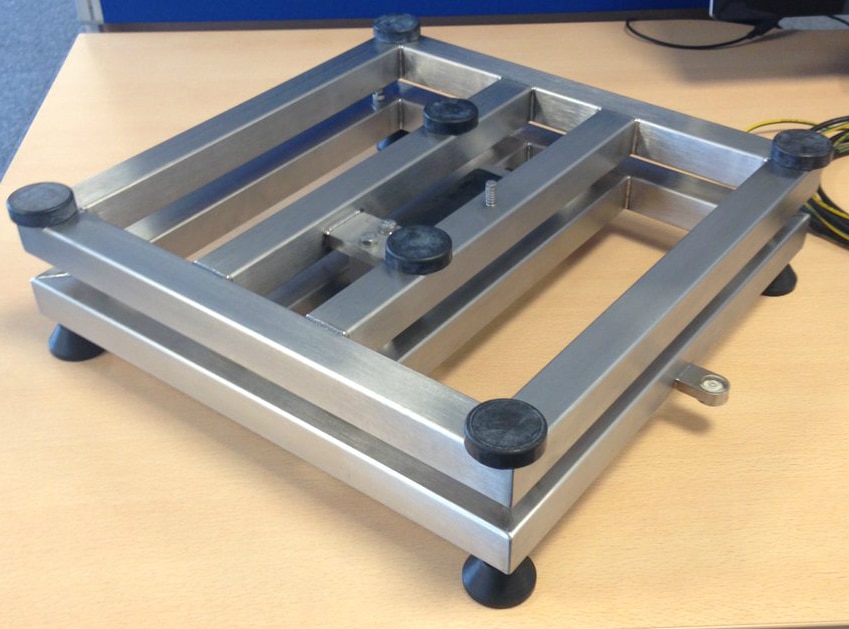

The robust RHS box section design eliminates flex under load, while the closed design makes cleaning easy with less bug traps than alternative single piece models.

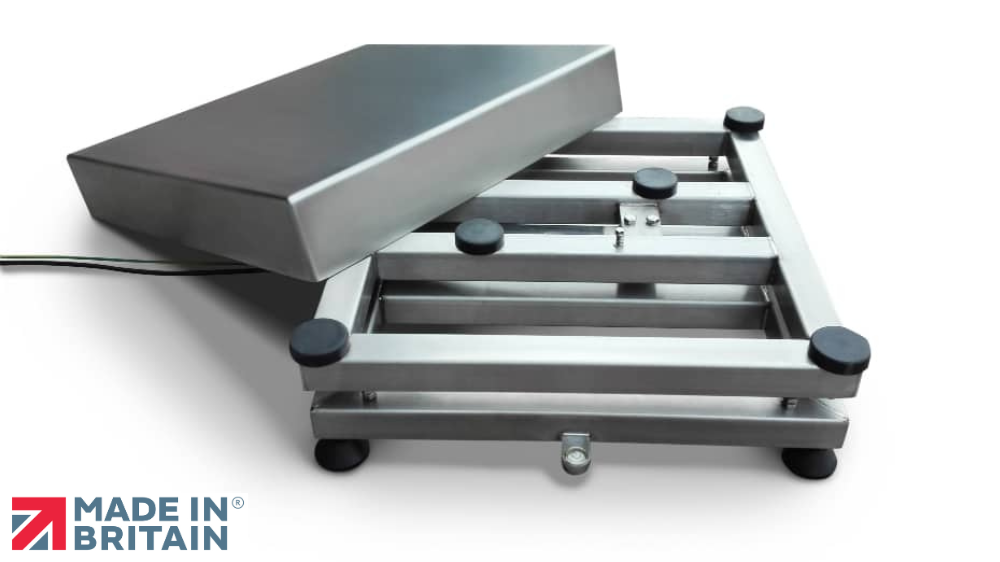

The MDB has four height adjustable food grade rubber feet and top plate rubbers that support the loading plate in six places.

A range of options such as columns, portable frames and ATEX upgrades makes the MDB a versatile stainless steel bench scale.

Model Weighing Area
Load Cell Load Cell Material IP Rating
MDBC6/33/6 300 x 300 6kg x 1g SP4M-10 – IP67 Aluminium IP67
MDBC6/33/12 300 x 300 12kg x 2g SP4M-10 – IP67 Aluminium IP67
MDBC6/33/30 300 x 300 30kg x 5g SP4M-10 – IP67 Aluminium IP67
MDBC6/43/6 400 x 300 6kg x 1g SP4M-18 – IP67 Aluminium IP67
MDBC6/43/12 400 x 300 12kg x 2g SP4M-18 – IP67 Aluminium IP67
MDBC6/43/30 400 x 300 30kg x 5g SP4M-18 – IP67 Aluminium IP67
MDBC6/44/6 400 x 400 6kg x 1g SP4M-50 – IP67 Aluminium IP67
MDBC6/44/12 400 x 400 12kg x 2g SP4M-50 – IP67 Aluminium IP67
MDBC6/44/30 400 x 400 30kg x 5g SP4M-50 – IP67 Aluminium IP67
MDBC6/55/30 500 x 500 30kg x 5g SP4M-50 – IP67 Aluminium IP67
MDBC6/55/60 500 x 500 60kg x 10g SP4M-50 – IP67 Aluminium IP67
MDBC6/66/30 600 x 600 30kg x 5g SP4M-100 – IP67 Aluminium IP67
MDBC6/66/60 600 x 600 60kg x 10g SP4M-100 – IP67 Aluminium IP67


  • Column with Bracket – 300mm (Top of platform to base of terminal)
  • Column with Bracket – 500mm (Top of platform to base of terminal)
  • Column with Bracket – 700mm (Top of platform to base of terminal)
  • ATEX Load Cell & Certificate
  • 316 Stainless Steel Material
  • Electro Polish Finish
  • Custom sizes, Heights & Construction
