Caractéristiques

  • Robust single cell weigh base built by MWS in the UK
  • Folded designed frame to reduce the potential of ingress from contaminants
  • Four 40mm diameter neoprene rubber feet for easy levelling of the weigh base using the built in bubble
  • Lower cost of ownership due to long-term lifespan of the product and components fitted
  • Lifetime warranty on the structural integrity of the fabrication, other components are covered for 5 years
MWS peut créer des solutions clés en main sur mesure. Si vous ne trouvez pas ce que vous cherchez, contactez-nous dès aujourd'hui pour discuter d'une conception personnalisée.
Matériau Acier inoxydable 304
Fin Sablage aux billes de verre
Tailles 300 x 300mm to 600 x 600mm
Capacities 3kg to 60kg
Options ATEX / Columns / Sizes
Cellule de charge Flintec Point unique
Fabricant MWS Ltd
Prix From £490.00
Inquire about "MDL Bench Platform Scale"
  • Ce champ sert à des fins de validation et ne doit pas être modifié.

Informations supplémentaires

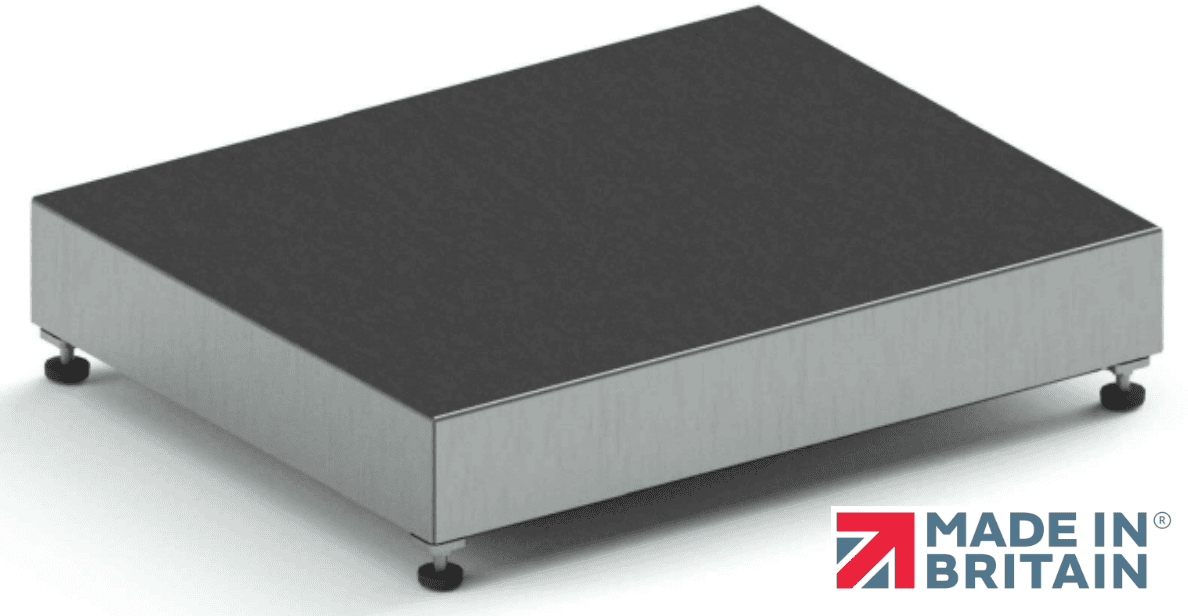

La MDL est une balance à plate-forme à point unique équipée d'un capteur de pesage en acier inoxydable de Flintec, conçue et fabriquée à Leicester par MWS.

The robust RHS box section design eliminates flex under load, while the closed design makes cleaning easy with less bug traps than alternative single piece models.

The MDB has four height adjustable food grade rubber feet and top plate rubbers that support the loading plate in six places.

A range of options such as columns, portable frames and ATEX upgrades makes the MDB a versatile stainless steel bench scale.

Modèle Zone de pesée
(mm)		 Capacity Range
(kg)		 Cellule de charge Load Cell Material Indice de protection IP
MDLA250 250 x 250 3 – 30 PC42 – IP67 Aluminium IP67
MDLA330 300 x 300 3 – 30 PC42 – IP67 Aluminium IP67
MDLA430 400 x 300 3 – 30 PC42 – IP67 Aluminium IP67
MDLA440 400 x 400 3 – 30 PC42 – IP67 Aluminium IP67
MDLS250 250 x 250 3 – 30 PC1 – IP67 Acier inoxydable IP67
MDLS330 300 x 300 3 – 30 PC1 – IP67 Acier inoxydable IP67
MDLS430 400 x 300 3 – 30 PC1 – IP67 Acier inoxydable IP67
MDLS440 400 x 400 3 – 30 PC1 – IP67 Acier inoxydable IP67
MDLS550 500 x 500 30 – 60 PC7 – IP69K Acier inoxydable IP69K

Options

  • Column with Bracket – 300mm (Top of platform to base of terminal)
  • Column with Bracket – 500mm (Top of platform to base of terminal)
  • Column with Bracket – 700mm (Top of platform to base of terminal)
  • ATEX Load Cell & Certificate
  • 316 Stainless Steel Material
  • Electro Polish Finish
  • Custom sizes, Heights & Construction
