  • Stainless steel bench platform with stainless steel or aluminium load cell.

Features

  • Robust single cell weigh base built by MWS in the UK
  • Folded designed frame to reduce the potential of ingress from contaminants
  • Four 40mm diameter neoprene rubber feet for easy levelling of the weigh base using the built in bubble
  • Lower cost of ownership due to long-term lifespan of the product and components fitted
  • Lifetime warranty on the structural integrity of the fabrication, other components are covered for 5 years
MWS can create bespoke, turn-key solutions, so if you don't see what you're looking for, speak to us today about a custom design
Material 304 Stainless Steel
Finish Glass Bead Blast
Sizes 300 x 300mm to 600 x 600mm
Capacities 3kg to 60kg
Options ATEX / Columns / Sizes
Load Cell Flintec Single Point
Manufacturer MWS Ltd
Price From £490.00
Inquire about "MDL Bench Platform Scale"
  • This field is for validation purposes and should be left unchanged.

Additional Info

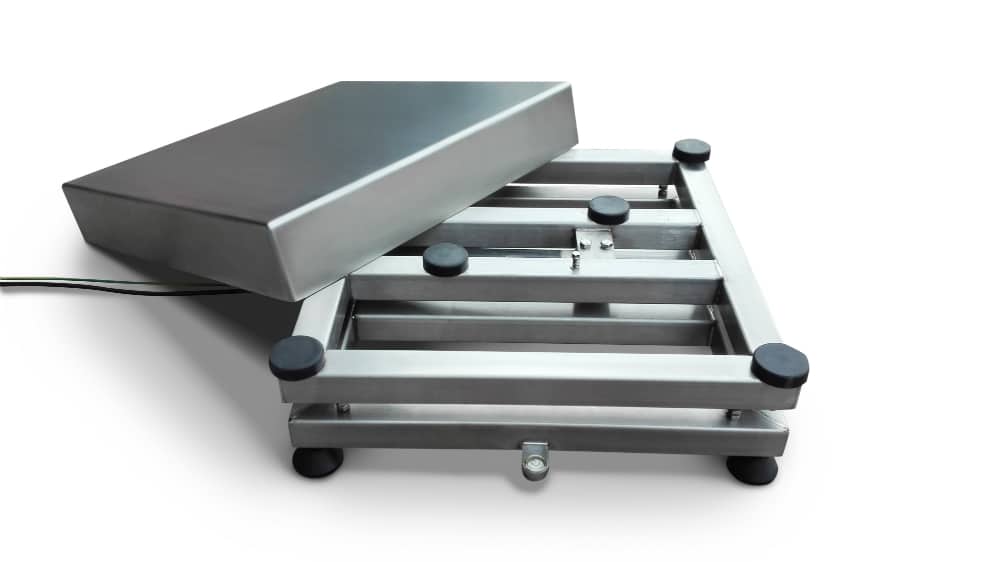

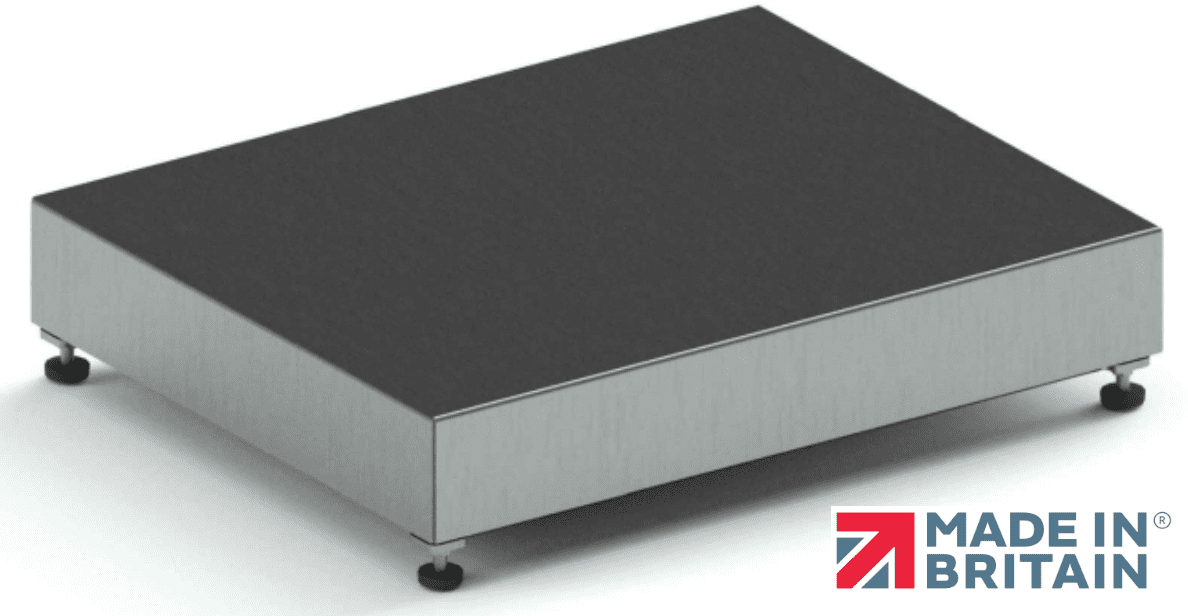

The MDL is a single point bench platform scale fitted with a stainless steel load cell from Flintec, designed and manufactured in Leicester by MWS.

The robust RHS box section design eliminates flex under load, while the closed design makes cleaning easy with less bug traps than alternative single piece models.

The MDB has four height adjustable food grade rubber feet and top plate rubbers that support the loading plate in six places.

A range of options such as columns, portable frames and ATEX upgrades makes the MDB a versatile stainless steel bench scale.

Model Weighing Area
(mm)		 Capacity Range
(kg)		 Load Cell Load Cell Material IP Rating
MDLA250 250 x 250 3 – 30 PC42 – IP67 Aluminium IP67
MDLA330 300 x 300 3 – 30 PC42 – IP67 Aluminium IP67
MDLA430 400 x 300 3 – 30 PC42 – IP67 Aluminium IP67
MDLA440 400 x 400 3 – 30 PC42 – IP67 Aluminium IP67
MDLS250 250 x 250 3 – 30 PC1 – IP67 Stainless Steel IP67
MDLS330 300 x 300 3 – 30 PC1 – IP67 Stainless Steel IP67
MDLS430 400 x 300 3 – 30 PC1 – IP67 Stainless Steel IP67
MDLS440 400 x 400 3 – 30 PC1 – IP67 Stainless Steel IP67
MDLS550 500 x 500 30 – 60 PC7 – IP69K Stainless Steel IP69K

Options

  • Column with Bracket – 300mm (Top of platform to base of terminal)
  • Column with Bracket – 500mm (Top of platform to base of terminal)
  • Column with Bracket – 700mm (Top of platform to base of terminal)
  • ATEX Load Cell & Certificate
  • 316 Stainless Steel Material
  • Electro Polish Finish
  • Custom sizes, Heights & Construction
