  • 8 inches (160x120mm) resistive backlit color touch screen graphic display.
  • 3 colour high brightness LED control light.
  • Real time clock and permanent data storage.
  • As standard fitted with an adjustable bracket, for bench or wall mounting.
  • Available touch screen keyboards: QWERTY, AZERTY or QWERTZ.
Display 8" Touchscreen
IP Rating IP68 Stainless Steel
Power Mains 110-230v
Inquire about "3590EGT8"
  • This field is for validation purposes and should be left unchanged.

Additional Info

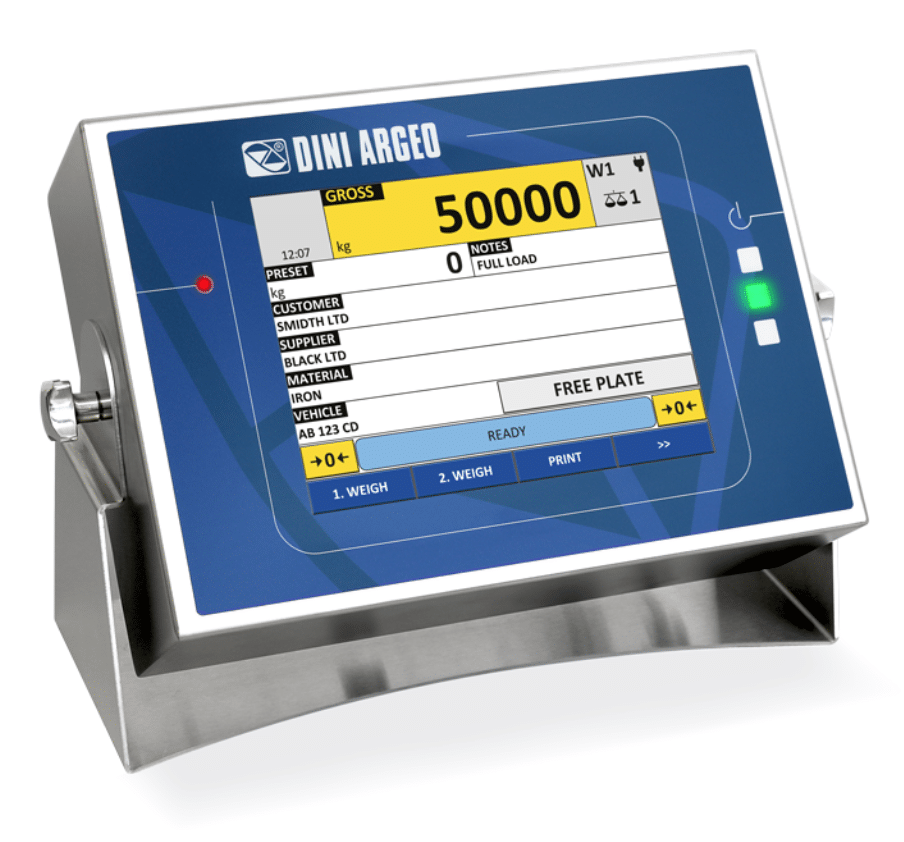

Weight indicator with 8 inches touch screen display. New IP68 housing with adjustable viewing angle brackets. Integrated LED control light on the front panel and Integrated Ethernet port as standard. The 3590EGT8 indicator, in addition to the standard weighing programs that are available also has a development environment for specific applications with an integrated debugger and programming tools for the PC.

Thanks to the completely customizable screen layouts it can display all the weighing data, database records and free texts, this considerably simplifies the user operations. CEM approvable (OIML R76/EN 45501).

Standard Applications Available

  • AF01: Totalization and formula weighing (integrated)
  • AF02: Pieces/quantity counting (optional)
  • AF03: Weighbridges – Input/Output vehicle (optional)
  • AF04: Statistical checking of prepackaged goods (optional)
  • AF05: Price computing and industrial labelling (optional)
  • AF08: Wheel and axle static weighing with 2 or various platforms (optional)
  • AF09: Software for dynamic and static axle weighing with 1 or 2 platforms (optional)
  • BATCH1: Single product dosage systems in loading and unloading (optional)
  • BATCH: Software for multicomponent dosage systems in loading and unloading (optional, IOEXPB board must be included)
