Features

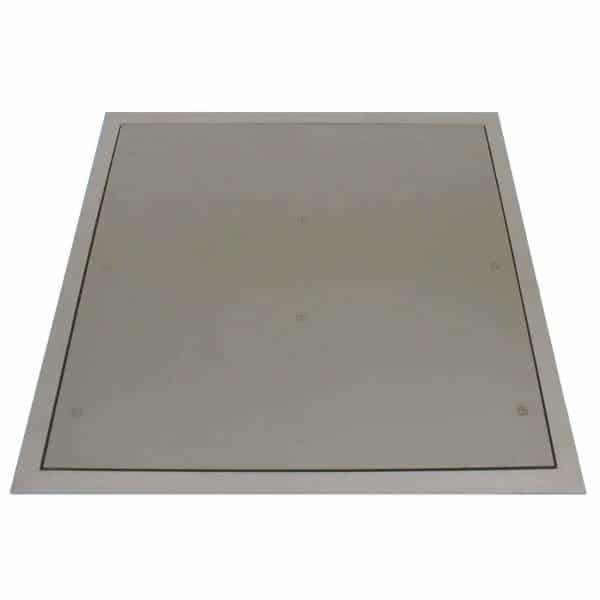

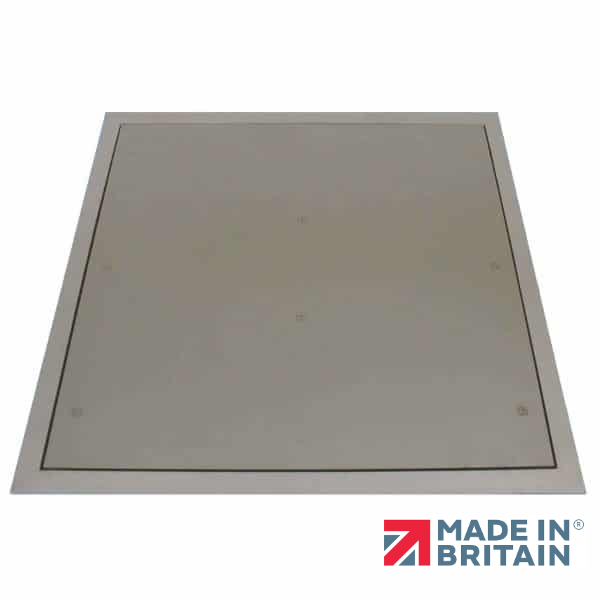

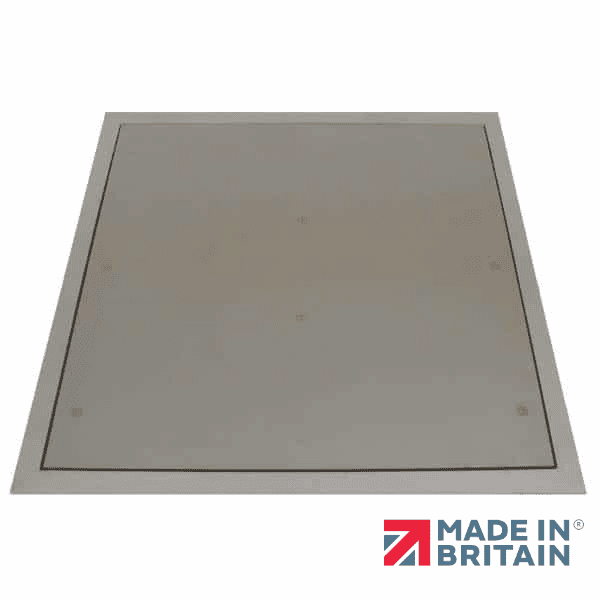

  • The DPS is a tried and tested pit scale built from 3mm box section with 12mm thick load cell plates
  • Fully welded frame structure with zero pockets for potential ingress from contaminants
  • Lower cost of ownership due to longterm lifespan of the product and components fitted
  • Pit frame kit includes a 50 x 50mm angle frame and four pit location plates
  • Fast and easy to install
  • Lifetime warranty on the structural integrity of the fabrication
  • 5 year warranty on components
MWS can create bespoke, turn-key solutions, so if you don't see what you're looking for, speak to us today about a custom design
Material 304 Stainelss Steel
Finish Bead Blast
Size 750 x 750mm to 3000 x 2000mm
Capacity 300kg to 6000kg
Manufacturer MWS Ltd
Inquire about "DPS Stainless Steel Pit Scale"
  • This field is for validation purposes and should be left unchanged.

PDF Download

Additional Info

The DPS range is designed and manufactured in the UK by MWS. They are assembled using 304 stainless steel and high quality components sourced in the UK.

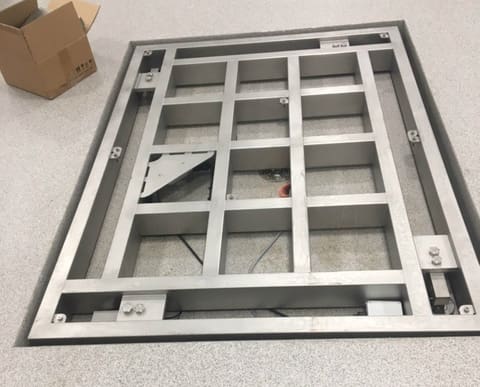

The DPS is built using RHS steel for strength and hygiene. The frame design allows for the potential to upgrade the strength in areas where a forklift truck is present.

The DPS range is manufactured to order and can be designed to suit existing pits or built to specific dimensions.

Model Size Platform Height Capacity Load Cell
DPS75 750 x 750 mm 120 mm 300 – 1,000 kg Flintec SB14
DPS1010 1000 x 1000 mm 120 mm 300 – 1,500 kg Flintec SB14
DPS1212 1250 x 1250 mm 120 mm 300 – 3,000 kg Flintec SB14
DPS1515 1500 x 1500 mm 120 mm 300 – 3,000 kg Flintec SB14
DPS2020 2000 x 2000 mm 120 mm 300 – 3,000 kg Flintec SB14
DPS/SP Bespoke Sizes TBC 300 – 6,000 kg Flintec SB14
