  • JBQ Load Cell Junction Box

Features

  • Maximum input voltage: 24Vdc.
  • Maximum input current: 700mA.
  • Maximum input load cell signal: 1000mV.
  • Temperature effect: 50ppm/°C.
IP Rating IP67
Material ABS Plastic
Dimensions 120 x 80 x 55mm
Inquire about "JBQ: Equalisation Junction Box"
  • This field is for validation purposes and should be left unchanged.

Additional Info

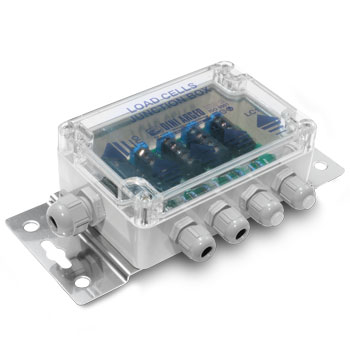

IP67 junction box fitted with electronic board for junction and equalisation of 2, 3, or 4 load cells. Terminal boards with a screw for easing the connection of the load cells and the signal adjustment trimmer, for an accurate and reliable equalisation.
