Features

  • Very simple to install
  • Capacity range 300kg to 5000kg in 3 sizes: 300kg-2500kg ; 3000kg-5000kg ; 7500-10000kg
  • Designed for platform, hopper, tank and mixer scales with vibration
  • T85 load cell has a fully welded and hermetically sealed stainless steel construction
Inquire about "LA85 Anti-Vibration Assembly"
  • This field is for validation purposes and should be left unchanged.
PDF Download

Additional Info

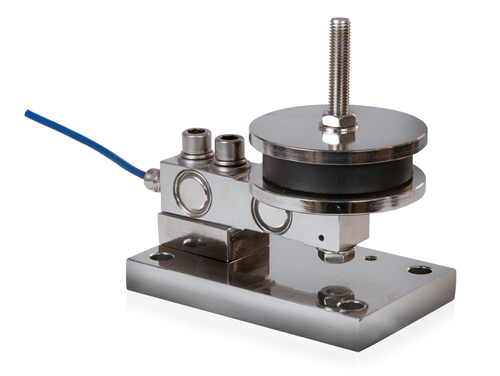

The LA85 is an anti-vibration weighing assembly, designed for use with the T85 (or T85-N) shear beam load cell, in harsh industrial environments. It is designed to prevent unwanted forces and vibrations from affecting the output of the load cell.

It consists of a stainless steel base plate mounted underneath the T85 load cell, with a natural rubber “silent block” pad mounted above the T85, connecting the load cell to the structure being weighed. All metallic hardware is stainless steel.

When combined with the T85 load cell (ordered separately) it is an ideal solution for high accuracy weighing of hoppers, tanks and mixers experiencing vibration during operation, especially legal-for-trade applications in harsh environments. An ATEX option is also available for hazardous areas.
