Features
- The LPBS is a four load cell compact mobile scale with rear stand for terminals and/or battery brackets
- Low profile design enabling operators to weigh products easily
- ATEX Model features Anti Static Castors, ATEX Rated Load Cells & Intrinsically Safe ATEX Rated Junction Box
- The LPBS is highly manoeuvrable due to the four swivel & braked stainless steel castors
- Lower cost of ownership due to long-term lifespan of the product and components fitted
- Lifetime warranty on the structural integrity of the fabrication, other components are covered for 5 years
| Material | 304 or 316 Stainless |
| Load Cells | Flintec SLB / IP67 OIML |
| Finish | Glass Bead Blast |
| Manufacturer | MWS Ltd |
| Price | From £2,995.00 |
Product enquiry

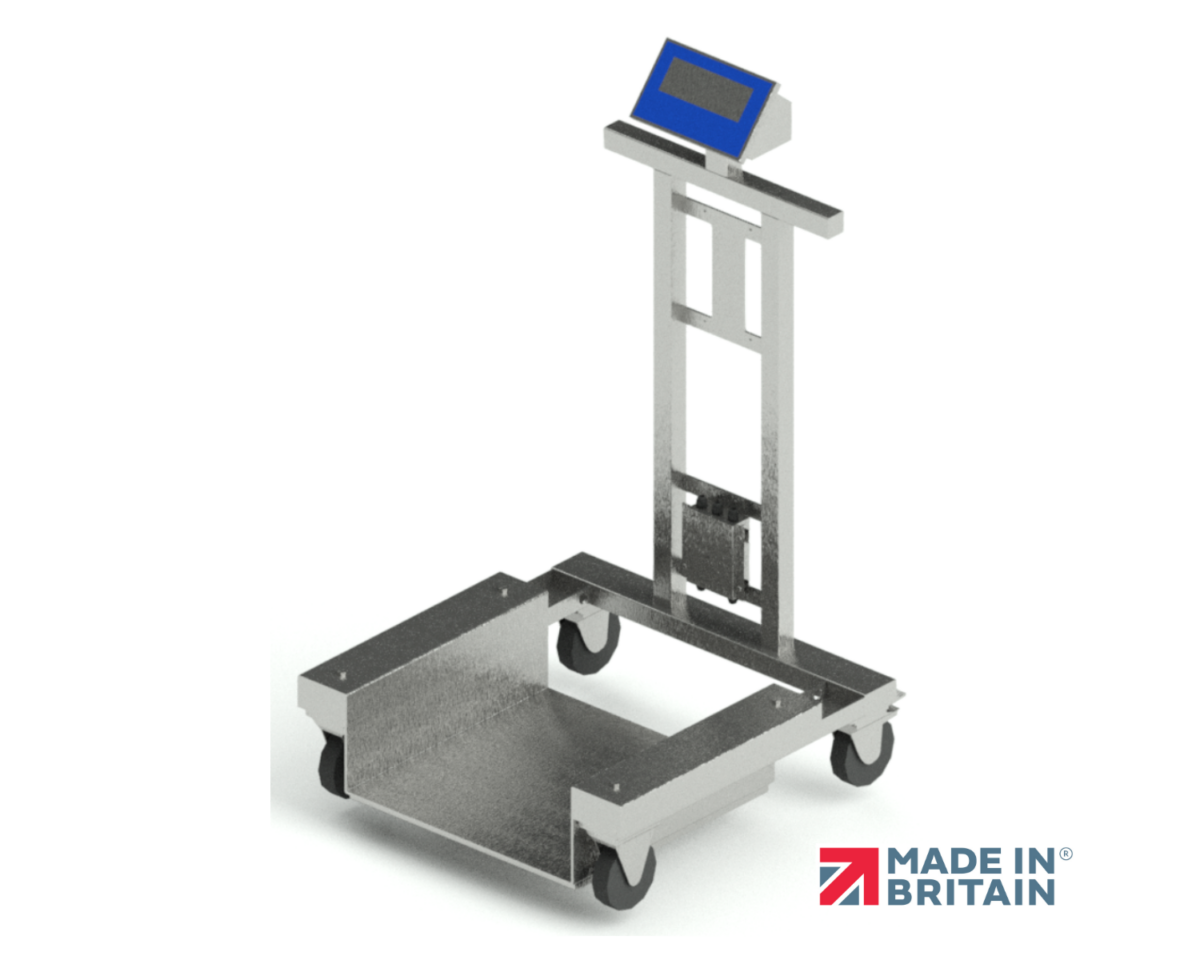

LPBS Low Profile Mobile Barrel Scale
Tell us where it's going and we'll come straight back with pricing, lead time and install options.
Additional Info
Manufactured in the UK by MWS, the LPBS is a precision-engineered weighing solution ideal for weighing barrels and drums. Featuring a four load cell configuration for accuracy and stability, its low-profile design facilitates effortless product weighing.
The ATEX model ensures safety in hazardous environments with Anti-Static Castors, ATEX Rated Load Cells, and an Intrinsically Safe ATEX Rated Junction Box. With four swivel and braked stainless steel castors, the LPBS offers exceptional manoeuvrability.
| Model | Weighing Area (mm) |
Load Height (mm) |
Footprint (mm) |
Max Capacity (kg) |
ATEX Rating |
| LPBS50 | 500 x 500 | 50 | 705 x 720 | 300 | N/A |
| LPBS75 | 750 x 750 | 50 | 955 x 970 | 300 | N/A |
| LPBS50A | 500 x 500 | 50 | 705 x 720 | 300 | 1 / 21 / 2 / 22 |
| LPBS75A | 750 x 750 | 50 | 955 x 970 | 300 | 1 / 21 / 2 / 22 |
| Options | ||||
| Custom Indicator Bracket (Universal Bracket as Standard) | ||||
| Upgrade to Flintec SB14 / IP69K Load Cells | ||||
| 316 Stainless Steel Material | ||||
| Electro Polish Finish | ||||
| Custom sizes, Heights & Construction |
