Features

  • Multi-frequency technology
  • Simple, functional electronics
  • Stable, safe and easily serviced mechanics
  • Conformity with standards
Power supply230v 50/60Hz
EnvironmentIP54-IP65
Capacity10000 pieces/minute
Inquire about "MDF11 Pharma Metal Detector"
  • This field is for validation purposes and should be left unchanged.

Additional Info

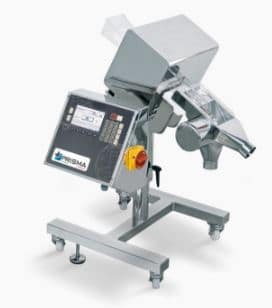

Pharma metal detector for small, high-flow loose pharmaceutical products, like tablets and capsules.

Metal detector MDF11 was specifically designed to meet the specific inspection requirements of the pharmaceutical sector. A tilted chute in inert material, easily removable and suitable for direct contact with the product, goes through the metal detector coil. Should metal contaminants be detected while the product is transiting, a flap is activated, which diverts the contaminant out of the production flow.

The multi-frequency electronics combined with advanced functions – like self-check, automatic calibration and tracking – guarantee top level performance, and fully meet the standards in force for Pharmaceutical Metal Detection Systems and the need to minimise false rejects.

The possibility of configuring both conveyor stop and the rejection and reject collection systems allows you to configure the machine based on the inspection needs and the available budget, always ensuring product safety and brand protection.

A wide range of available accessories allows you to configure the machine in the most suitable way to inspect the most common formats in the food sector like sacks, boxes and cardboard boxes of different shapes and sizes with no metal parts.
The transit aperture inner ring in food-safe plastic allows the machine to be used even with loose product.
