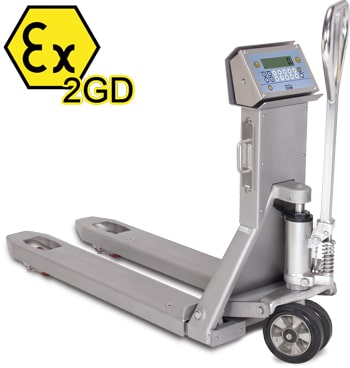

  • TPWX2GDI ATEX Pallet Truck Scale

Features

  • Equipped with 230Vac 50 Hz battery charger to be recharged in a safe area.
  • Power supply through extractable battery, rechargeable in safe zone.
  • 150-hour approximate operating time.
  • Bearing structure entirely in extra thick sheet steel.
  • Standard fitted with +/-160° swivelling column head.
ATEX Area Zone 1 / 21 / 2 / 22
Rating Ex II 2GD IIB T4 T197°C X
Fork Dimensions 1150 x 550 x 85 mm
Accuracy +/- 0.05% of capacity
IP Rating IP68
Inquire about "TPWI “EX” 2GD – ATEX Pallet Truck Scale"
  • This field is for validation purposes and should be left unchanged.

PDF Download

Additional Info

Pallet truck scales, with built-in electronic weighing, for dangerous areas classified as hazardous (ZONES 1 and 21 & 2 and 22) in accordance with Ex II 2G IIB T4 Gb X and Ex II 2D IIIC T197°C Db X.

The weight detection made with four Atex certified IP68 stainless steel load cells guarantees the best precision in any working environment.
Structure completely in STAINLESS steel. Manufactured, calibrated and adjusted in Italy by Dini Argeo, using certified sample masses.

Available also CE-M APPROVED.

The TPWX2GDI is a fully stainless steel ATEX pallet truck scale with a range of upgrade options such as wider forks, anti static wheels and parking brake.

Available versions
Code Max
(kg)
d
(kg)
(kg) d HR
(kg)*
TPW20IEX2GD 500/1000/2000 0.2/0.5/1 0.1/0.2/0.5
TPW20IEX2GDM 1000/2000 0.5/1

(*) The HR division is obtainable only with the relative EHR option
