- Top-level generator and sensor
- Safety for the product and the operator
- Stable, safe and easily serviced mechanics
- Advanced, intuitive electronics
- Documentation and Conformity with standards
Call us to arrange a free demo on 0845 340 4042
|Weighing range||up to 5000 g|
|Linear speed||up to 65 m/min|
|Throughput||up to 600 ppm|
|Climatic environment||from 5°C up to +35°C|
Inquire about "2XR11 X-ray Inspection System"

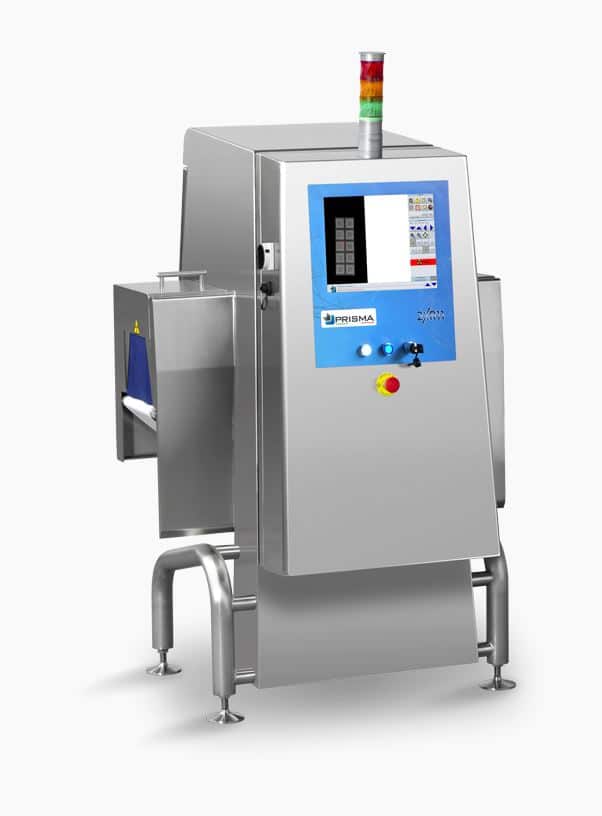

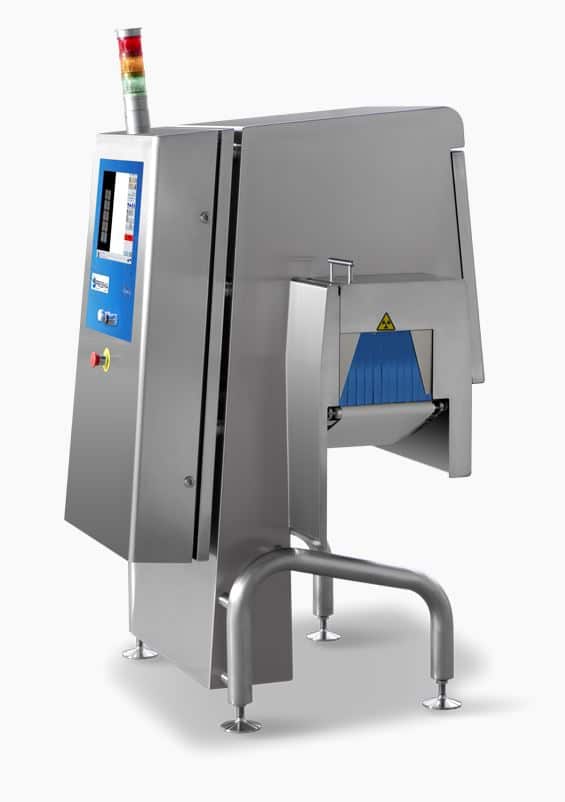

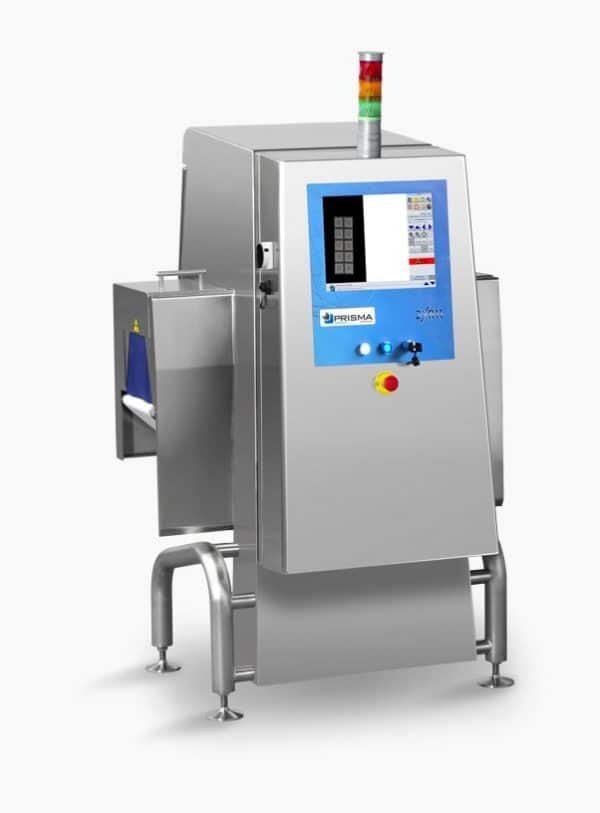

X-ray inspection for food products with a maximum capacity of 5000 g and dimensions up to 235 x 150 mm.
Top-level solution to inspect packaged products. At the highest level in terms of performances, longevity, safety and design, it presides with the maximum effectiveness the critical control points and is the best guarantee for the protection of your brand.
Top-level generator and sensor
High-end generator and sensor, three-years warranty. Low-energy radiation, for a better detection performance, lower maintenance, reduced consumption and safety of the operator as well as end-user at the highest market level.
Safety for the product and the operator

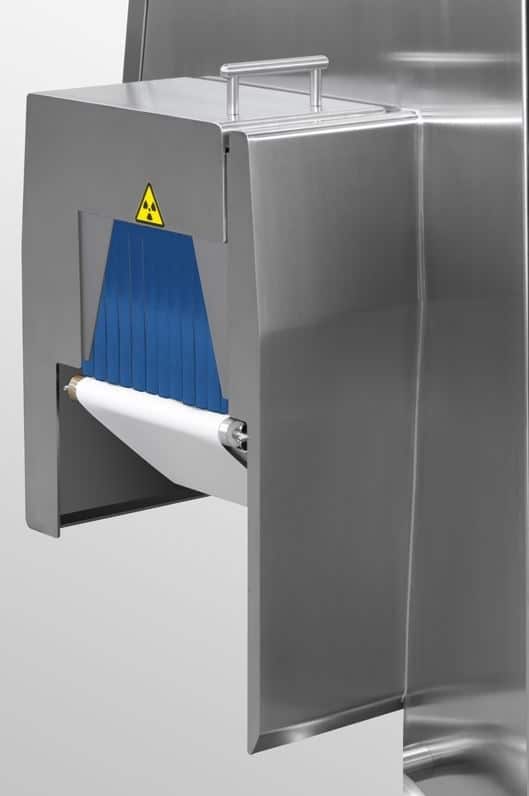

3 rows of protection curtains infeed and as many outfeed, all lead-free: emissions are certified below 1 μSv/h and completely contained inside the structure.
3 safety switches on the doors, an emergency stop button and a key switch which turns off the X-ray generator immediately. Moreover: on-screen warnings, start/stop switch, visual and acoustic alarms and inner cooling system.
Control panel and electronics (front) completely separated from the x-ray generator (back).
Stable, safe and easily serviced mechanics
The smooth design ensures sturdiness and stability, facilitating at the same time cleaning and sanitizing operations of the equipment. Entirely made of AISI 304 stainless steel for food and pharmaceutical industries.
Conveyor belt TPU approved for food use FDA e EU. The conveyor quick release system allows the belt to be replaced in extremely short times and without the need to remove the machine from the production line.
Advanced, intuitive electronics
Intuitive interface, easy in consultation as well as recipes setting.
Digital electronics with 15″ color TFT display with touch screen panel (IP69), with 3-level password protected access, remote input / output on Ethercat protocol, self-check function, event history and rejections log. All the models can be equipped with Ethernet and USB interfaces to transmit data.
Documentation and Conformity with standards
Thanks to the certified safety of the equipment, NEITHER “classified zones”, NOR classification of personnel as “exposed worker”, NOR periodic physical monitoring are required. Furthermore PRISMA provides all the documentation the Employer is in charge of, and that the latter just will have to send to the designated authorities. 2XR11 meets the ISO-FDA HACCP standard, the main directives and complies with customer guidelines and standards (including, among others: BRC and Marks & Spencer).
35 years of inspection and quality control: an experience that comes to life in every new model that is designed and built in our establishments.
Italian passion for quality is reflected in every machine detail. The attention to every detail, guided by thirty years of experience, is the real added value of PRISMA machines. Finished down to the last detail and made entirely of stainless steel, it is able to withstand intense washing cycles, which can be done extremely quickly, thanks to the quick-disassembly conveyors.
Performance and Versatility
Our machines meet high levels of performance and product interchangeability; and wherever they are unable to reach, we can design a tailored system for every requirement.
Return on Investment
Imagine how much you can save with a machine that does not waste product, generate false rejects or force production standstills and that protects the brand. Savings that extend over the years, thanks to the high quality of the materials and the longevity of the machine, which are at top market levels. Our sales team knows how to find the solution that best suits any type of budget and expected financial return.
