  • ATEX DPS Pit Scale

Features

  • Heavy duty box section frame
  • Unrivaled strength due to design, built to last
  • Designed and manufactured by MWS Ltd
  • Optional pit mounting kits for locating in the ground
  • Optional upgrade for weighing forklift trucks.
  • ATEX EU Declaration of Conformity supplied with this model when used with ATEX terminal
MWS can create bespoke, turn-key solutions, so if you don't see what you're looking for, speak to us today about a custom design
Manufacturer MWS Ltd
Material 304 Stainelss Steel
Finish Bead Blast
Size 750 x 750mm to 3000 x 2000mm
Capacity 300kg to 6000kg
ATEX Rating Zone 1/2 , 21/22
Inquire about "ATEX DPS Stainless Steel Pit Scale"
  • This field is for validation purposes and should be left unchanged.

PDF Download

Additional Info

The ATEX DPS range is designed and manufactured in the UK by MWS. They are assembled using 304 stainless steel and high quality components sourced in the UK.

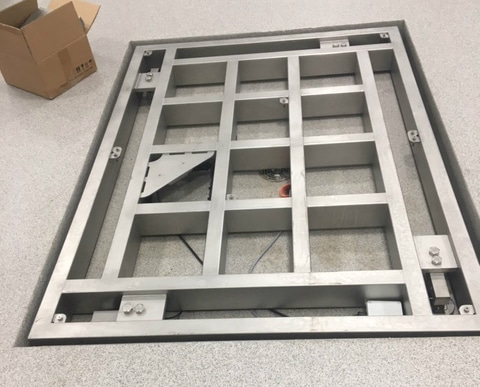

The ATEX DPS is built using RHS steel for strength and hygiene. The frame design allows for the potential to upgrade the strength in areas where a forklift truck is present.

The ATEX DPS range is manufactured to order and can be designed to suit existing pits or built to specific dimensions.

The ATEX DPS pit scale is rated to Zone 1/21 and Zone 2/22. The units are supplied with Flintec ATEX / IECEx rated load cells, a stainless steel Intrinsically safe Junction box and Intrinsically safe cable. This model can be supplied with a range of our ATEX weight indicators or load cell amplifiers via Zener Barriers.

Model Size Platform Height Capacity Load Cell
DPS75ATEX 750 x 750 mm 120 mm 300 – 1,000 kg Flintec SB14
DPS1010ATEX 1000 x 1000 mm 120 mm 300 – 1,500 kg Flintec SB14
DPS1212ATEX 1250 x 1250 mm 120 mm 300 – 3,000 kg Flintec SB14
DPS1515ATEX 1500 x 1500 mm 120 mm 300 – 3,000 kg Flintec SB14
DPS2020ATEX 2000 x 2000 mm 120 mm 300 – 3,000 kg Flintec SB14
DPS/SP/ATEX Bespoke Sizes TBC 300 – 6,000 kg Flintec SB14
