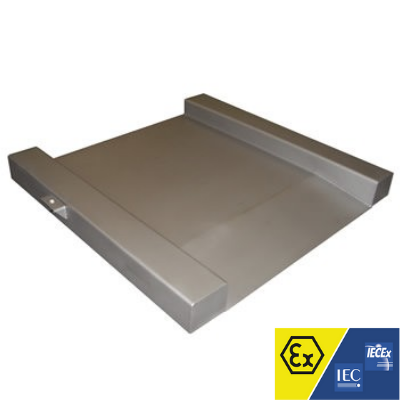

  • ATED Drive Through Floor Scale

Features

  • Safer and easier operator use with low loading deck
  • Designed for food area hygiene and safety
  • Fitted with four SLB IP67 Load Cells
  • Manufactured in the UK by MWS
  • ATEX EU Declaration of Conformity supplied with this model when used with ATEX terminal
MWS can create bespoke, turn-key solutions, so if you don't see what you're looking for, speak to us today about a custom design
Material 304 Stainless Steel
Finish Bead Blast
Capacity Range 150 - 1000Kg
Sizes 750 x 750mm or 1000 x 1000mm
Upgrades Back Rail / ATEX
ATEX Rating Zone 1/2 , 21/22
Inquire about "ATEX DTSR Low Profile Scale"
  • This field is for validation purposes and should be left unchanged.

Additional Info

The ATEX DTSR range of Ultra Low Profile Platforms are designed for easy loading with the single ramp built into the scale for a compact all in one unit. The scale has an overall dimension of 750 x 750mm or 1000 x 1000mm.

The integral ramp is 250mm long and is 5mm from the floor at the leading edge.

This scale is very compact, taking up the minimum of floor space for its size. The scale base can be used with any one of the digital indicators shown on the left, If in doubt which would be most suited for your requirements, please call or email.

The ATEX DTSR scale is rated to Zone 1/21 and Zone 2/22. The units are supplied with Flintec ATEX / IECEx rated load cells, a stainless steel Intrinsically safe Junction box and Intrinsically safe cable. This model can be supplied with a range of our ATEX weight indicators or load cell amplifiers via Zener Barriers

Standard Models

Model Size Height Capacity Load Cell
DTSR75ATEX 750 x 750 mm 35 mm 300 – 600 kg Flintec SLB
DTSR80ATEX 800 x 800 mm 40 mm 300 – 600 kg Flintec SLB
DTSR1010ATEX 1000 x 1000 mm 50 mm 300 – 600 kg Flintec SLB
