  • GLF Closed


  • Much improved production area hygiene with lift up plate
  • Fully designed and manufactured in the UK by MWS Ltd
  • Low overall cost of ownership with MWS Ltd products
  • Top plate with a wide opening aperture for easiness of cleaning
  • Fitted with four Flintec SB14 IP68 stainless steel load cells
  • ATEX EU Declaration of Conformity supplied with this model when used with ATEX terminal
Manufacturer MWS Ltd (Made in UK)
Material 304 or 316 Stainless Steel
Capacity 300kg to 2000kg
Sizes 750 x 750mm to 1250 x 1250mm
Finish Bead Blast (Electro Polish Option)
Options Bespoke Sizes
ATEX Rating Zone 1/2 , 21/22
Inquire about "ATEX GLF Stainless Steel Floor Scale"
  • This field is for validation purposes and should be left unchanged.

Additional Info

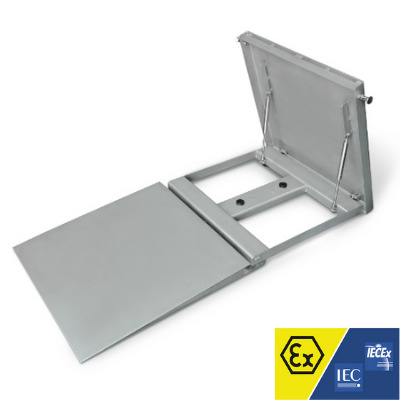

The ATEX GLF is a surface mount stainless steel scale that is designed and manufactured in Leicester by MWS, its main feature is a gas strut assisted top deck making routine cleansing in high risk areas easier. Every GLF is supplied with one ramp.

The ATEX GLF scale is rated to Zone 1/21 and Zone 2/22. The units are supplied with Flintec ATEX / IECEx rated load cells, a stainless steel Intrinsically safe Junction box and Intrinsically safe cable. This model can be supplied with a range of our ATEX weight indicators or load cell amplifiers via Zener Barriers


The ATEX GLF range is manufactured using 304 grade stainless steel (316L available upon request) box section and high end welding techniques the ATEX GLF is free from hidden crevices and holes that allow moisture to build up harbouring bacteria and parasites. The gas-assisted plate is hinged on one side and is safely operated by a single user. Fitted with IP68 load cells and junction box as standard guarantying that the ATEX GLF is a truly waterproof floor scale even washed down with a high pressure – high temperature jet wash.


A glass bead blast top and bottom is used to finish which gives an acceptable hygiene level for a majority of applications, however upon request a grained or electro polish finish can requested to improve the surface finish further.


The GLF can be specified for use with dolavs and trolleys, the optional addition of laser profiled side rails protect the operator from accidentally pushing items off the back or side of the scales.

Built to suit:

With any platform designed and manufactured by MWS there are a number of options and sizes available as standard, however a USP and key benefit of choosing MWS as a supplier is the ability to manufacture one-offs and systems to suit exact client specifications.

Standard Models

Model Size Height Capacity Load Cell
GLF75ATEX 750 x 750 mm 75 mm 300 – 1000 kg Flintec SB14
GLF1010ATEX 1000 x 1000 mm 75 mm 300 – 1000 kg Flintec SB14
GLF1212ATEX 1250 x 1000 mm 75 mm 300 – 2000 kg Flintec SB14
