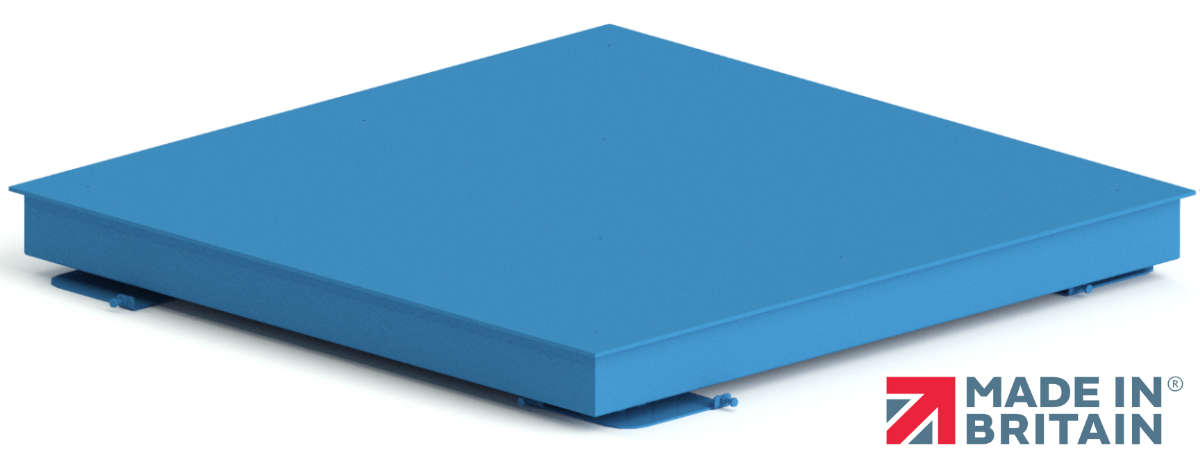

  • Mild steel pit mounted floor scale with removable top plate(s) - Forklift Truck Safe. Manufactured in the UK by MWS Ltd.

Features

  • The DFM is a tried and tested pit scale suitable for areas where Forklift Trucks are likely to drive over the scale
  • Fully welded frame structure made using 100 x 50mm box & 8mm deck plate with reinforced load cell plates
  • Lower cost of ownership due to longterm lifespan of the product and components fitted
  • Pit frame kit includes a 50 x 50mm angle frame and four pit location plates
  • Fast and easy to install
  • Lifetime warranty on the structural integrity of the fabrication
  • 5 year warranty on components
Material Mild Steel
Finish Powder Coat
Size 1250 x 1250mm to 3000 x 2000mm
Max Capacity 6000kg
Manufacturer MWS Ltd
Load Cells Flintec SB4 / IP67 OIML R60
Price From £5,295
Inquire about "DFM Mild Steel Pit Scale"
  • This field is for validation purposes and should be left unchanged.

Additional Info

Introducing the DFM Mild Steel Pit Mounted Floor Scale, a robust and reliable weighing solution designed for areas with frequent forklift truck activity.

The DFM features a fully welded frame structure crafted from high-quality 100 x 50mm box and an 8mm deck plate, ensuring durability and stability in demanding industrial environments. The reinforced load cell plates contribute to the scale’s accuracy and resilience.

The pit frame kit, consisting of a 50 x 50mm angle frame and four pit location plates, facilitates a swift and straightforward installation process. Manufactured in the UK by MWS, the DFM reflects our commitment to delivering top-notch weighing equipment for diverse industries, including chemical, food, pharmaceutical, logistics, and the weighing industry itself.

Model Weighing Area
(mm)
Load Height
(mm)
Max Capacity
(kg)
DFM1212 1250 x 1250 160 6,000
DFM1515 1500 x 1500 160 6,000
DFM2015 2000 x 1500 160 6,000
DFM2020 2000 x 2000 160 6,000
DFM2512 2500 x 1250 160 6,000
DFM2515 2500 x 1500 160 6,000
DFM3015 3000 x 1500 160 6,000
DFM3020 3000 x 2000 160 6,000

Options

  • Location Plates (Stainless Steel) – Required for Installation in Existing Pits
  • Bespoke Stanchions for use on Exiting Pits that are over standard depth
  • Upgrade to Flintec SB4 / IP69K Load Cells
  • Upgrade to IP69K Junction Box
  • ATEX Certified Load Cells & Intrinsically Safe Junction Box (JB4QAI)
  • Load Cell Cable Option from 5–25m (Price per Metre)
  • Alternative RAL powder coat colours
  • Custom sizes, Heights & Construction
