Features
- The DFS is a tried and tested pit scale suitable for areas where Forklift Trucks are likely to drive over the scale
- Fully welded frame structure made using 100 x 50mm box & 8mm deck plate with reinforced load cell plates
- Lower cost of ownership due to longterm lifespan of the product and components fitted
- Pit frame kit includes a 50 x 50mm angle frame and four pit location plates
- Fast and easy to install
- Lifetime warranty on the structural integrity of the fabrication
- 5 year warranty on components
| Material | 304 Stainelss Steel |
| Finish | Glass Bead Blast |
| Size | 1250 x 1250mm to 3000 x 2000mm |
| Max Capacity | 6000kg |
| Manufacturer | MWS Ltd |
| Load Cells | Flintec SB5 / IP67 OIML |
| Manufacturer | MWS Ltd |
| Price | Starting at £7,430 |
Inquire about "DFS Stainless Steel Pit Scale"
Additional Info

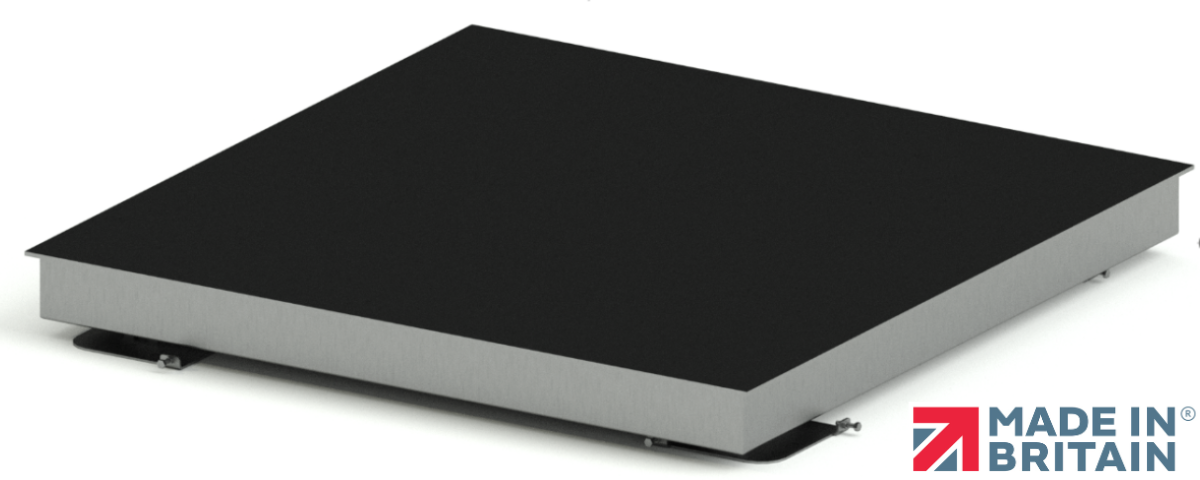

Introducing the DFS Stainless Steel Pit Mounted Floor Scale, a robust and reliable weighing solution designed for areas with frequent forklift truck activity.
The DFS features a fully welded frame structure crafted from high-quality 100 x 50mm box and an 8mm deck plate, ensuring durability and stability in demanding industrial environments. The reinforced load cell plates contribute to the scale’s accuracy and resilience.
The pit frame kit, consisting of a 50 x 50mm angle frame and four pit location plates, facilitates a swift and straightforward installation process. Manufactured in the UK by MWS, the DFS reflects our commitment to delivering top-notch weighing equipment for diverse industries, including chemical, food, pharmaceutical, logistics, and the weighing industry itself.
| Model | Weighing Area (mm) |
Load Height (mm) |
Max Capacity (kg) |
| DFS1212 | 1250 x 1250 | 160 | 6,000 |
| DFS1515 | 1500 x 1500 | 160 | 6,000 |
| DFS2015 | 2000 x 1500 | 160 | 6,000 |
| DFS2020 | 2000 x 2000 | 160 | 6,000 |
| DFS2512 | 2500 x 1250 | 160 | 6,000 |
| DFS2515 | 2500 x 1500 | 160 | 6,000 |
| DFS3015 | 3000 x 1500 | 160 | 6,000 |
| DFS3020 | 3000 x 2000 | 160 | 6,000 |
Options
- Location Plates (Stainless Steel) – Required for Installation in Exisiting Pits
- Bespoke Stanchions for use on Existing Pits that are over standard depth
- Upgrade to Flintec SB4 / IP69K Load Cells
- Upgrade to IP69K Junction Box
- ATEX Certified Load Cells & Intrinsically Safe Junction Box (JB4QAI)
- Load Cell Cable Option from 5–25m (Price per Metre)
- 316 Stainless Steel Material
- Electro Polish Finish
- Custom sizes, Heights & Construction
