Features

  • Waterproof 17-key functional keypad.
  • Backlit LCD display with 6 25-mm high contrast digits and with indication of active functions.
  • Suitable for use on the table, or wall.
  • ATEX II 3D Ex tc IIIC T85°C Dc IP68 X for dust.
  • ATEX II 3G Ex nR IIC T6 Gc X for gases
Price$125.00
PowerMains or Battery
ATEX ZoneZone 2 / 22
HousingIP68 stainless steel case
Inquire about "DFW ATEX3GD"
  • This field is for validation purposes and should be left unchanged.

Additional Info

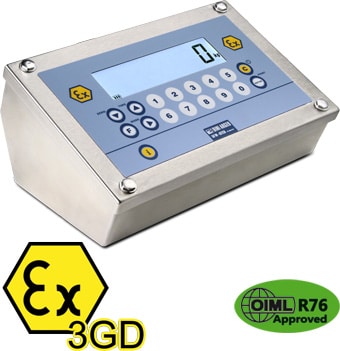

Weight indicator for areas classified as hazardous with protection methods according to:
ATEX II 3G Ex nR IIC T6 Gc X for gases
ATEX II 3D Ex tc IIIC T85°C Dc IP68 X for dust.
Ideal for creating weighing systems, batching, and automation systems. CE-M approvable (OIML R-76 / EN 45501).

KEYBOARD:
Zeroing, Automatic tare, Presettable tare, printing and/or data transmission, selectable function command, on/off switching, database of 30 tares, 2 Numeric IDs, keyboard lock, repetition of last printout made.

SELECTABLE FUNCTIONS:
– High Resolution Weighing x 10.
– Net/Gross or lb/kg conversion.
– Accumulation.
– Formula weighing.
– +/- Checkweighing.
– Percentage weighing.
– Approved transmission of the weight to PC/PLC (with Alibi memory ALMEM option).
– Counting(Max. resolution of 1.500.000 divisions).
– In/Out Truck weighing.
– Hold.
– Set Point Control (with DFIO option).
