  • DPM Mild Steel Pit Scale manufactured by MWS in the UK


  • The HCPS is robust enough to meet even the most arduous of environments
  • Built using heavy duty box section to create a frame that provides a strength by design structure
  • Lower cost of ownership due to longterm lifespan of the product and components fitted
  • Optional pit mounting kit allows the HCPS to be installed into the ground easily
  • Fast and easy to install
  • Lifetime warranty on the structural integrity of the fabrication
  • 5 year warranty on components
Material Mild Steel
Finish Powder Coat
Size 750 x 750mm to 2500 x 1500mm
Capacity 600kg to 3000kg
Manufacturer MWS Ltd
Load Cells Flintec SLB / IP67 OIML R60
Price From £2,490
Inquire about "DPM Mild Steel Pit Scale"
  • This field is for validation purposes and should be left unchanged.

Additional Info

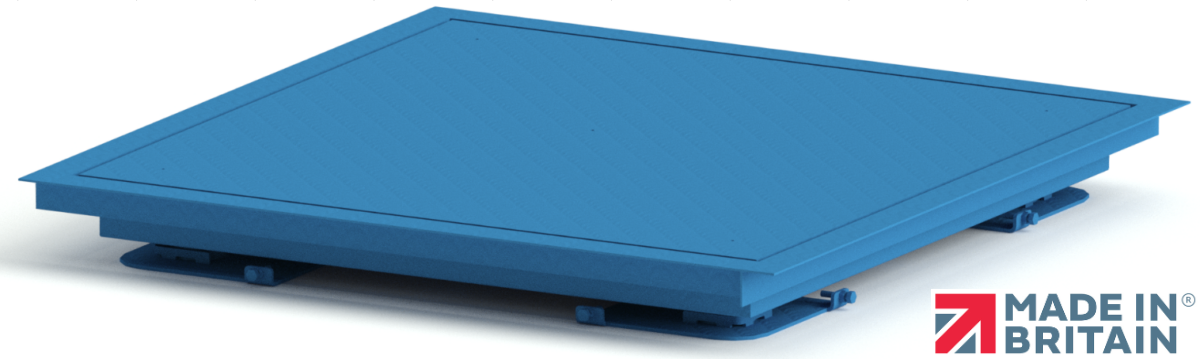

Introducing the DPM mild steel pit mounted floor scale from MWS. Engineered to excel in the toughest environments, the DPM boasts a robust construction built with heavy-duty box section, ensuring a strength by design structure that can withstand even the most arduous conditions. With an optional pit mounting kit, the DPM offers easy installation into the ground, providing a seamless and space-efficient solution.

Proudly manufactured in the UK by MWS, the DPM is made to order, offering the flexibility to tailor it to specific dimensions or seamlessly integrate into existing pits. Trusted for reliable and accurate weighing in industries ranging from chemical and food to pharmaceuticals and logistics.

Model Weighing Area
Load Height
Max Capacity
DPM75 750 x 750 120 600
DPM1010 1000 x 1000 120 1,500
DPM1210 1250 x 1000 120 3,000
DPM1212 1250 x 1250 120 3,000
DPM1512 1500 x 1250 120 3,000
DPM1515 1500 x 1500 120 3,000
DPM1812 1800 x 1250 120 3,000
DPM2015 2000 x 1500 150 3,000
DPM2020 2000 x 2000 150 3,000
DPM2515 2500 x 1500 150 3,000


  • Foot Location Plates (Stainless Steel)
  • Upgrade to Flintec SB14 / IP69K Load Cells
  • Upgrade to IP69K Junction Box
  • ATEX Certified Load Cells & Intrinsically Safe Junction Box (JB4QAI)
  • Load Cell Cable Option from 5–25m (Price per Metre)
  • Alternative RAL powder coat colours
  • Custom sizes, Heights & Construction
