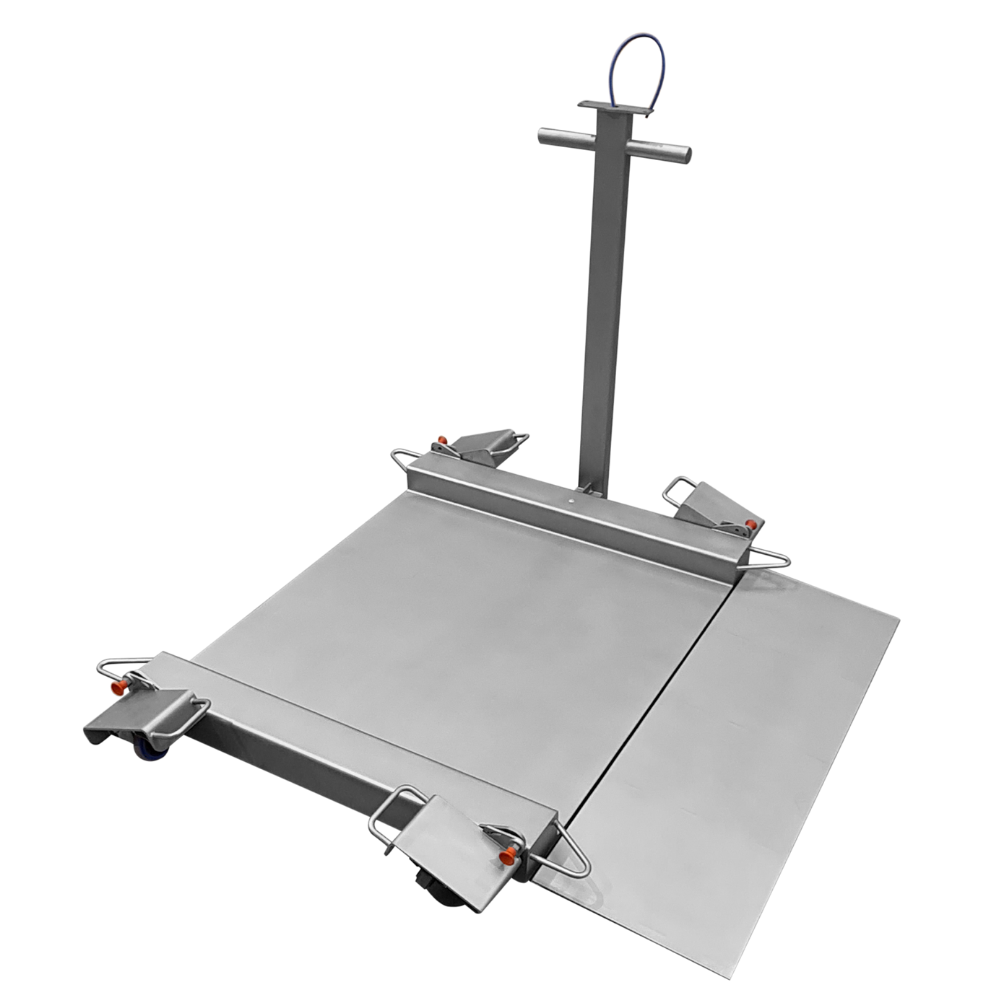

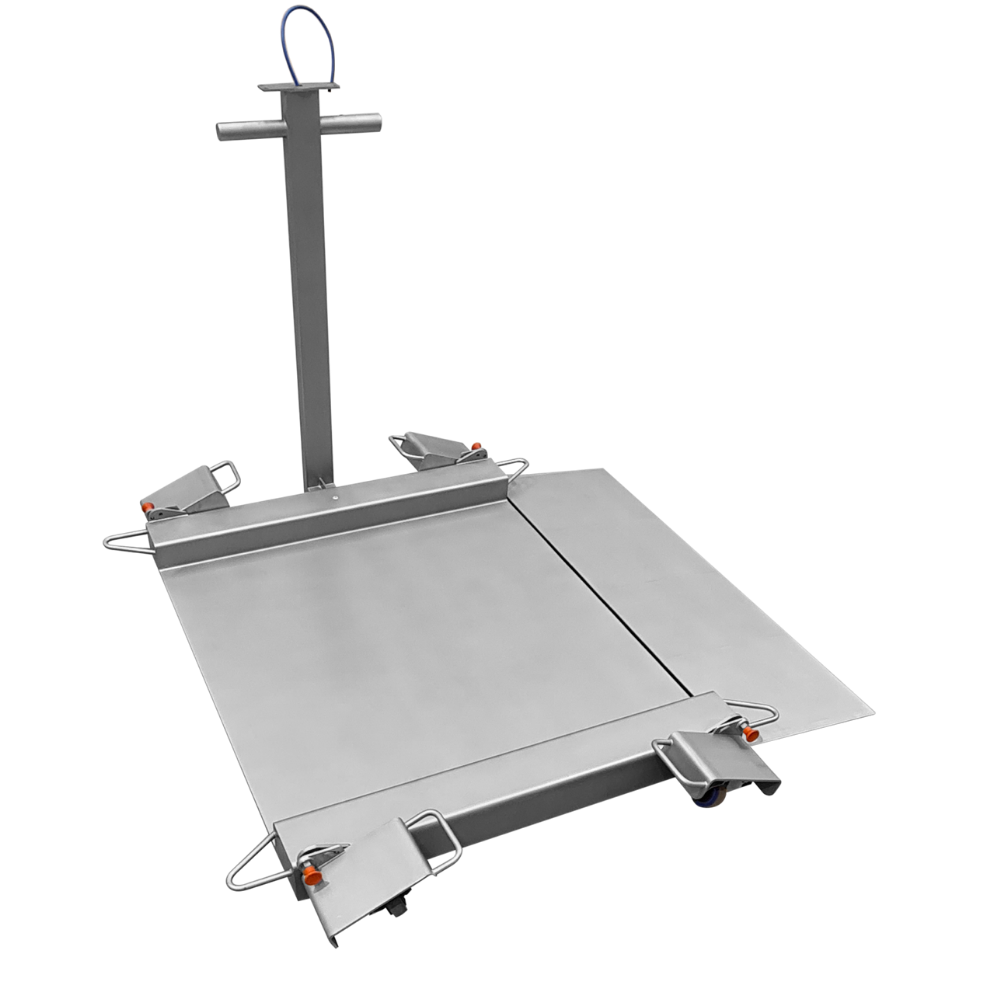

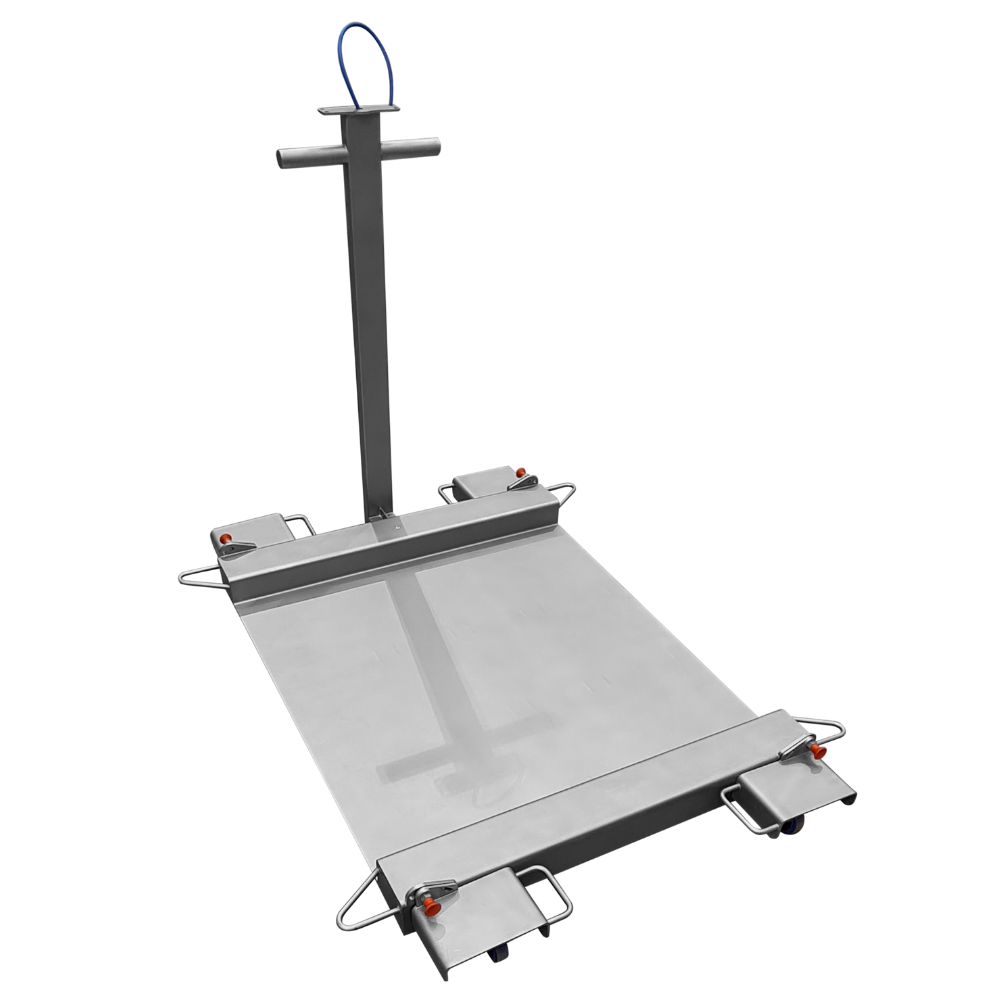

  • DTSP Stainless Steel Mobile Drive Through Scale

Customer Benefits

  • Designed for easy weighing of dolavs, racks and trolleys in manufacturing industries

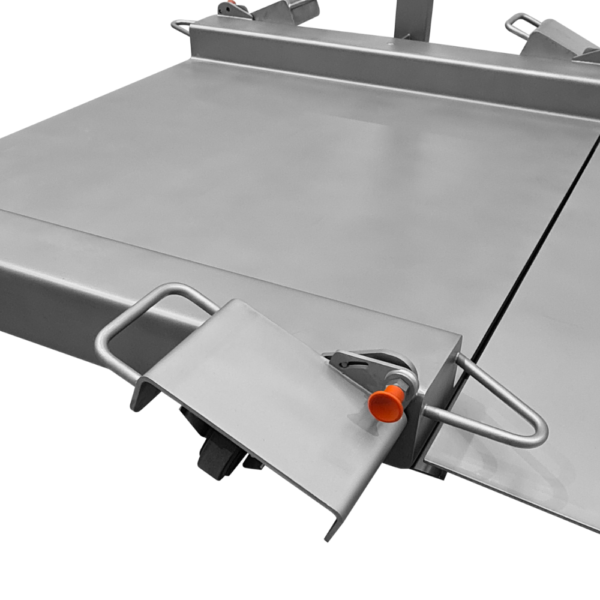

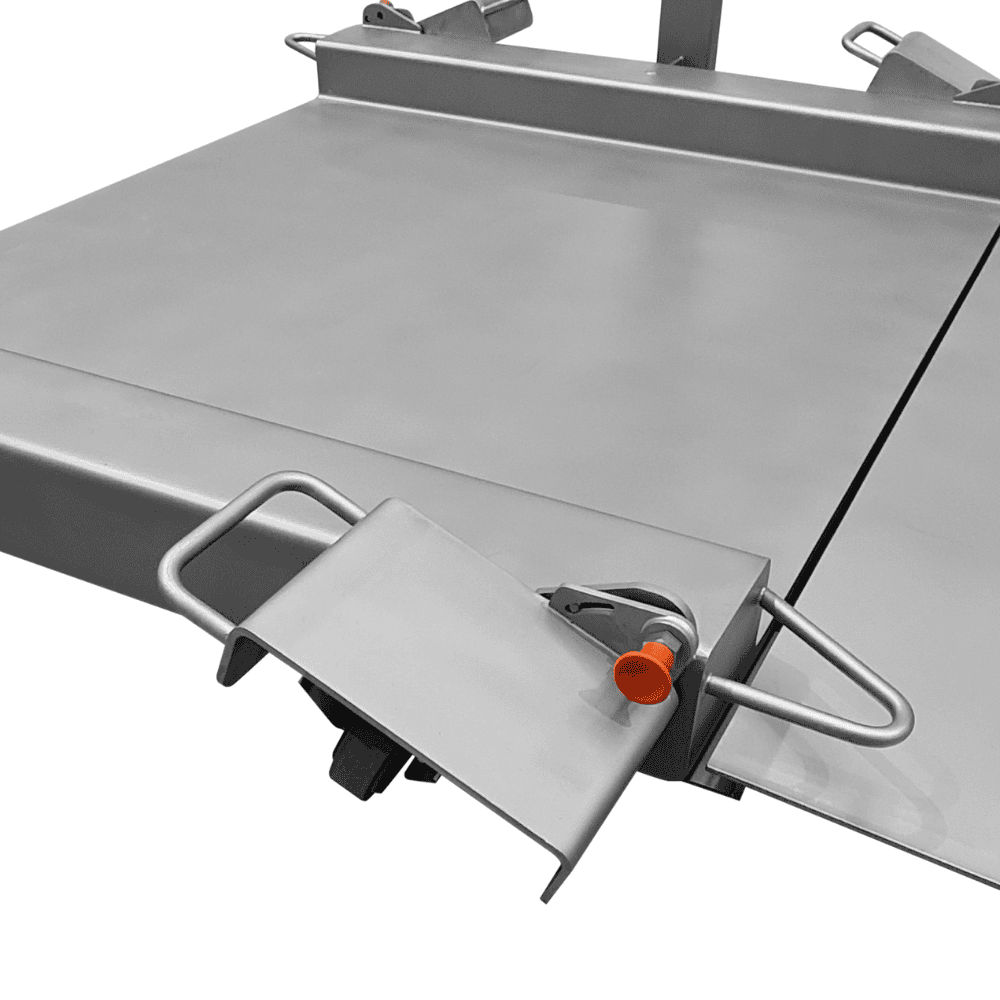

  • The DTSP has four fold down swivel castors that lock into place to enable quick and easy relocation
  • The main fabrication structure is folded from a single piece of stainless steel for extra strength and total flatness
  • Lifting handles double as ramp guides for trolleys
  • Lifetime warranty on the structural integrity of the fabrication. Other components are covered for 5 years.
MWS can create bespoke, turn-key solutions, so if you don't see what you're looking for, speak to us today about a custom design
Material 304 or 316 Stainless
Standard Finish Bead Blast
Capacity Range 150 - 1500Kg
Sizes 800 x 600mm to 1500 x 1500mm
Upgrades ATEX / Bespoke Sizes
Manufacturer MWS Ltd
Price From £5,995.00
Inquire about "DTSP Portable Drive Through Scales"
  • This field is for validation purposes and should be left unchanged.

PDF Download

Additional Info

The DTSP range of drive through scales is designed and manufactured in Leicester by MWS. Its main feature is a low profile weighing deck with fold down castors for easier moving around site. The Terminal pillar doubles up as a handle to make the DTSP easy to move.

The DTS design ensures the unit is strong enough to cope with loads up to 1500kg yet remains less than 50mm high and is light enough to move.

The DTSP is manufactured in 304 grade stainless steel (316L available upon request) and is suitable for use in areas where there is an abundance of moisture. It is fitted with IP68 load cells and junction box as standard, making the DTSP a truly waterproof floor scale built for the rigours of the food and chemical industry.

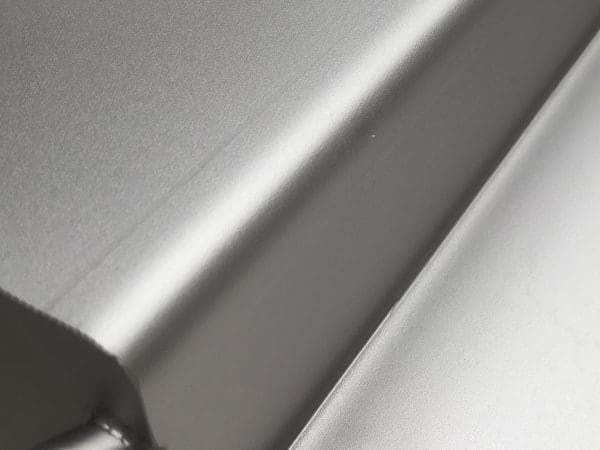

A glass bead blast top and bottom is used to finish, which is hygienic for a majority of applications. A grained or electro polish finish can be included on request which can improve the surface finish.

Standard Models

Model Size Height Capacity Load Cell
DTSP08 800 x 800 mm 40 mm 300 – 600 kg Flintec SLB
DTSP10 1000 x 1000 mm 40 mm 300 – 600 kg Flintec SLB
DTSP12 1250 x 1000 mm 50 mm 300 – 1,500 kg Flintec SLB
DTSP15 1500 x 1500mm 50 mm 300 – 1,500 kg Flintec SLB
