  • EZ Drive In Scale

Features

  • Made of 304 stainless steel
  • Rustproof, robust gas absorbers
  • IP69K Load Cells
  • 316 Stainless Steel Option
  • Supplied with 1 ramp
MWS can create bespoke, turn-key solutions, so if you don't see what you're looking for, speak to us today about a custom design
IP Rating IP69K
Warranty 5 Years
Capacity 300 to 1500kg
Material 304 Stainless Steel
Inquire about "EZ Lift Drive In Floor Scale"
  • This field is for validation purposes and should be left unchanged.

Additional Info

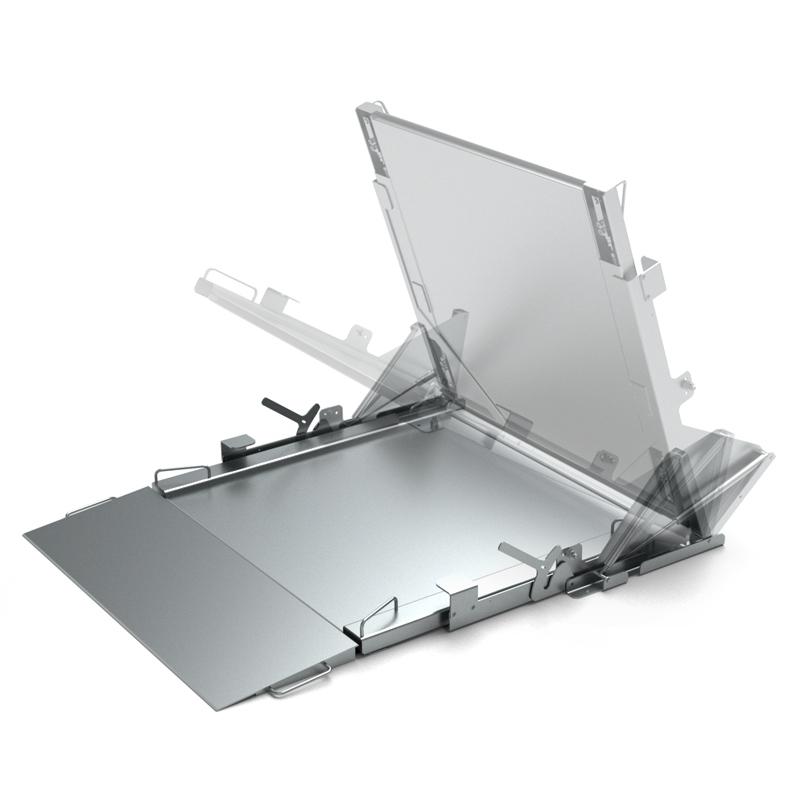

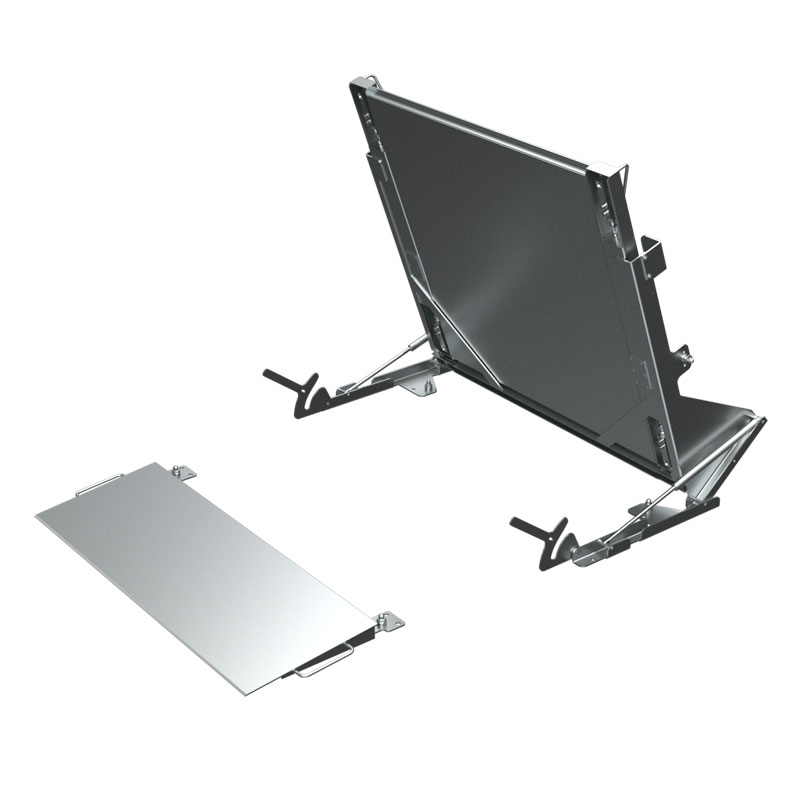

Gas-Assisted Top Plate Lifting Mechanism

The EZ Lift Drive-In Scale features a low-profile platform combined with a rugged, gas-assisted top plate lifting mechanism, designed to enable routine cleaning and maintenance to be carried out safely and efficiently.

The assisted gas lift assembly allows the platform to be raised easily by a single operative, providing fast and unobstructed access to internal components for cleaning, inspection and servicing. The system is specifically designed to improve health and safety by eliminating the need for physical exertion or additional lifting equipment.

The gas-assisted mechanism delivers smooth and controlled movement when opening and closing the platform, helping to protect load cells, cabling and other internal components from shock or damage. This controlled action also reduces wear on hinges and structural elements, contributing to long-term reliability.

Once cleaning or maintenance is complete and the platform is lowered back into position, the scale is immediately ready to carry out measurement. There is no requirement for recalibration following the lifting and lowering procedure, ensuring minimal disruption to workflow.

Robust stainless steel gas absorbers ensure failure-free operation throughout the entire life cycle of the system, even in demanding industrial environments.

The EZ Lift Drive-In Scale is intended for applications with high hygiene standards, where frequent cleaning using high-pressure water and aggressive cleaning agents is required. It is ideally suited for use within the food, pharmaceutical and chemical industries.

Key Benefits

  • Low-profile drive-in platform with integrated gas-assisted lift mechanism

  • Safe, single-operator lifting for routine cleaning and maintenance

  • No physical exertion or additional lifting equipment required

  • Smooth, controlled lifting and lowering protects internal components

  • Scale ready for use immediately after lowering, with no recalibration required

  • Stainless steel gas absorbers for long-term, failure-free operation

  • Designed for high wash-down environments with harsh cleaning agents

  • Ideal for food, pharmaceutical and chemical industry applications
