GLM Benefits

  • Much improved production area with lift up plate
  • Low overall cost of ownership with MWS Ltd products
  • Optional low profile model for fitting into existing shallow pits
  • Top plate with a wide aperture for easiness of cleaning
  • Fitted with four Flintec SLB IP67 stainless steel load cells

Call us to arrange a free demo on 0845 340 4042

  • Material
  • Capacity
  • Sizes
  • Finish
  • Options
  • Mild Steel
  • 300kg to 3,000kg
  • 750 x 750mm to 2000 x 1500mm
  • RAL5015 Powder Coat
  • Bespoke Sizes / ATEX Upgrade

Inquire about this product We will respond shortly

Additional Info

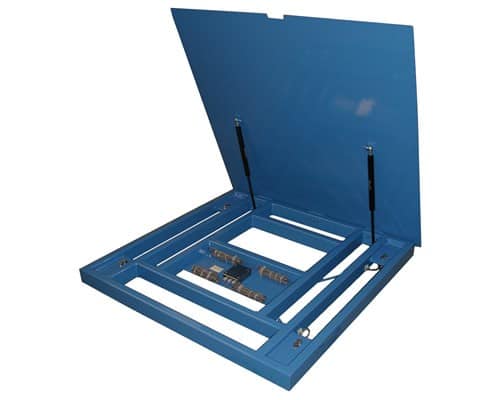

The GLM is a below ground pit mounted mild steel scale that is designed and manufactured in Leicester by MWS, its main feature is a gas strut assisted top deck making routine cleansing in areas where build up of debris is common such as despatch areas and loading docks. Cleaning of the pit scale is made easier and safer loading by operators due to being flush with the existing floor structure.

Construction:

The GLM model is manufactured from RHS mild steel section with a 3mm wall, the scale is finished with a RAL5015 epoxy powder coat for durability, fitted with IP67 Flintec load cells the GLM remains waterproof for potentially wet environments.

Options:

The GLM can be specified for use in areas where forklift trucks operate, extra steel is incorporated to strengthen the platform further and higher capacity load cells used to prevent damage caused by overloading.

Built to suit:

With any platform designed and manufactured by MWS there are a number of options and sizes available as standard, however a USP and key benefit of choosing MWS as a supplier is the ability to manufacture one-offs and systems to suit exact client specifications, these can include options such as unique platform sizes and pit mounting kits that enable the GLM to be installed in pre-existing holes from previous installations, this can eradicate costly civil engineering work and probable production down time on factory floors while works are carried out.
