Features
- The HCPS is robust enough to meet the needs of even the most arduous of environments
- Built using a heavy duty box section to create a frame that provides a strength by design structure
- Lower cost of ownership due to longterm lifespan of the product and components fitted
- Optional pit mounting kit allows the HCPS to be installed into the ground easily
- Lifetime warranty on the structural integrity of the fabrication. Other components are covered for 5 years.
| Material | 304 Stainless Steel |
| Finish | Glass Bead Blast |
| Capacity | 3,000 to 12,000kg |
| Sizes | 1500 x 1500mm to 3000 x 2000mm |
| Load Cells | Flintec SB5 / IP67 OIML R60 |
| Manufacturer | MWS Ltd |
| Price | Starting at £6,700 |
Inquire about "HCPS Heavy Duty Floor Scale"
Additional Info

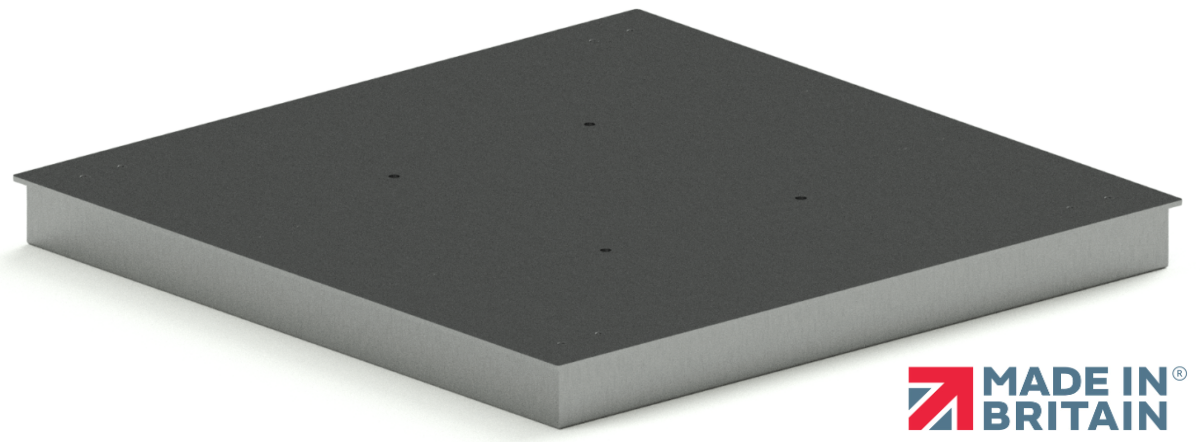

The HCPS is a heavy duty stainless steel floor scale, robust enough to meet even the most arduous of environments.
Built using heavy duty box section to create a frame, the HCPS is “a strength by design” structure.
| Model | Weighing Area (mm) |
Load Height (mm) |
Plate Thickness (mm) |
Max Capacity (kg) |
| HCPS1515/6T | 1500 x 1500 | 120 | 5 | 6,000 |
| HCPS2015/6T | 2000 x 1500 | 120 | 5 | 6,000 |
| HCPS2020/6T | 2000 x 2000 | 120 | 5 | 6,000 |
| HCPS2512/6T | 2500 x 1250 | 120 | 5 | 6,000 |
| HCPS2515/6T | 2500 x 1500 | 120 | 5 | 6,000 |
| HCPS3015/6T | 3000 x 1500 | 120 | 5 | 6,000 |
| HCPS3020/6T | 3000 x 2000 | 120 | 5 | 6,000 |
| HCPS1515/12T | 1500 x 1500 | 150 | 8 | 12,000 |
| HCPS2015/12T | 2000 x 1500 | 150 | 8 | 12,000 |
| HCPS2020/12T | 2000 x 2000 | 150 | 8 | 12,000 |
| HCPS2512/12T | 2500 x 1250 | 150 | 8 | 12,000 |
| HCPS2515/12T | 2500 x 1500 | 150 | 8 | 12,000 |
| HCPS3015/12T | 3000 x 1500 | 150 | 8 | 12,000 |
| HCPS3020/12T | 3000 x 2000 | 150 | 8 | 12,000 |
Options
- Foot Location Plates (Stainless Steel)
- Upgrade to Flintec SB4 / IP69K Load Cells
- Upgrade to IP69K Junction Box
- ATEX Certified Load Cells & Intrinsically Safe Junction Box (JB4QAI)
- Load Cell Cable Option from 5–25m (Price per Metre)
- 316 Stainless Steel Material
- Electro Polish Finish
- Custom sizes, Heights & Construction
