Features
- NEMA Type 4X, 304 stainless steel housing and enclosure
- IP69 rated (IP69K optional) for washdown environments
- USB and Ethernet connectivity
- Easy operation with 7-inch color touch panel.
- Antistatic UHMW slider bed
- Variable speed, modular belt (up to 240 ft/min, depending on configuration)
- Adjustable foot pads or casters for easy positioning
- 9 programmable outputs and 8 configurable inputs for flexible integration
- Operating temperature: 14°F (-10°C) to 120°F (49°C); remote control: up to 130°F (54°C)
- Maximum operating altitude: 6,561 ft (2,000 m)
| Material | 304 Stainless Steel |
| Dust / water resistance specifications | IP69 (IP69K optional) |
| Connectivity | USB and Ethernet |
Product enquiry
Heavy Duty Metal Detectors
Tell us where it's going and we'll come straight back with pricing, lead time and install options.
Additional Info

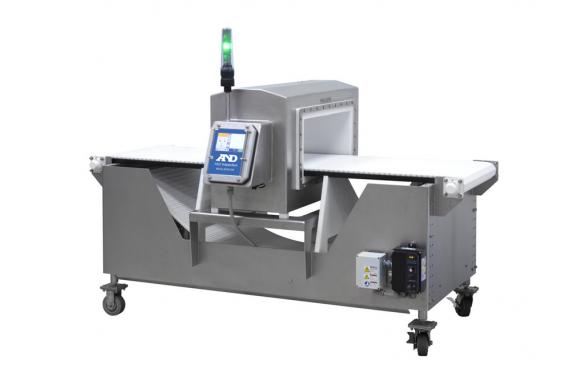

Heavy Duty Metal Detectors for Rugged Applications

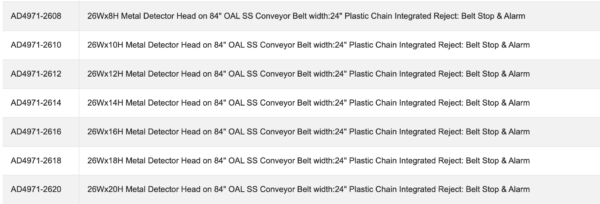

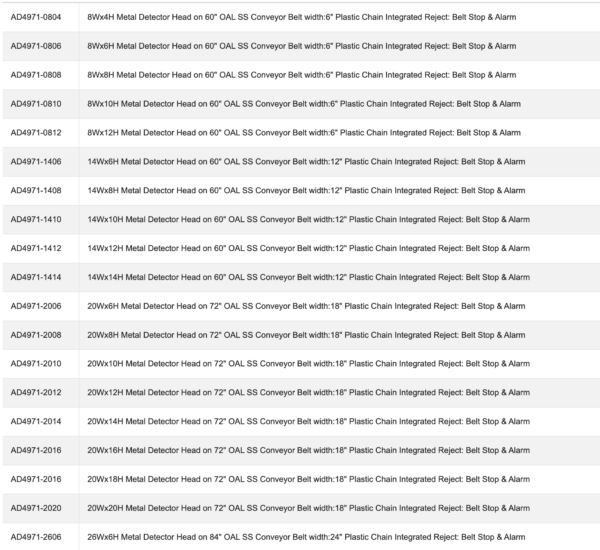

Built to withstand demanding environments, A&D’s Heavy Duty Metal Detectors feature a full washdown (IP69K) rating and come with an integrated conveyor belt. For a full list of available sizes, see below. Mechanical reject options are available upon request.
Designed for tough in-line detection tasks, these systems are ideal for direct food contact applications such as cheese, dairy, meat, poultry, and fish. With a fully removable belt and 304 stainless steel construction, cleaning is quick and hassle-free.
Connectivity: Easily transfer data via USB or Ethernet. The watertight, covered ports ensure protection during cleaning.
Food-Grade Washdown Design: Constructed with 304 stainless steel and sanitary welds, these systems are designed for easy disassembly, routine cleaning, and efficient maintenance. The scratch-resistant, shielded touchscreen and modular, variable-speed belt simplify cleaning operations, ensuring long-lasting performance in harsh conditions.
