Features

  • With an optional input/output module two weight thresholds can be monitored, e.g. for max. or min. values.
  • Optional transmission of all entered IDs, date, time and weight after each weighing cycle, data storage on the PC's hard disk.
  • Sealed membrane keyboard with tactile feedback.
  • Bright 5" (13 cm) color screen for indication of weight and operator prompts and calibration.
Display5" Colour Display
IP RatingIP65 Stainless steel
ATEX Zone2/22
Power110-230vac
Inquire about "IT3 Ex2/22"
  • This field is for validation purposes and should be left unchanged.

Additional Info

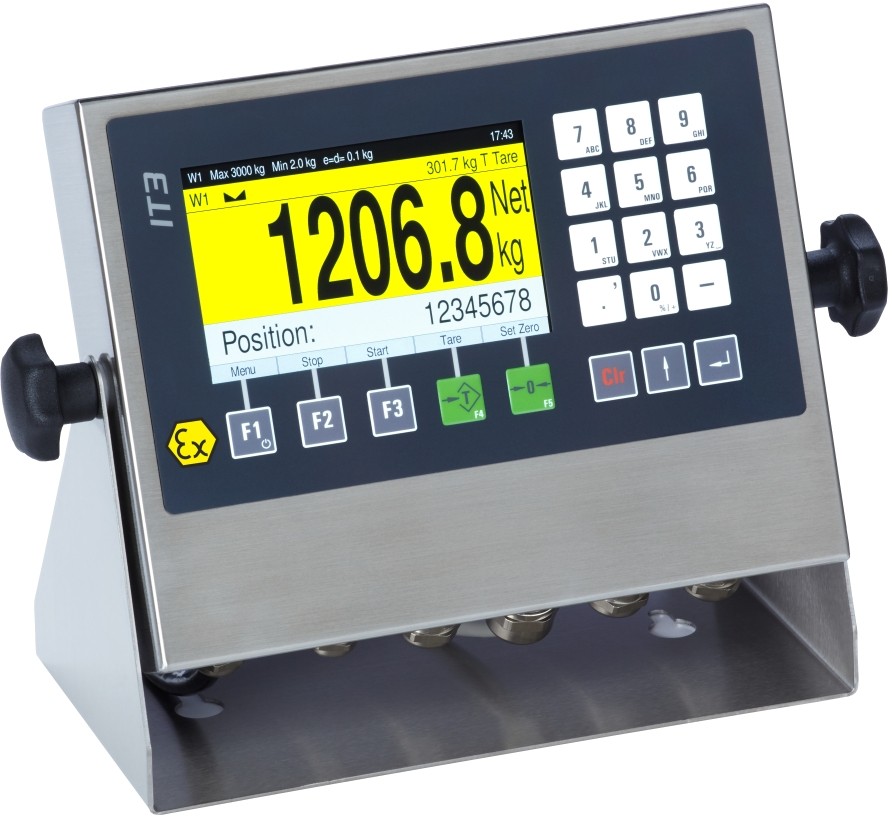

IT3 Ex2/22 weighing terminal is the successor of the IT3000, the weighing terminal that has been very successful for more than ten years. Just as its predecessor, IT3 Ex2/22 provides a variety of preinstalled standard applications, which make it the right choice not only for weighing and data capturing, but also for one- or two-speed filling with tare check and preact optimization, checkweighing and truck scale installations.

The 5″ (127 mm) high-contrast, high-resolution color display provides a weight display with a height of 32 mm, clearly readable from a distance, and an additional display line for messages or operator prompts and entries. Together with keys for taring and zero setting, IT3 Ex2/22 features 5 softkeys whose program-dependent functions are indicated on the display. A numeric keypad is available for convenient entry of tare weights and values, it also permits the entry of texts.

ATEX Approval for installation in Ex zones 2 (gas) and zone 22 (dust).
