Features
- Maximum input voltage: 24Vdc.
- Maximum input current: 700mA.
- Maximum input load cell signal: 1000mV.
- Temperature effect: 50ppm/°C.
| IP Rating | IP67 |
| Material | ABS Plastic |
| Dimensions | 120 x 80 x 55mm |
Product enquiry
JBQA: ATEX Equalisation Junction Box
Tell us where it's going and we'll come straight back with pricing, lead time and install options.
Additional Info

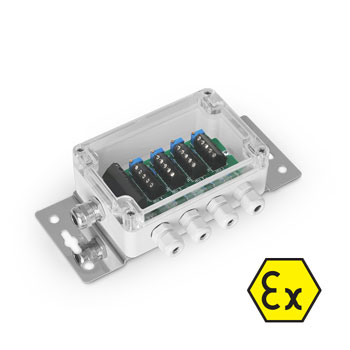

IP67 junction box fitted with electronic board for junction and equalisation of 2, 3, or 4 load cells. Terminal boards with a screw for easing the connection of the load cells and the signal adjustment trimmer, for an accurate and reliable equalisation.
Marking:
ATEX II 2G Ex ib IIC T6 Gb for gases.
ATEX II 2D Ex tb IIIC T115°C Db IP65 for dust.
