Features
- Maximum input voltage: 24Vdc.
- Maximum input current: 700mA.
- Maximum input load cell signal: 1000mV.
- Temperature effect: 50ppm/°C.
- Protection diodes against surcharges or electrostatic discharges.
| IP Rating | IP65 |
| Material | Stainless steel case. |
| Dimensions JB6QI | 190 x 132 x 50mm |
| Dimensions JB4QI | 155 x 158 x 45mm |
Product enquiry
JBQI: Equalisation Junction Box
Tell us where it's going and we'll come straight back with pricing, lead time and install options.
Additional Info
Stainless steel junction box with IP65 protection from water and dust, and fitted with electronic board for junction and equalisation of 4 or 6 load cells. Terminal board with screw for easing the connection of the load cells and the signal adjustment trimmer, for an accurate and reliable equalisation.

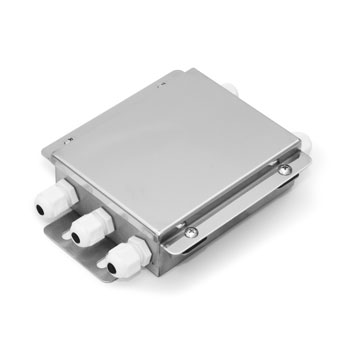

JB4QI – Stainless steel equalisation box for connection with up to 4 load cells.

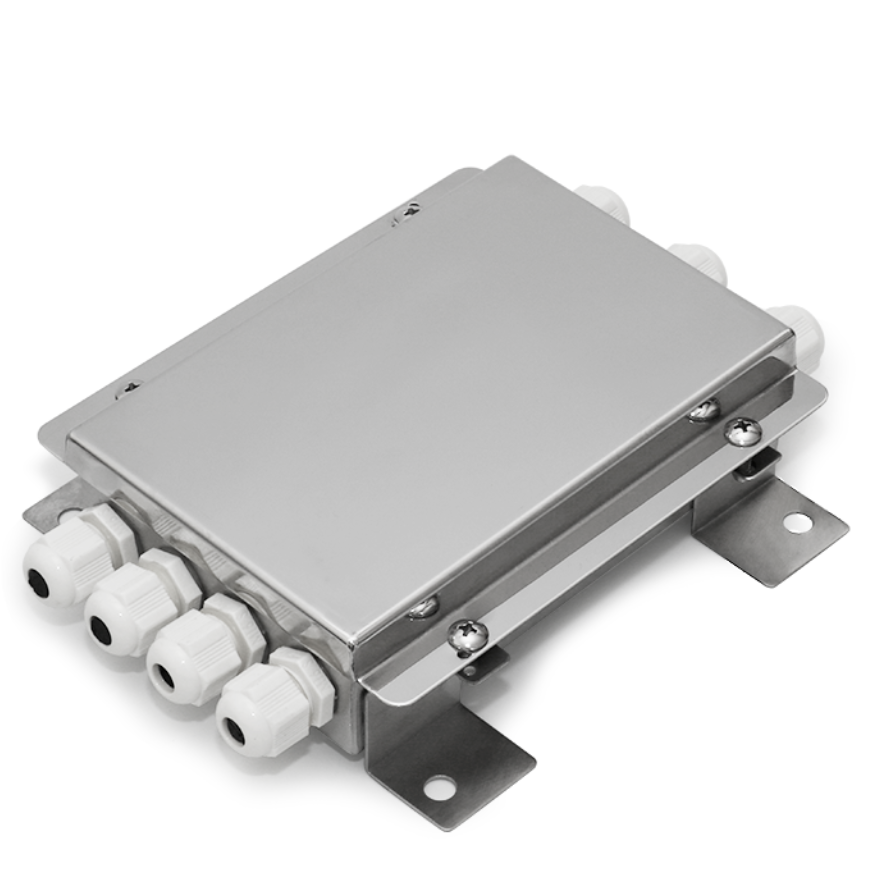

JB6QI – Stainless steel equalisation box for up to 6 load cells.
