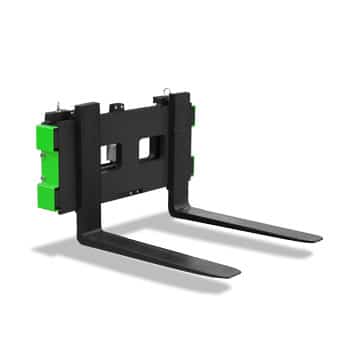

  • LTW: weighing module for lift truck (forks not included).

Features

  • Built-in protection system against overloads and accidental impacts.
  • Hermetically sealed junction box.
  • Wide range of connectable indicators and wireless solutions.
Plate Dimentions 910 x 407 x 110 mm
Weight 184kg
Accuracy +/- 0.05% of the capacity
Max. barycentric shifting 55 mm
Max. horizontal inclination (flexibility) +/- 2° with the same accuracy characteristic
Inquire about "LTW Series Weighing System"
  • This field is for validation purposes and should be left unchanged.

PDF Download

Additional Info

Weighing module for forklift trucks with fixing guide according to DIN15173 – FEM class II standards, for transforming a normal lift truck into a mobile electronic scale.

Available also CE-M APPROVED.

• Bearing structure in extra thick sheet steel and accurate functioning mechanics with 2 shear-beam IP68 load cells.
• Stainless steel load cells, full scale output 2 mV/V, maximum power supply 15Vdc.
• Hermetically sealed junction box.
• Max. horizontal inclination (flexibility): +/- 2° with the same accuracy characteristics.
• Max. allowable overload: more than 300% f.s., with protection limit switch in case of broken hinges.
• Built-in protection system against overloads and accidental impacts.
• Wide range of connectable indicators and wireless solutions.
