Features

  • Dedicated packing station with variety of options to build your own outer case marking station
  • Printer garages to suit a range of printers from all major manufacturers (Standard Honeywell PM43)
  • Choose a touchscreen from MWS or supply your own VESA mount 17" screen
  • Lower cost of ownership due to long-term lifespan of the product and fitted components
  • Lifetime warranty on the structural integrity of the fabrication
  • 5 year guarantee on components
MWS can create bespoke, turn-key solutions, so if you don't see what you're looking for, speak to us today about a custom design
Platform Size 600 x 400mm (Other sizes optional)
Capacity 15kg / 30kg / 60kg / 150kg
Finish 304 Stainless Steel
Communication 2 x Ethernet / 4 x USB / 2 x RS232
Terminal Windows 10 IOT
Manufacturer MWS Ltd
Inquire about "OCM – Outer Case Marking System"
  • This field is for validation purposes and should be left unchanged.

Additional Info

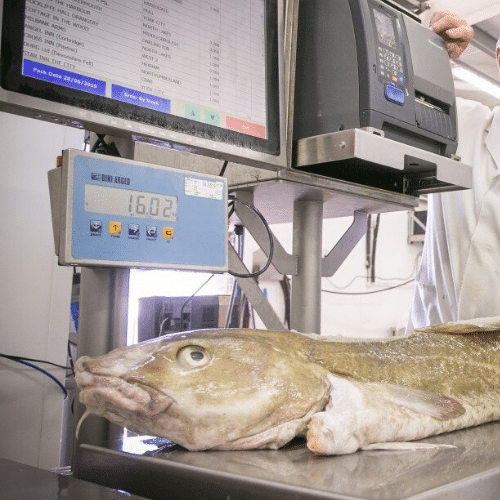

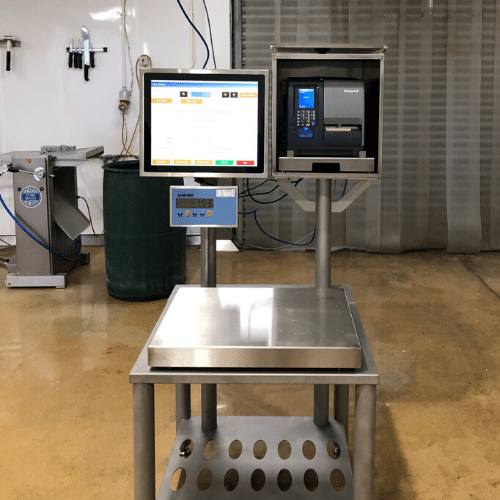

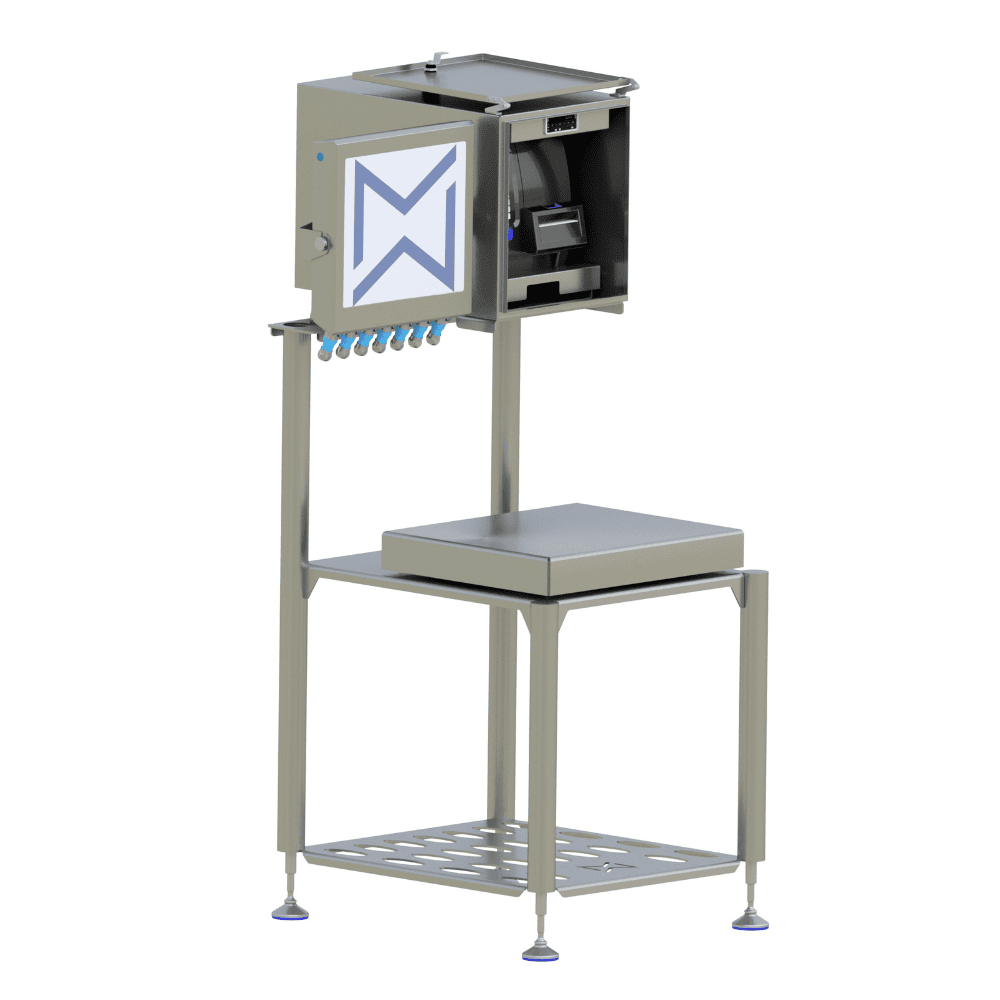

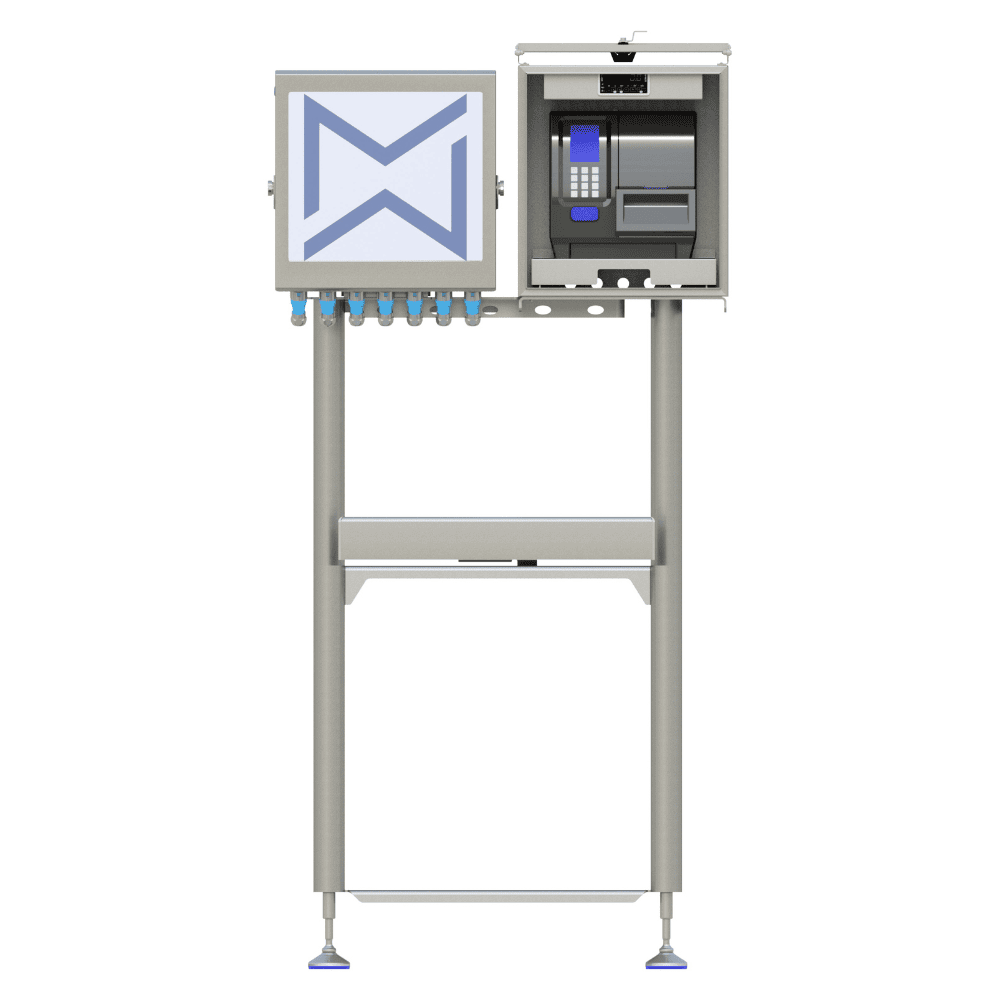

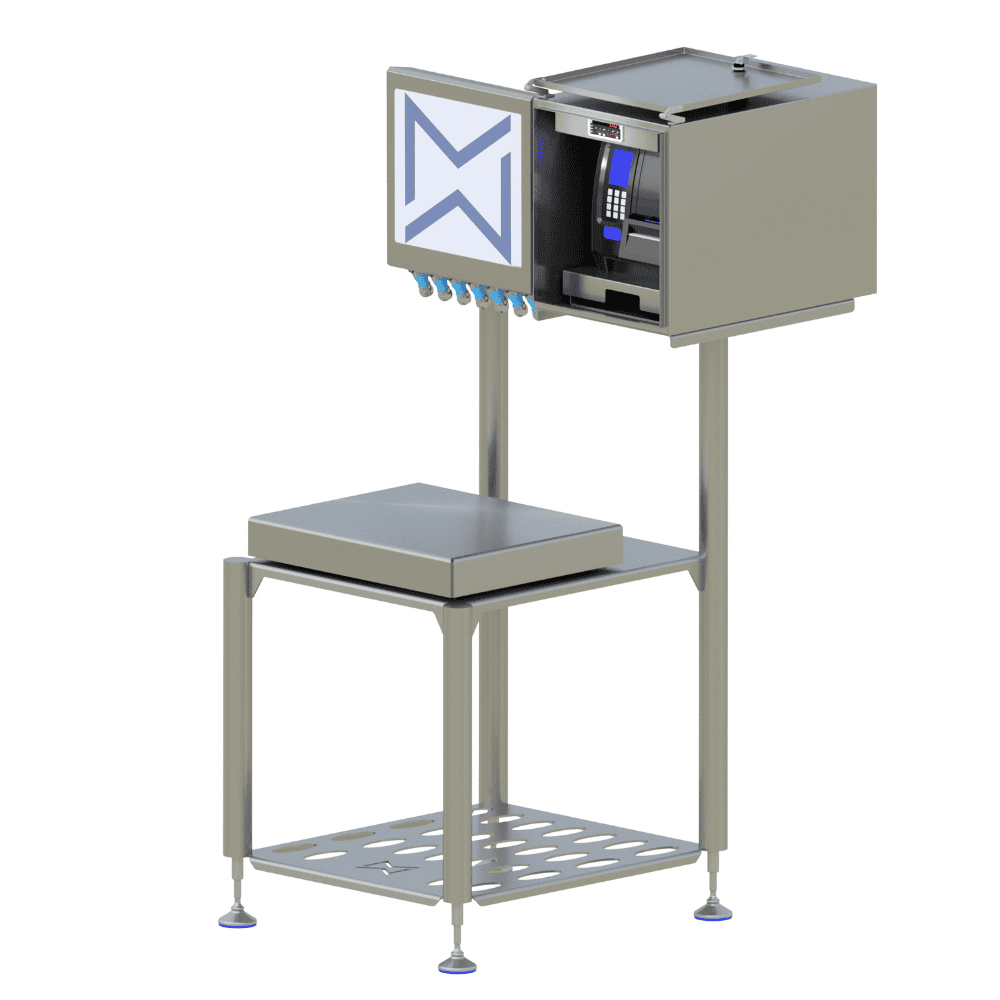

The new Outer Case Marking System, or OCM for short, incorporates a Windows touchscreen terminal, an industrial label printer and weighing platform into a hygienic stainless steel frame that can be portable or fixed in one location.

The large touchscreen makes using the OCM intuitive and clear for shop floor operators. The display can be customised to show various options and processes specific to client processes.

Office management of the Outer Case Marking System is included as standard to enable administration to enter new products, customers and label formats quickly and easily. Adding the optional Sales Order package enables office administration to enter orders and send them directly to the OCM for picking and packing by the operator.

Our scale design team can develop a system to work and look exactly how you want – we are very flexible. We are happy to tweak and change software to integrate into your existing system.

 OCM Hardware

  • 15.6″ 1366 x 768px Resistive Touchscreen Display
  • 3 x RS232C, 1 x RS485, 2 x Ethernet, 4 x USB 2.0, 4 inputs / 4 outputs
  • Intel® Atom™ N270 1.6 GHz, 2 GB DDR2 400MHz
  • Microsoft Windows 7 Embedded
  • Intermec PF4i Label Printer & IP67 Stainless Steel Printer Garage
  • 600 x 400mm Stainless Steel Weighing Platform
  • High Grade Stainless Steel Finish

OCM Software

  • Multiple levels – unit, case, pallet
  • Multiple Dates with advanced off-set rules
  • Dynamic screens – flexibility over questions and layout
  • Transaction history with cancel box at terminal facility
  • Generate reports locally at terminals
  • Dynamic keyboards – unlimited shortcuts to PLU and Questions
  • Individual Weighed Pieces (IPP) – auto-generate case end labels
  • Label Design – WISIWIG design and preview
  • Ability to print to multiple printers simultaneously across Networks

Outer Case Marking Software – Optional Extras :

  • Work Order (Production plan) control
  • Ability to Import Orders/Plan from any 3rd party system
  • Ability to Create Stock Items/Traceability
