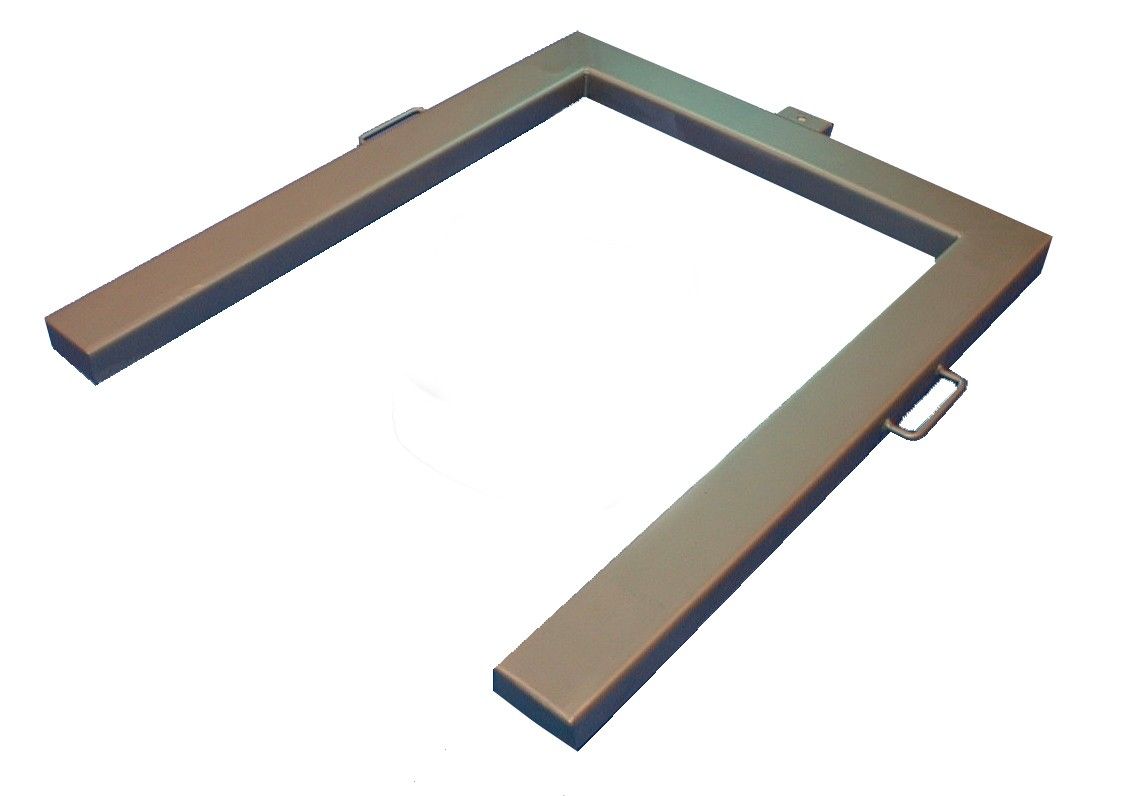

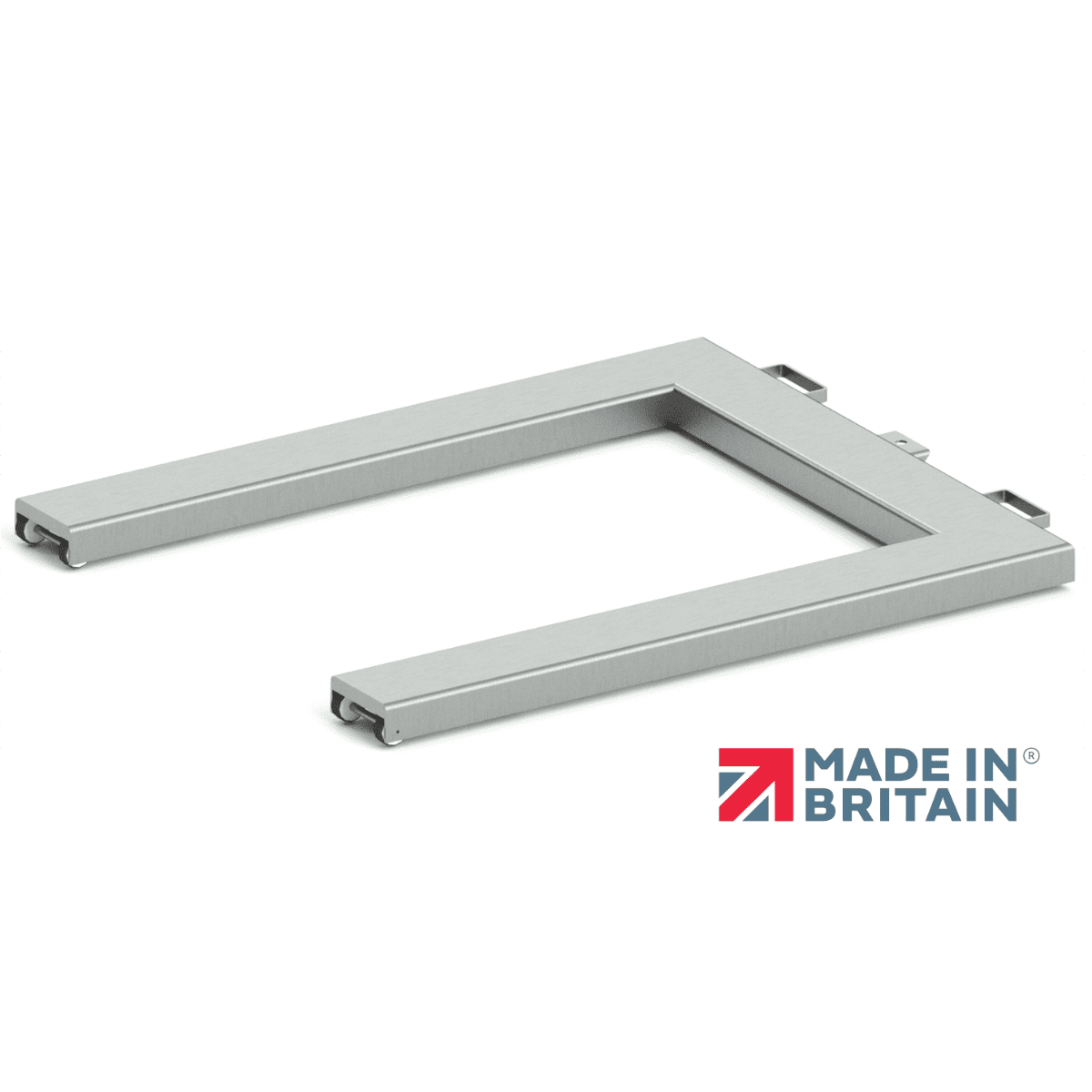

  • The SPU is a hygienic U Frame scale that can be used to weigh pallets or IBCs. Manufactured in the UK by MWS Ltd.

Features

  • The SPU is a portable U-Frame Scale
  • Rear handles and wheels located at the front allow the SPU to be easily moved by one person
  • Ideal for weighing IBCs, pallets and crates
  • Designed and manufactured by MWS at our factory in Leicester
  • Lower cost of ownership due to long-term lifespan of the product and fitted components
  • Lifetime warranty on the structural integrity of the fabrication
  • 5 year guarantee on components
Material 304 Stainless Steel
Finish Hygienic Bead Blast
Capacity 300kg to 3000kg
IP Rating IP69
ATEX Rated Optional
Manufacturer MWS Ltd
Price From £2,360.00
Inquire about "SPU Stainless U-Frame"
  • This field is for validation purposes and should be left unchanged.

PDF Download

Additional Info

The SPU is a hygienic U Frame scale that can be used to weigh pallets or IBCs. Front loading wheels make the SPU easy to manoeuvre by one person by simply lifting from the rear using the handle.

The SPU features IP69K load cells manufactured by Flintec and is fully wash down protected due to its IP rated junction box.

316 material options are available where there are more corrosive liquids or powders present.

We also offer electro polish finishes for pharmaceutical applications.

The SPU is designed and manufactured by the MWS production team at our head office in Leicester.

Model Weighing Area
(mm)
Load Height
(mm)
Max Capacity
(kg)
SPU1008 1000 x 800 75 2,000
SPU1010 1000 x 1000 75 2,000
SPU1208 1200 x 800 75 2,000
SPU1210 1200 x 1000 75 2,000
SPU1212 1200 x 1200 75 2,000

Options

  • Foot Location Plates (Stainless Steel)
  • Upgrade to Flintec SB14 / IP68 Load Cells
  • ATEX Certified Load Cells & Intrinsically Safe Junction Box (JB4QAI)
  • Load Cell Cable Option from 5–25m (Price per Metre)
  • 316 Stainless Steel Material
  • Electro Polish Finish
  • Custom sizes, Heights & Construction
