Features

  • Fully welded and hermetically sealed stainless steel construction, with protection class IP68/IP69K
  • Wide operational temperature range: -30 °C to +70 °C
  • 6 wire (with sense wires) configuration as standard
Inquire about "T66 Bending Beam"
  • This field is for validation purposes and should be left unchanged.

PDF Download

Additional Info

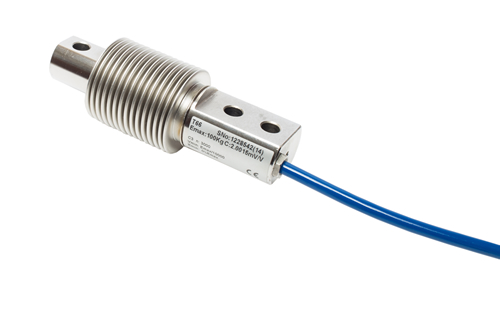

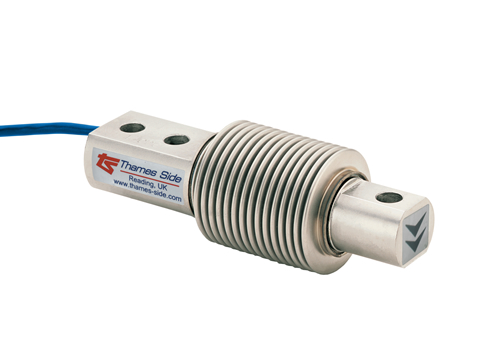

The T66 high precision stainless steel bending beam is a world-class load cell and widely used in industrial weighing applications. It offers extremely high accuracy with OIML approval and can withstand harsh manufacturing environments.

It has OIML approval to 3000 divisions (C3) or 6000 divisions (C6) and ATEX approval for use in hazardous areas where an explosion risk exists. Its certification for dust zones 20, 21 and 22 does not require the use of safety barriers. The load cell is supplied as standard with a 6-wire configuration (with sense wires). An optional 4-wire version is available on request (OIML C3 only).
