Features
- Equipped with 230Vac 50 Hz battery charger to be recharged in a safe area.
- Power supply through extractable battery, rechargeable in safe zone.
- 150-hour approximate operating time.
- Bearing structure entirely in extra thick sheet steel.
- Standard fitted with +/-160° swivelling column head.
| ATEX Area | Zone 2 / 22 |
| Rating | Ex II 3G IIC T6 Gc X |
| Fork Dimensions | 1150 x 550 x 85 mm |
| Accuracy | +/- 0.05% of capacity |
| IP Rating | IP68 |
Inquire about "TPWI “EX” 3GD – ATEX Pallet Truck Scale"
PDF Download
Additional Info

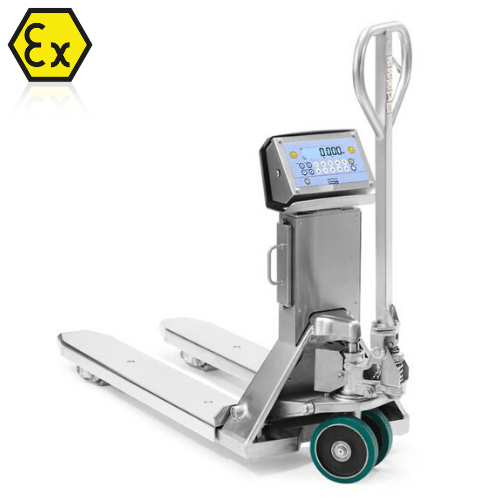

Pallet truck scales, with built-in electronic weighing, suitable for harsh working conditions and dangerous areas classified as hazardous (ZONE 2, 22) in accordance with Ex II 3G IIC T6 Gc X and Ex II 3D IIIC T115C° Dc X protection. The weight detection made with four Atex certified IP68 stainless steel load cells guarantees the precision in all work conditions. Structure entirely in stainless steel. Manufactured, calibrated and adjusted in Italy by Dini Argeo, using certified sample masses. Available also CE-M APPROVED.
Available versions
| Code | Max (kg) |
d (kg) |
(kg) | d HR (kg)* |
| TPW20IEX3GD | 500/1000/2000 | 0.2/0.5/1 | — | 0.1/0.2/0.5 |
| TPW20IEX3GDM | 1000/2000 | — | 0.5/1 | — |
(*) The HR division is obtainable only with the relative EHR option
