  • Traffic light system for driver management
  • Remote control for accessing tractor tare weights
  • Large display providing feedback to driver
  • USB data stick or PC software for data collection
Pad Size 900 x 700 x 75mm
Capacity 20,000kg per Axle
Weight Capture Static or Dynamic
Inquire about "Tractor Trailer Weighing System"
  • This field is for validation purposes and should be left unchanged.

Additional Info

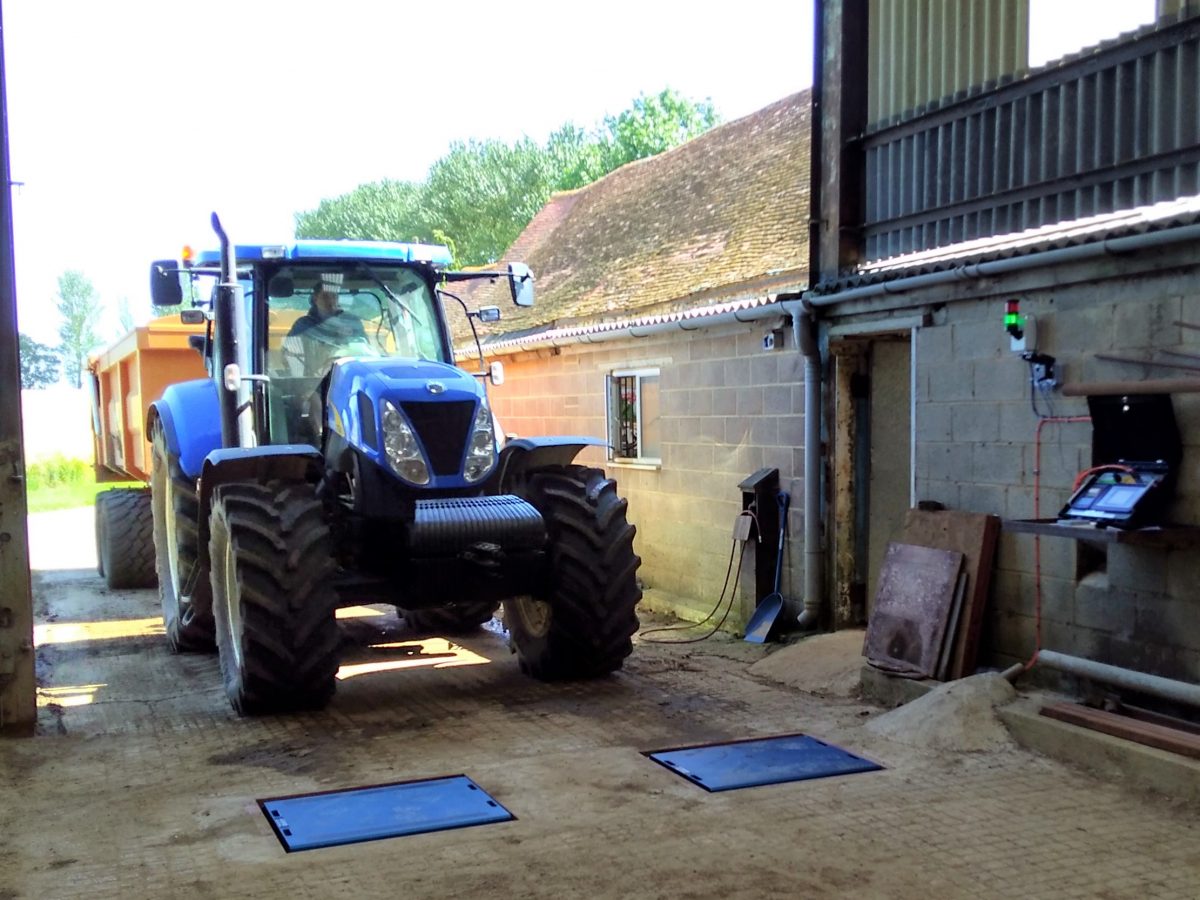

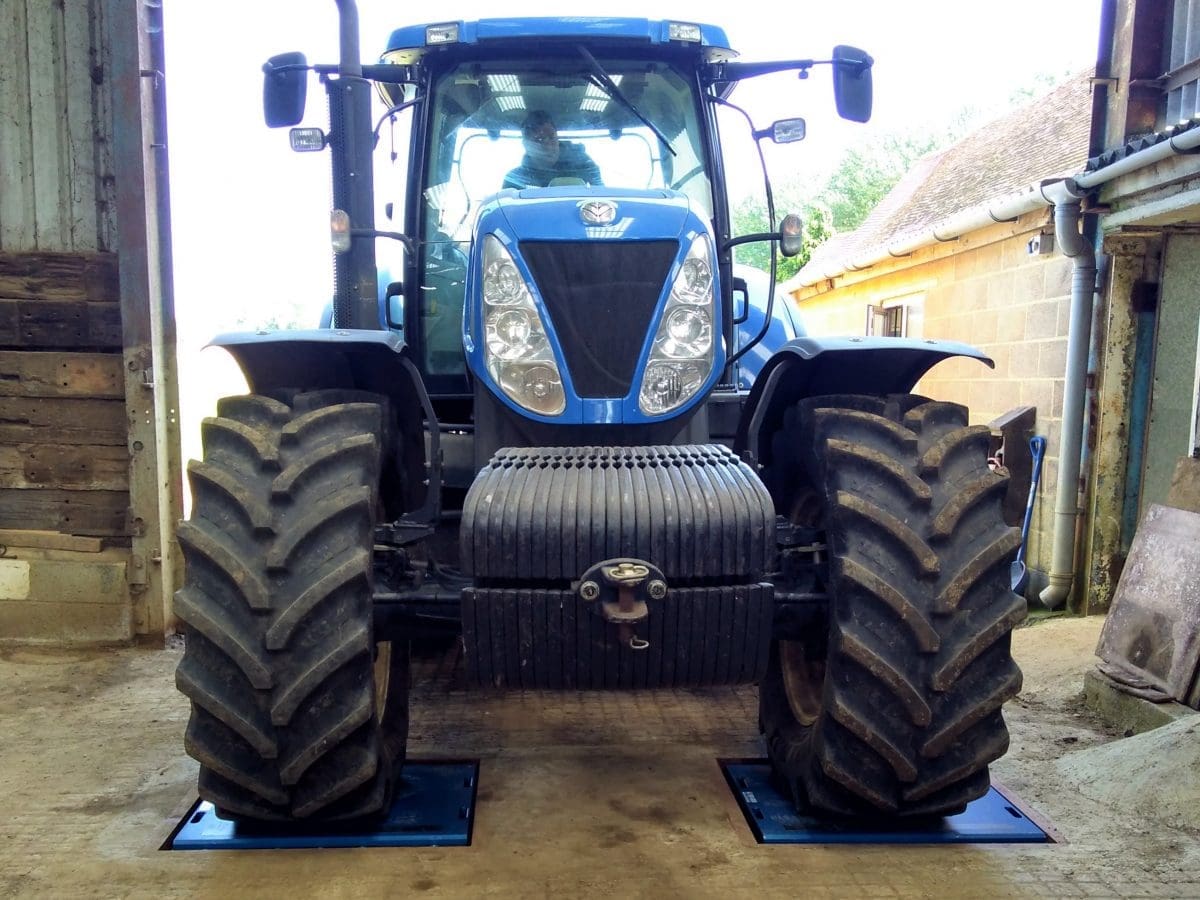

The MWS Tractor Trailer Weighing System is a flexible and cost effective dynamic solution that meets the exacting requirements of a busy harvest where the main priority is getting product from field to storage in the quickest and most efficient way whilst ensuring that the valid weighments are taken and printed for each load and transaction.

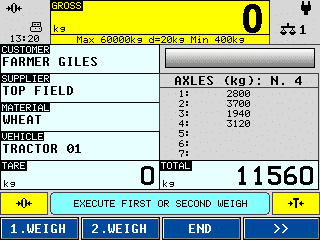

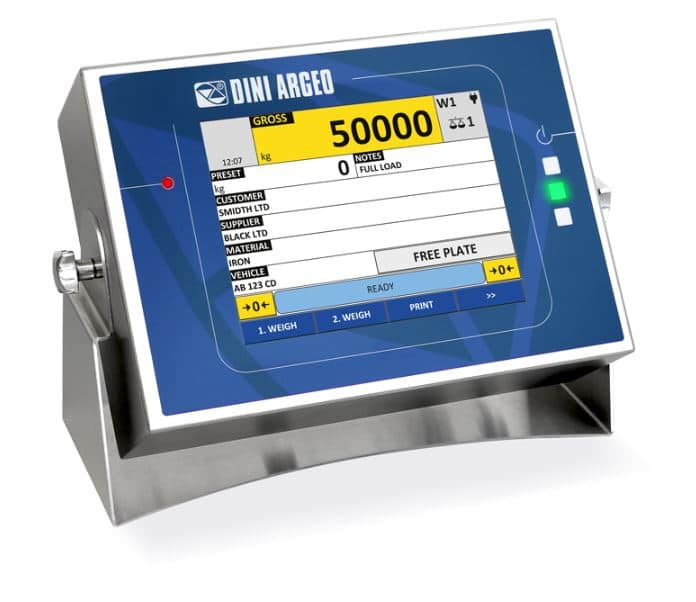

The system uses the latest touch screen technology which allows the most important information to be preconfigured into the system data base and displayed as drop down menus for the driver or operator to select prior to the days weighing to proceed.

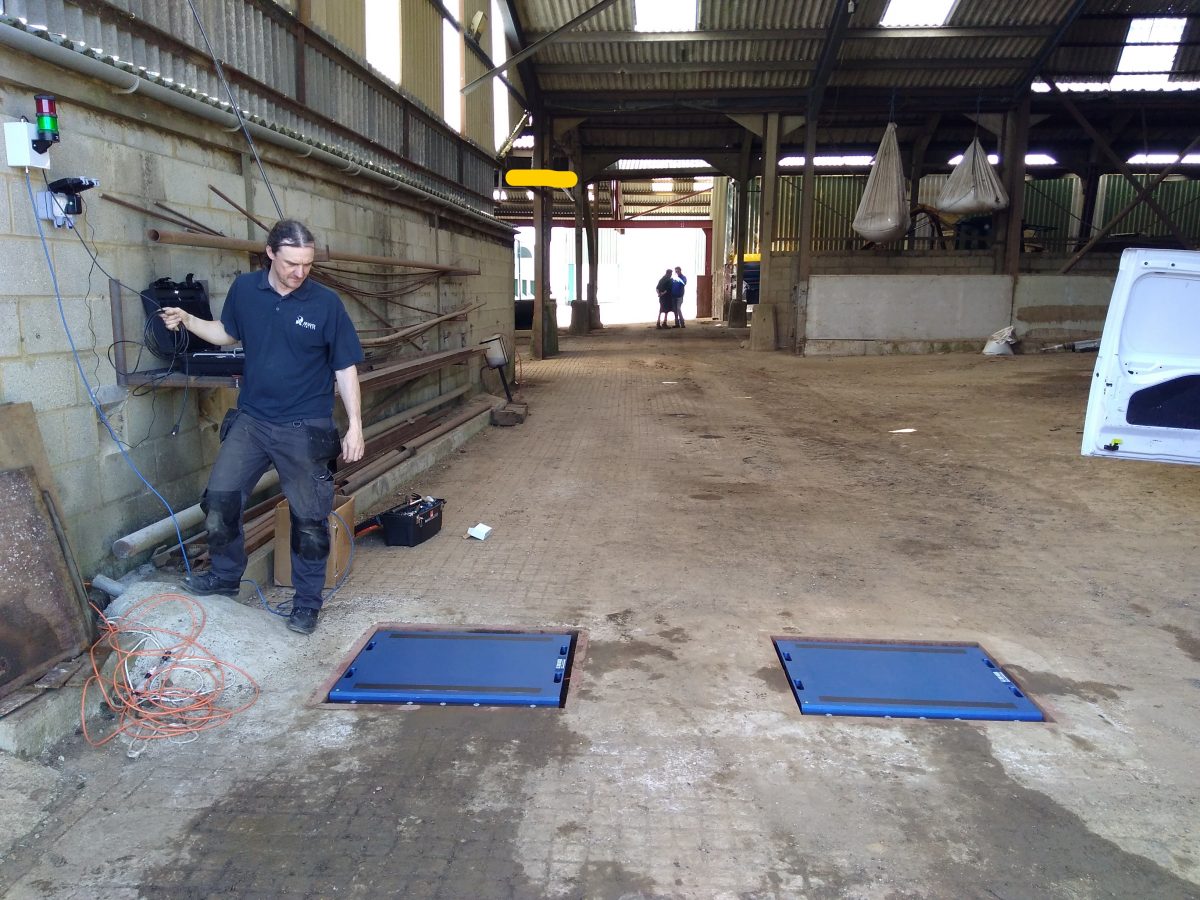

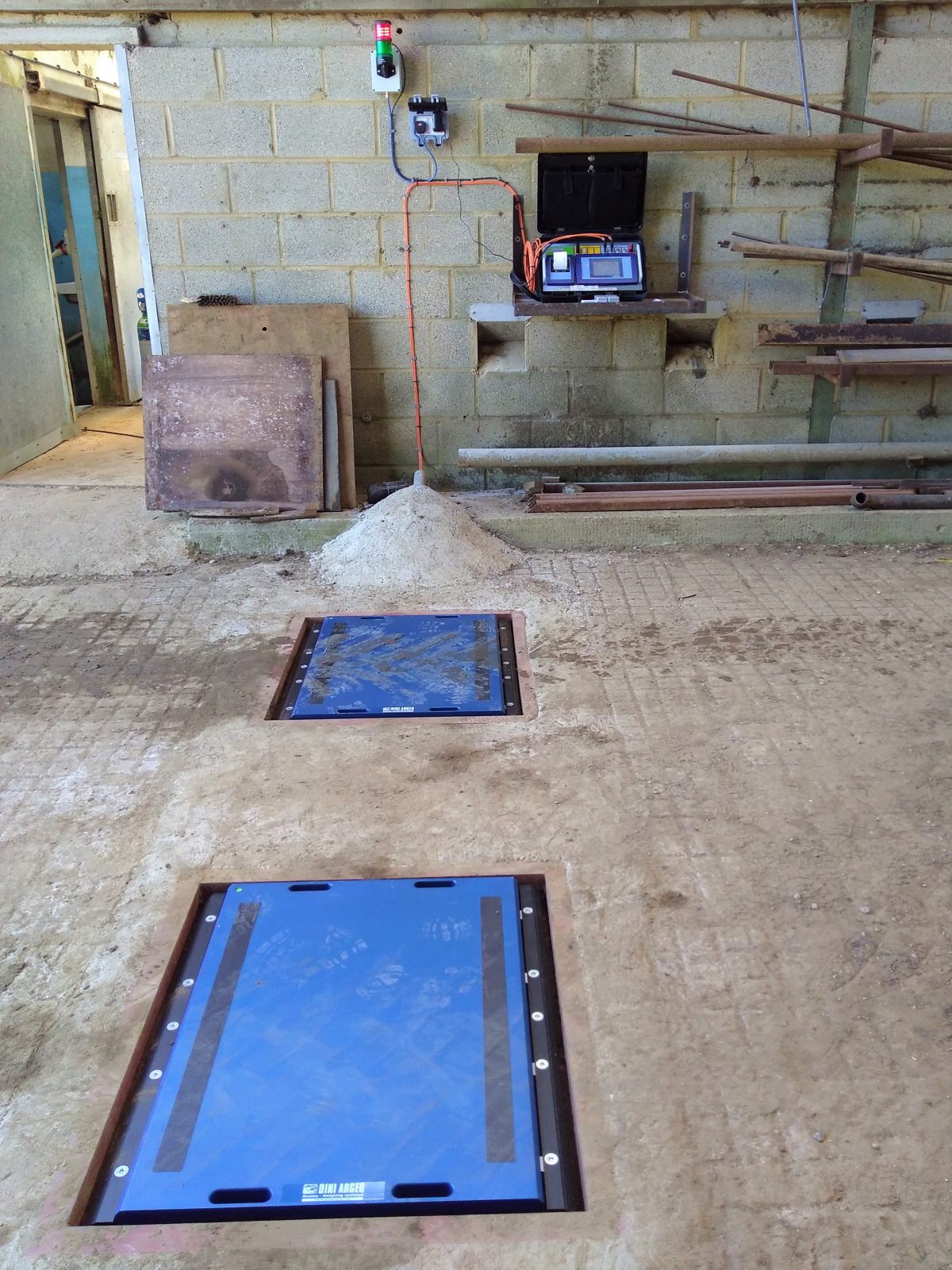

Each Weigh Pad has dimensions of 900 x 700 x 75mm to cater for most standard tractor trailer wheel types to help ensure that each wheel is well placed within the weighing area when weights are taken and calculated in the dynamic mode.

The system benefits from the inclusion of a remote controller which can be consigned to each tractor to enable the driver to instigate each weighment on his approach to the weigh pads negating the need for the driver to dismount or the need for a dedicated operator.

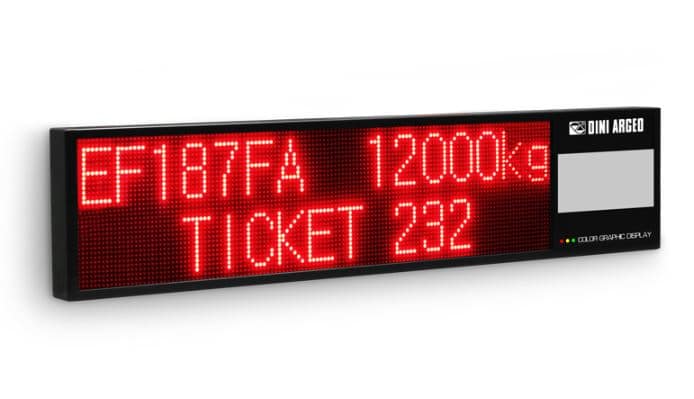

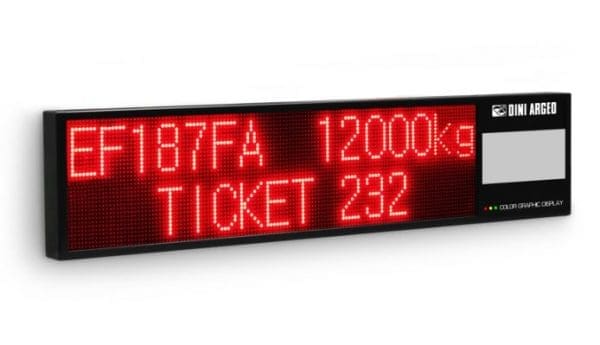

As an option a driver scoreboard display unit can be installed at a suitable position to give the tractor driver a clear and unambiguous display of the Gross and Net Weights after each weighment cycle has been taken.
