Understanding Chamber Mapping
Whether it’s an oven, a curing tunnel or a walk-in freezer, every chamber has its quirks. The temperature you read on the display isn’t always the temperature your products experience. Chamber mapping steps in to show what’s truly going on across the whole space rather than relying on a single point.
How the Process Works

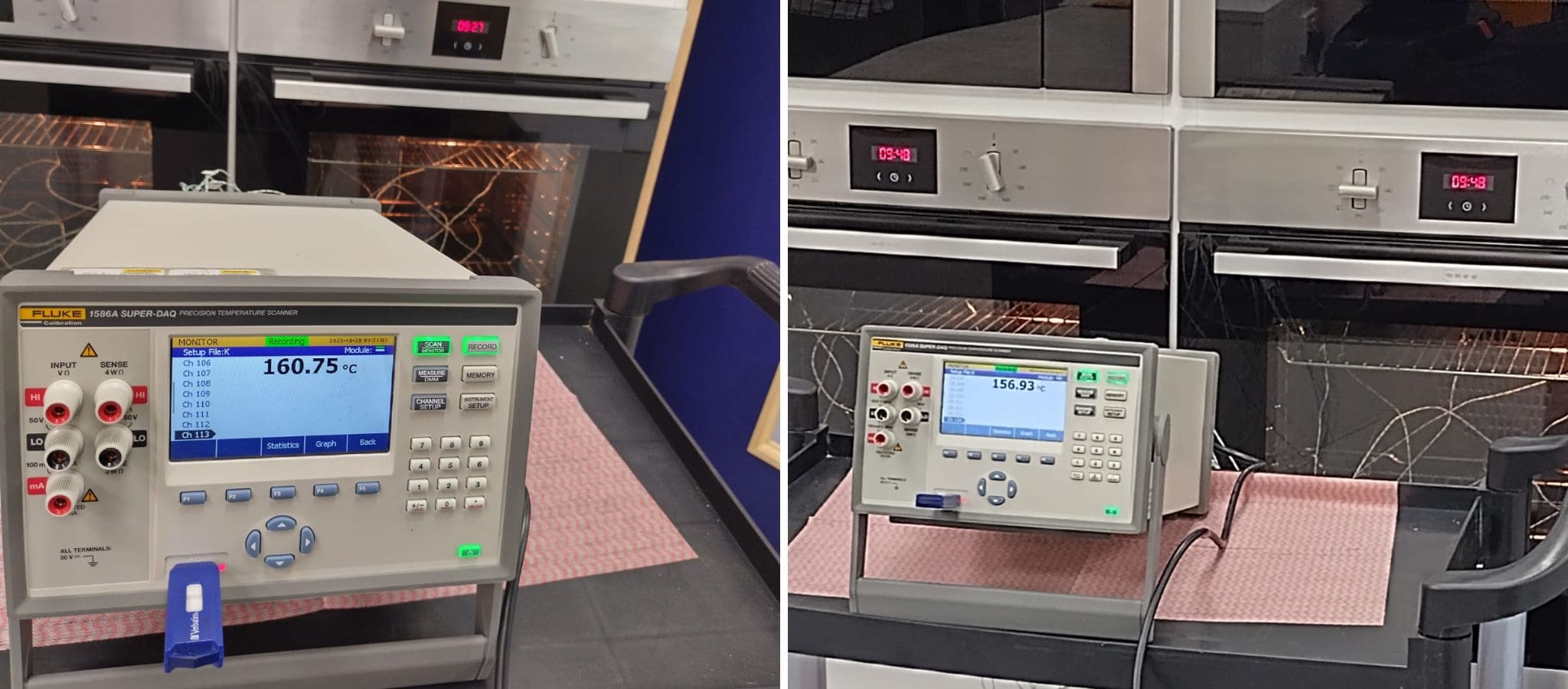

The method is simple. Up to nine probes are placed throughout the chamber and left to monitor temperature over a set period. As they collect data, they reveal patterns that a lone sensor can’t show. You get a full picture of how heat or cold moves around the chamber, from the warmest corners to the coldest shelves.
Where It’s Used
Chamber mapping shows its value across a mix of industries:
- R&D ovens: Used to check that recommended cooking instructions match how products behave in real testing conditions.
- Large industrial ovens: Common in baking, curing, drying, sterilisation and heat treatment, where any drift in temperature can cost time, money and quality.
- Fridges and freezers: Essential for storage of ingredients, parts, produce and other temperature-sensitive goods.
Each environment brings its own challenges, and mapping helps you understand them before they turn into bigger issues.
What the Results Tell You
A completed map highlights more than just temperature averages. It shows you hot spots, cold zones and how well the chamber circulates air. These clues often point to worn seals, airflow restrictions or developing faults. Catching this early helps prevent wasted batches, keeps equipment running efficiently and reduces energy costs.
Want to Know How Your Chamber Really Performs?
If you’d like a clearer understanding of temperature behaviour in your ovens, fridges or freezers, the MWS team can help. Speak to us about chamber mapping calibration and we’ll guide you through the best approach for your setup.
