Features

  • Simple, functional electronics
  • Stable, safe and easily serviced mechanics
  • Conformity with standards
  • Performance and Versatility
  • Convenience and simplicity
Weighing rangeup to 40000 g
Display divisionfrom 5 g
Linear speedup to 50 m/min
Throughputup to 60 ppm
Accuracyfrom ± 5 g
Inquire about "14D3 Checkweigher"
  • This field is for validation purposes and should be left unchanged.
PDF Download

Additional Info

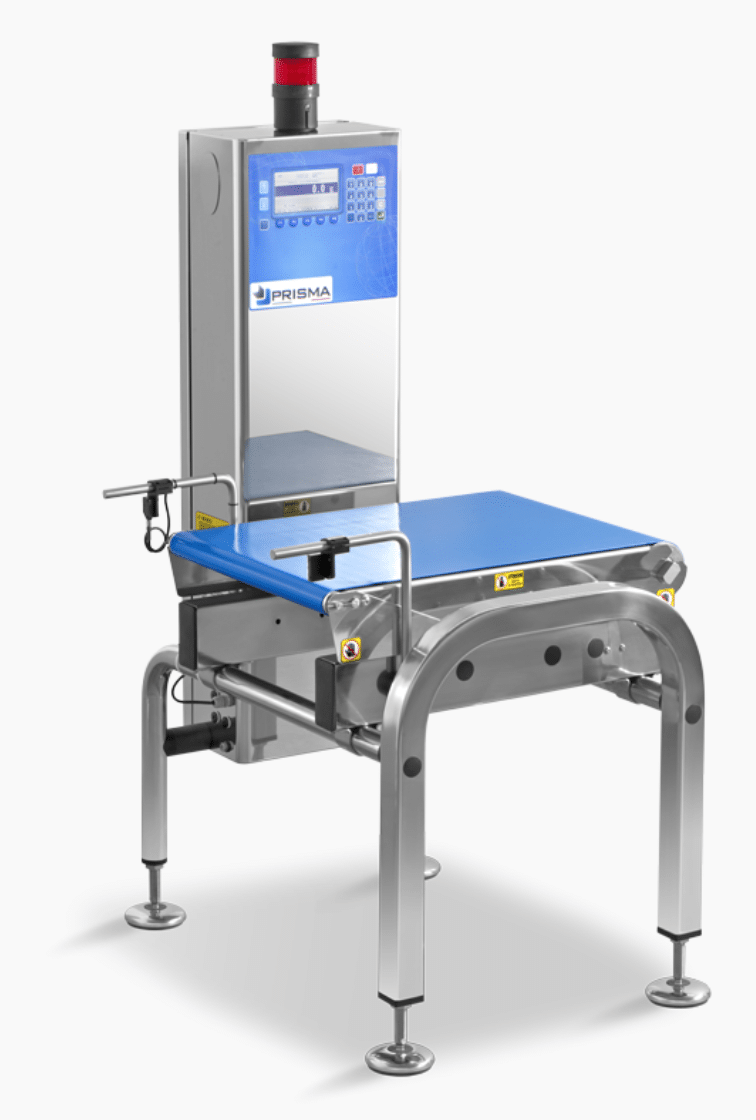

Checkweigher for large format products and completeness check, with MID approval option.

With a maximum capacity of 40000 g, accuracy from ± 5 g and a production rate of 60 ppm, the 14D3 is a classic end-of-line instrument, suitable for checking sacks, cardboard boxes and barrels.

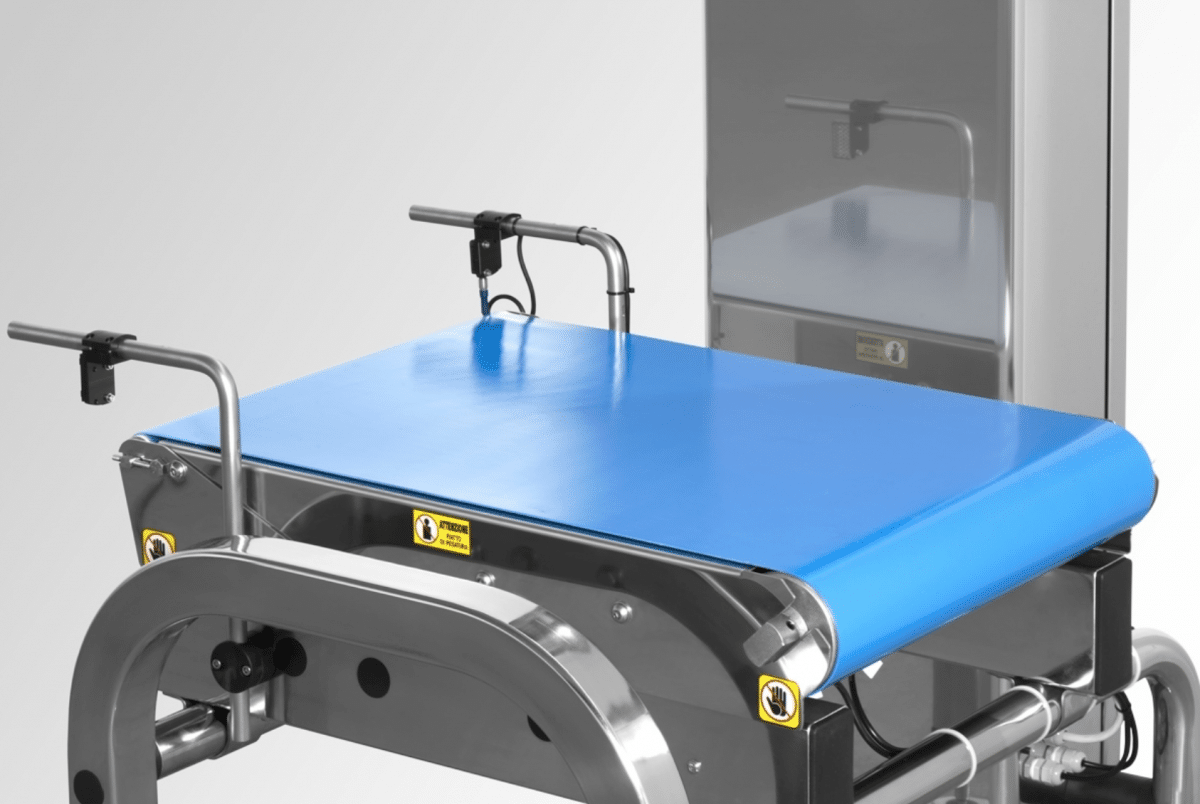

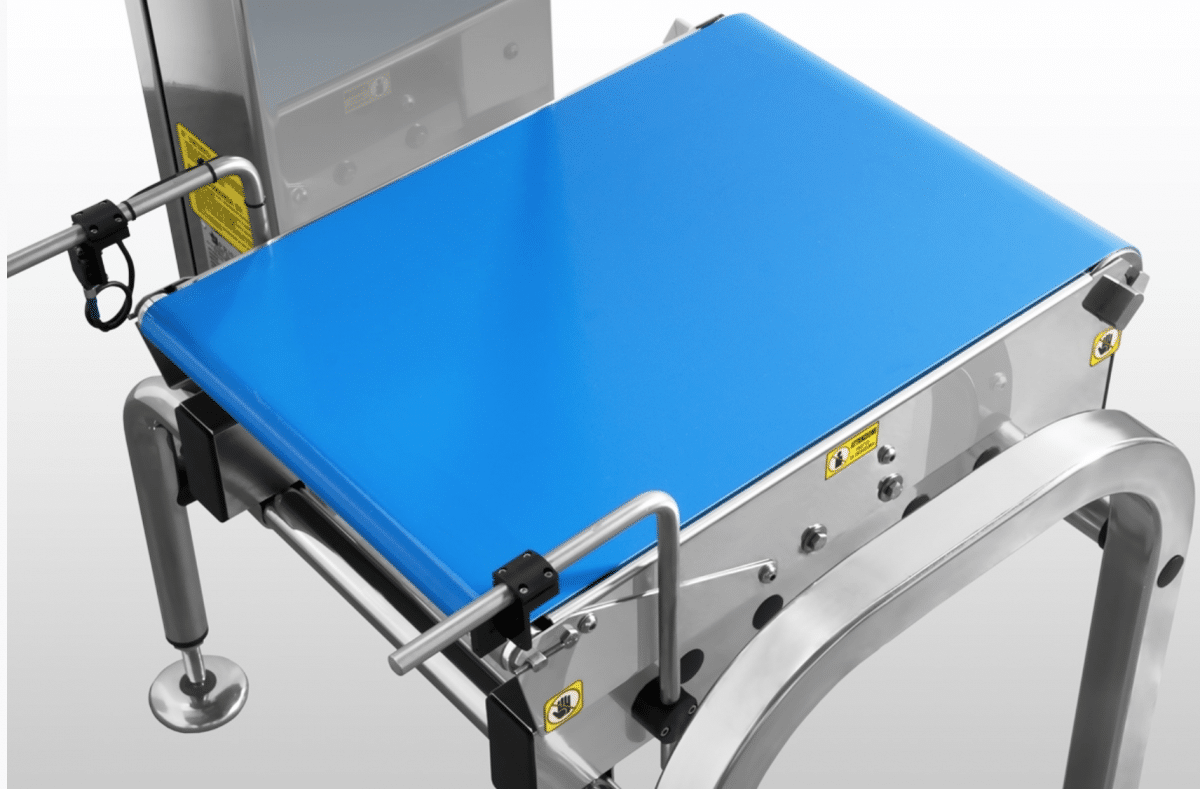

Detection occurs through a dual load cell system positioned on a belt conveyor.

It has an IP54 degree of protection and can be paired with roller infeed and outfeed systems.

Dual System
Weight is measured through a double load cell system. The two cells are positioned to the sides of the weighing plate: this allows the machine to be cleaned more quickly and efficiently than with other configurations, cutting maintenance costs and line standstill times. Furthermore, the Dual System ensures extremely high accuracy and repeatability, even at high speeds.

Advanced, intuitive electronics
Digital electronics with a touchscreen display, complete with self-calibration device, mobile average function and 200 storable programs. There are also 2 RS232 C serial ports available and an Ethernet interface to communicate with the outside. Multi-level password protected access reduces human error to a minimum.

Stable, safe and easily serviced mechanics
The checkweigher consists of three conveyors (feeder, weighing and outfeed), supported by a structure in stainless steel tubing that gives the machine stability, eliminating possible vibrations and disturbances originating from the workplace. The load-bearing tube structure speeds up cleaning operations.

Experience
30 years of inspection and quality control: an experience that comes to life in every new model that is designed and built in our establishments. The 08T3 boasts over 2000 installations with satisfied customers worldwide.

Quality
Italian passion for quality is reflected in every machine detail. The attention to every detail, guided by thirty years of experience, is the real added value of PRISMA machines. Finished down to the last detail and made entirely of stainless steel, it is able to withstand intense washing cycles, which can be done extremely quickly, thanks to the quick-disassembly plates.

Conformity with standards
The 14D3 meets the ISO-FDA HACCP standard, the main directives (including, among others: OIML R51 – MID directives, FDA approvals, FAT/SAT IQ/OQ) and complies with customer guidelines and standards (including, among others: BRC and Marks & Spencer).

Performance and Versatility
Our machines meet high levels of performance and product interchangeability; and wherever they are unable to reach, we can design a tailored system for every requirement.

Return on Investment
Imagine how much you can save with a machine that does not waste product, generate false rejects or force production standstills and that protects the brand. Savings that extend over the years, thanks to the high quality of the materials and the longevity of the machine, which are at top market levels. Our sales team knows how to find the solution that best suits any type of budget and expected financial return.

Convenience and simplicity
A simple, streamlined user interface and years of experience installing and integrating into production lines. All the models can be equipped with Ethernet and USB interfaces to transmit data and all the machines can also be connected to a single, centralised data collection system, our Data Manager Tracking.
