  • ATEX Low Profile Scale

Customer Benefits

  • Safer and easier operator use with low loading deck
  • Designed for food area hygiene and safety
  • Lower overall cost of ownership
  • Manufactured in the UK by MWS Ltd using quality components
  • ATEX EU Declaration of Conformity supplied with this model when used with ATEX terminal
MWS can create bespoke, turn-key solutions, so if you don't see what you're looking for, speak to us today about a custom design
Manufacturer MWS Ltd (Made in UK)
Material 304 or 316 Stainless
Standard Finish Bead Blast
Capacity Range 150 - 2000Kg
Sizes 500 x 500mm to 2000 x 1250mm
Upgrades Bespoke Sizes
ATEX Rating Zone 1/2 , 21/22
Inquire about "ATEX DTS Drive Through Scales"
  • This field is for validation purposes and should be left unchanged.

PDF Download

Additional Info

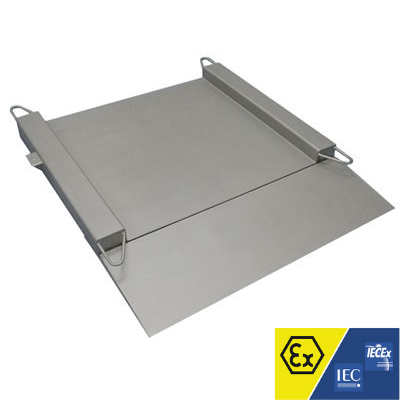

The ATEX DTS range of drive-through scales is designed and manufactured in Leicester by MWS. To begin with, a low-profile weighing deck is incorporated as the primary feature, allowing easier and safer loading by operators. As a result, the unit is enabled to handle loads of up to 2000 kg while still being maintained at a height of less than 50 mm.

Furthermore, the ATEX DTS is constructed from 304-grade stainless steel, with 316L being made available upon request. The scale is intended for use in environments where moisture is abundant. In addition, IP68 load cells and a junction box are supplied as standard, ensuring that the ATEX DTS is regarded as a fully waterproof floor scale suitable for the demanding conditions of the food and chemical industries.

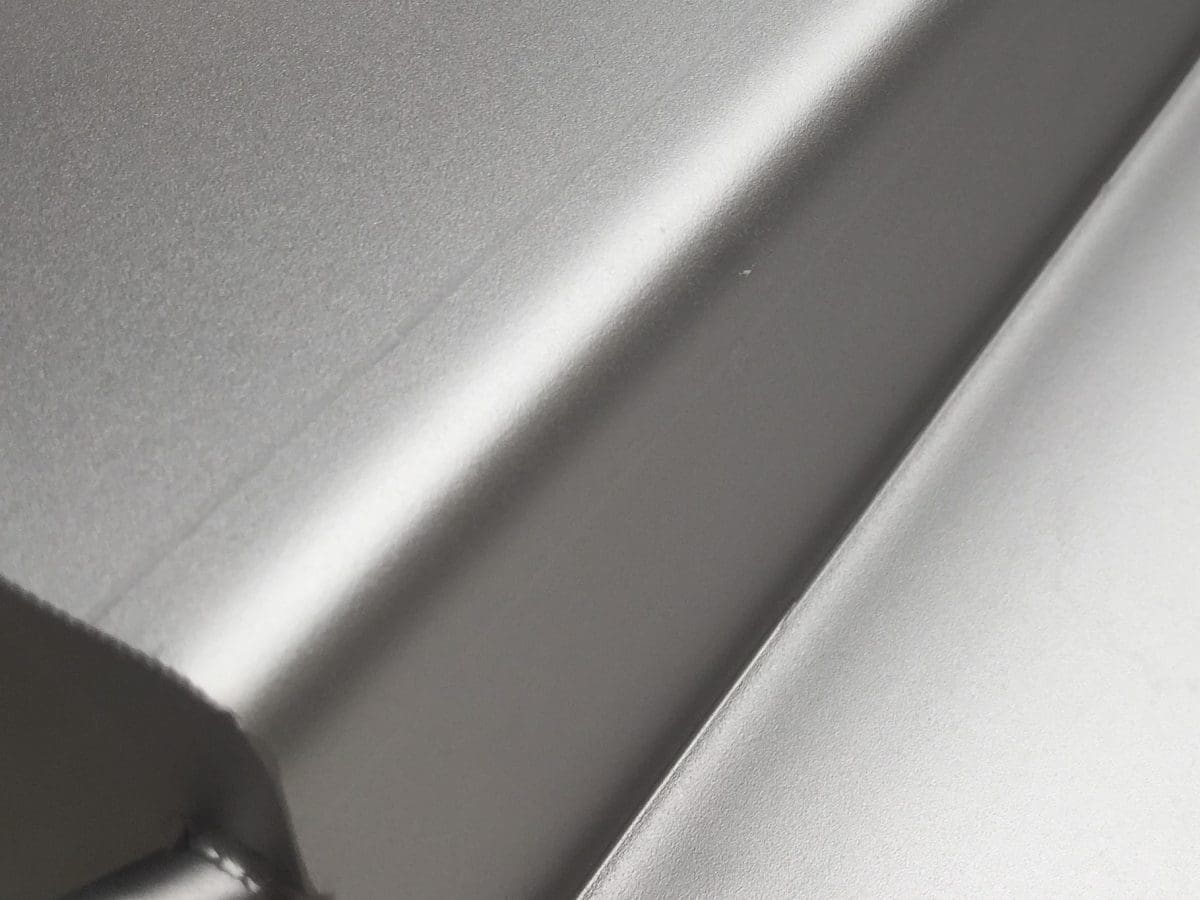

Moreover, a glass bead-blasted finish is applied to both the top and bottom surfaces, producing a hygienic surface suitable for most applications. However, a grained or electro-polished finish can be provided upon request in order to further improve the overall surface quality.

The ATEX DTS scale is rated to Zone 1/21 and Zone 2/22. The units are supplied with Flintec ATEX / IECEx rated load cells, a stainless steel Intrinsically safe Junction box and Intrinsically safe cable. This model can be supplied with a range of our ATEX weight indicators or load cell amplifiers via Zener Barriers

Standard Models

Model Size Height Capacity Load Cell
DTS75ATEX 750 x 750 mm 35 mm 300 – 600 kg Flintec SLB
DTS80ATEX 800 x 800 mm 40 mm 300 – 600 kg Flintec SLB
DTS1010ATEX 1000 x 1000 mm 50 mm 300 – 600 kg Flintec SLB
DTS1212ATEX 1250 x 1000 mm 50 mm 300 – 2000 kg Flintec SLB
DTS1512ATEX 1500 x 1250 mm 50 mm 300 – 2000 kg Flintec SLB
DTS1515ATEX 1500 x 1500mm 50 mm 300 – 2000 kg Flintec SLB
DTS2015ATEX 2000 x 1500mm 50 mm 300 – 2000 kg Flintec SLB
