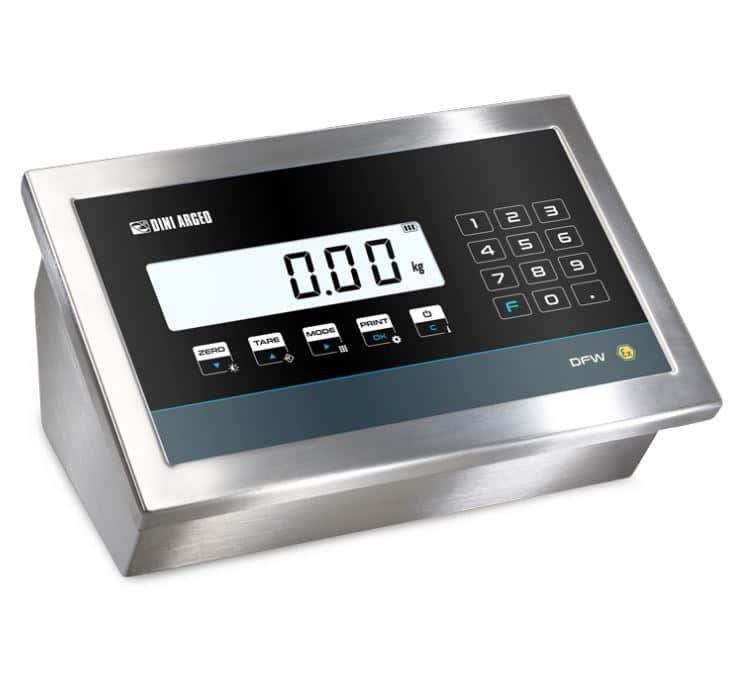

Features

  • 17-key high thickness waterproof keyboard
  • Satin IP68 stainless steel enclosure
  • Connection with up to 8 load cells of 350 Ohm
  • Internal resolution up to 3.000.000 points
Dimensions 280 x 143 x 185 mm
ATEX Rating Zone 2/22
IP Rating IP68
Inquire about "DFW-IECEX3GD Weigh Indicator For Ex 2 & 22 Zones"
  • This field is for validation purposes and should be left unchanged.

PDF Download

Additional Info

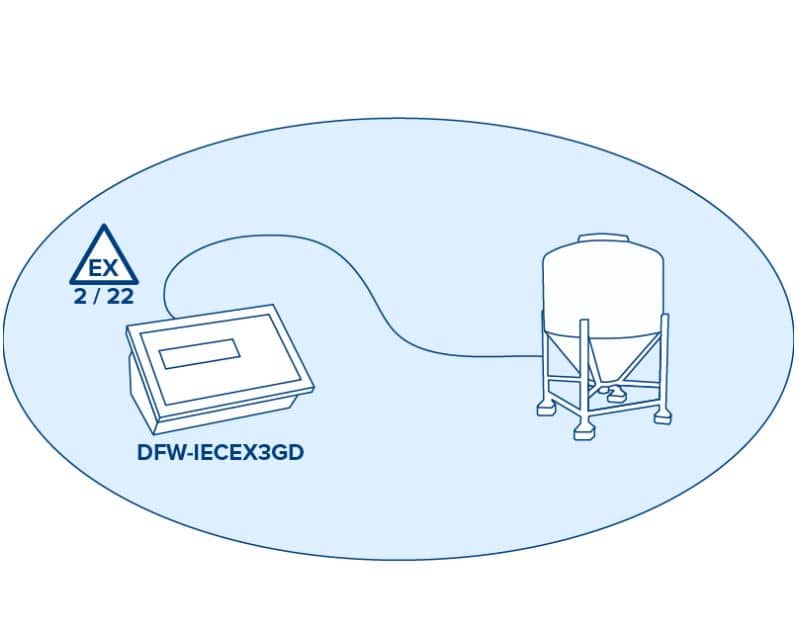

Weight indicator for Ex areas classified as hazardous. ATEX/IECEx marking:
II 3G Ex nR IIC T6 Gc X (0°C<= Ta <=50°C) for gas
II 3D Ex tc IIIC T85°C Dc IP65 X (0°C<= Ta <=50°C) for dust.

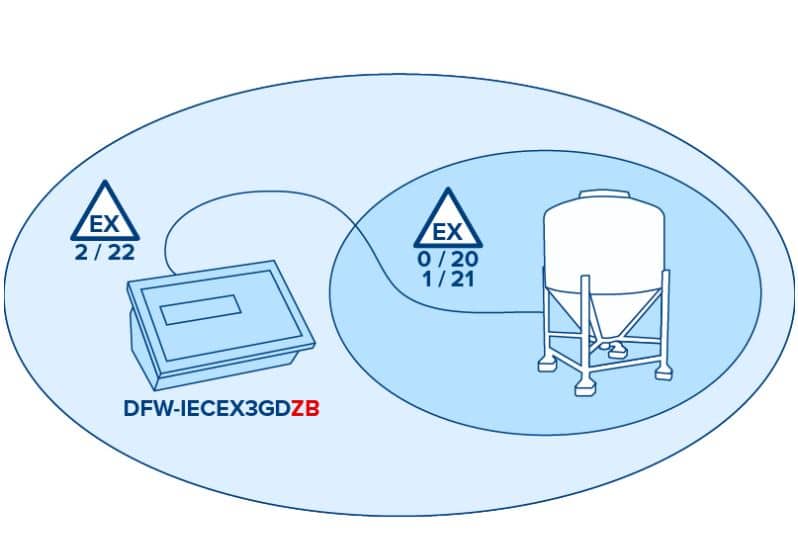

ATEX/IECEx marking with intrinsically safe connection for load cells:
II 3G Ex nR [ia] IIC T6 Gc X (0°C<= Ta <=50°C) for gas
II 3D Ex tc [ia] IIIC T85°C Dc IP65 X (0°C<= Ta <=50°C) for dust.
Suitable to realize weighing, dosing and automation systems. CE-M approvable (OIML R-76 / EN 45501).
