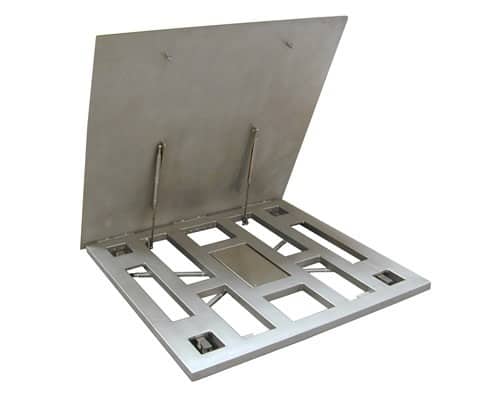

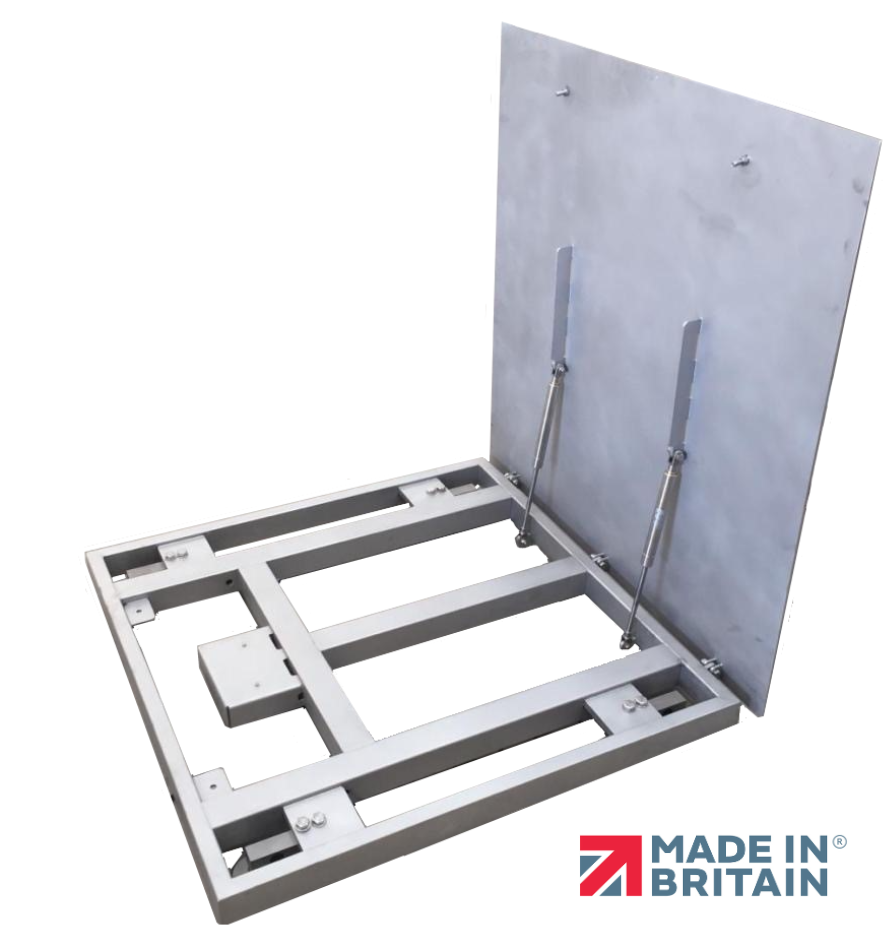

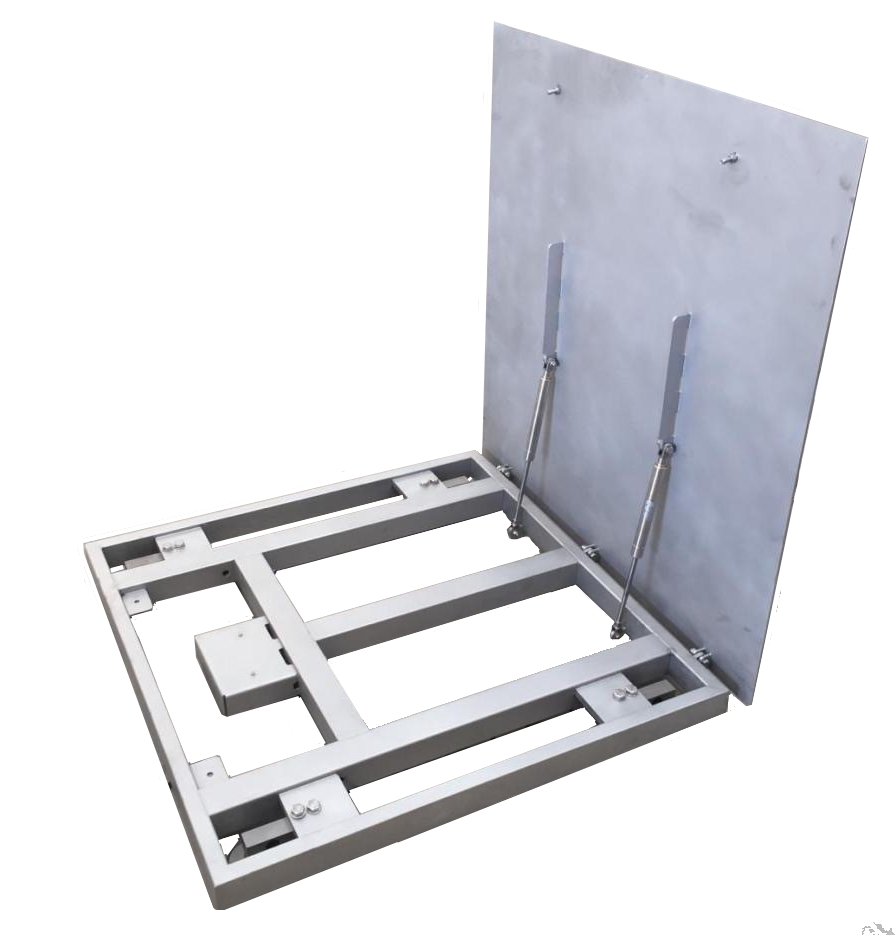

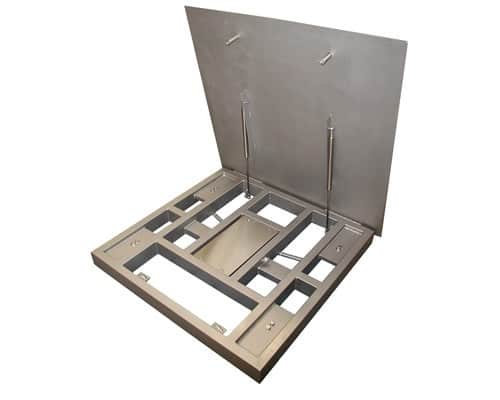

  • The GLP is a below ground pit mounted stainless steel scale that is designed and manufactured in Leicester by MWS

Customer Benefits

  • The GLP is a tried and tested gas lift pit scale built from a 3mm thick 80 x 40mm box section
  • Two stainless steel gas struts enable easy lifting of the load plate
  • Two stainless steel locking pins prevent accidental opening of the top plate
  • Lower cost of ownership due to longterm lifespan of the product and fitted components
  • Lifetime warranty on the structural integrity of the fabrication
  • 5 year guarantee on other components
Material 304 or 316 Stainless Steel
Capacity 150 to 3,000Kg
Sizes 750 x 750mm to 2000 x 1500mm
Finish Bead Blast Standard / Electro Polish
Options Bespoke Sizes / ATEX Upgrade
Manufacturer MWS Ltd
Price From £3,580.00
Inquire about "GLP Gas Lift Platforms"
  • This field is for validation purposes and should be left unchanged.

PDF Download

Additional Info

The GLP is a below ground pit mounted stainless steel scale that is designed and manufactured in Leicester by MWS. Its main feature is a gas strut assisted top deck which makes routine cleansing in high risk areas easier and safer loading by operators due to being flush with the existing floor structure.

Construction:

The GLP range is manufactured using a 304 grade stainless steel (316L available upon request) box section and high end welding techniques. The GLP is free from hidden crevices and holes that allow moisture to build up harbouring bacteria and parasites. The gas-assisted plate is hinged on one side and is safely operated by a single user. It is fitted with IP68 load cells and junction box as standard, which guarantees that the GLP is a truly waterproof floor scale even washed down with a high pressure, high temperature jet wash.

Finish:

A glass bead blast top and bottom is used to finish the GLP which gives an acceptable hygiene level for a majority of applications. However, upon request a grained or electro polish finish can be added to improve the surface finish further.

Options:

The GLP can be specified for use in areas where forklift trucks operate. Extra steel is incorporated to strengthen the platform further and higher capacity load cells used to prevent damage caused by overloading.

Built to suit:

With any platform designed and manufactured by MWS there are a number of options and sizes available as standard. We also have the ability to manufacture one-offs and bespoke systems to suit exact client specifications. These can include options such as unique platform sizes and pit mounting kits that enable the GLP to be installed in pre-existing holes from previous installations. This helps eliminate costly civil engineering work and probable production down time on factory floors while works are carried out.

Standard Models

Model Size Height Capacity Load Cell
GLP75 750 x 750 mm 120 mm 300 – 600 kg Flintec SB14
GLP1010 1000 x 1000 mm 120 mm 300 – 600 kg Flintec SB14
GLP1212 1250 x 1250 mm 120 mm 300 – 3000 kg Flintec SB14
GLP1512 1500 x 1250 mm 120 mm 300 – 3000 kg Flintec SB14
GLP1515 1500 x 1500 mm 120 mm 300 – 3000 kg Flintec SB14
