Features

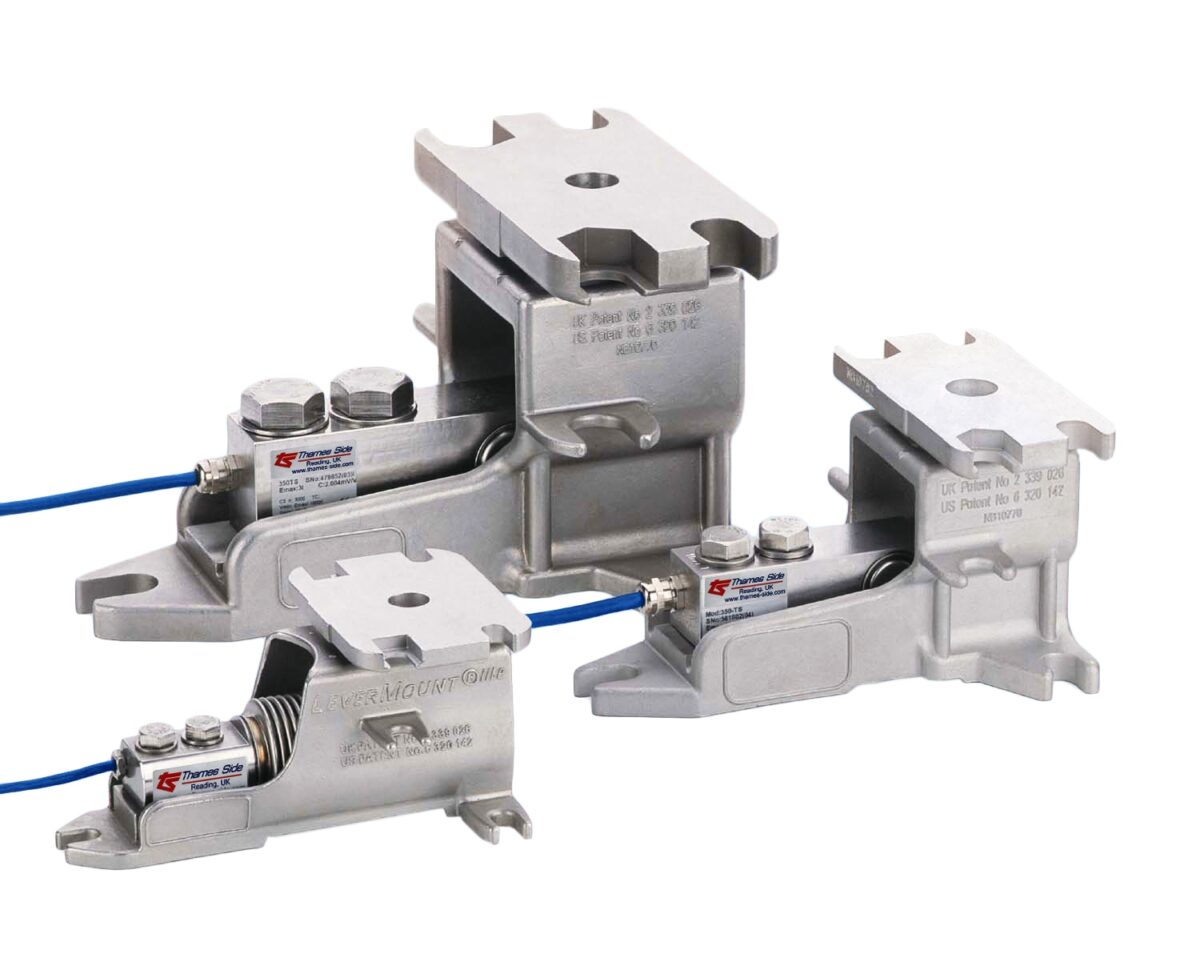

- Capacity range 5-5000kg in 3 body sizes; uses T66 or T85 load cell
- Vessel can remain full when a loadcell is fitted or removed: minimum production down-time
- Load cells are fully welded and hermetically sealed to IP68/IP69K
| Material | Stainless Steel |
| Loadcell | T66 / T85 |
| Manufacturer | Thameside |
Product enquiry
LeverMount
Tell us where it's going and we'll come straight back with pricing, lead time and install options.
PDF Download
Additional Info

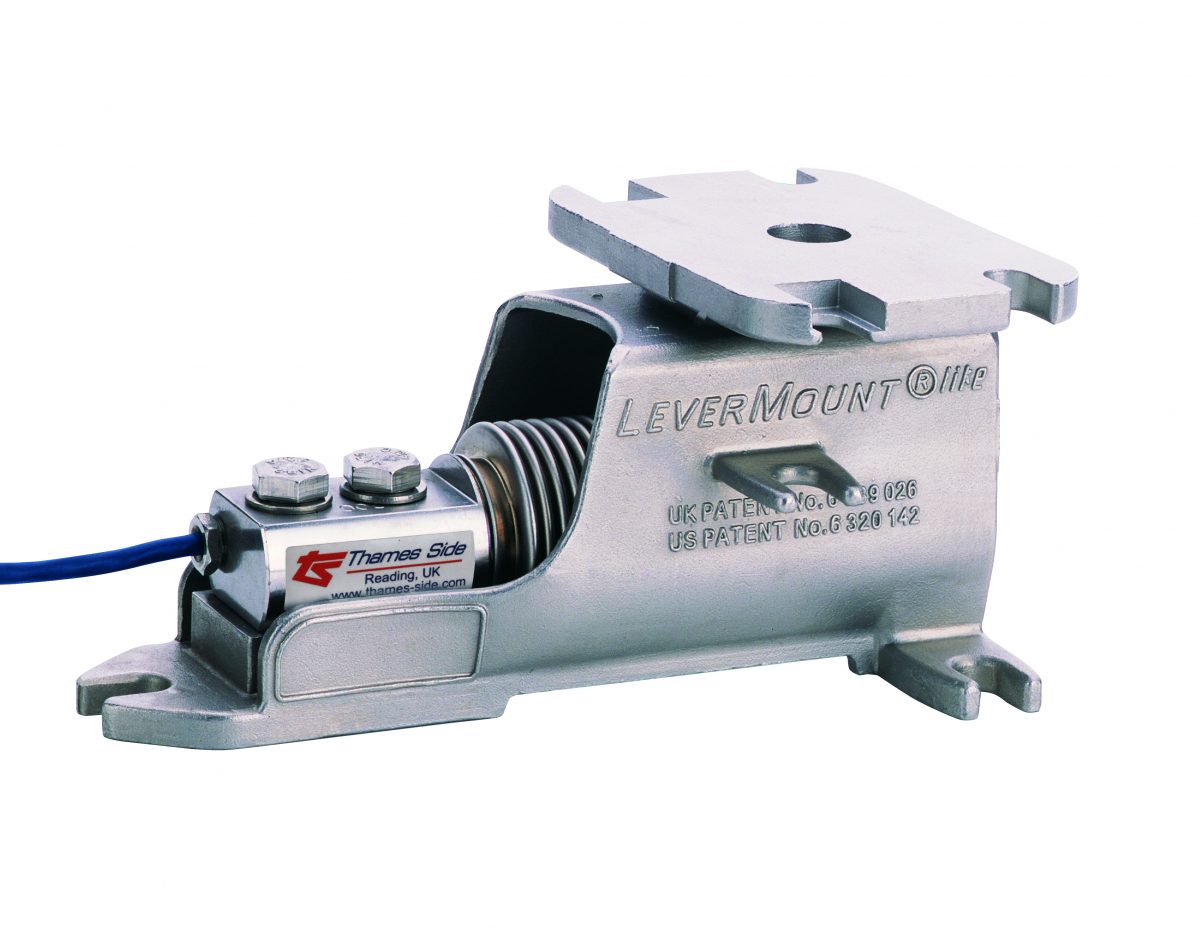

The LeverMount® is a unique, patented and cost-effective solution for process weighing in harsh environments.
Installation is easier, safer and faster using this simple innovative design
Separate lifting equipment (such as a hydraulic jack or lifting tool) is NOT required to raise and lower the weighing vessel, even if the vessel is full – therefore the installation is very simple and fast. And the manufacturing process does not need to stop if a load cell must be changed in the future.

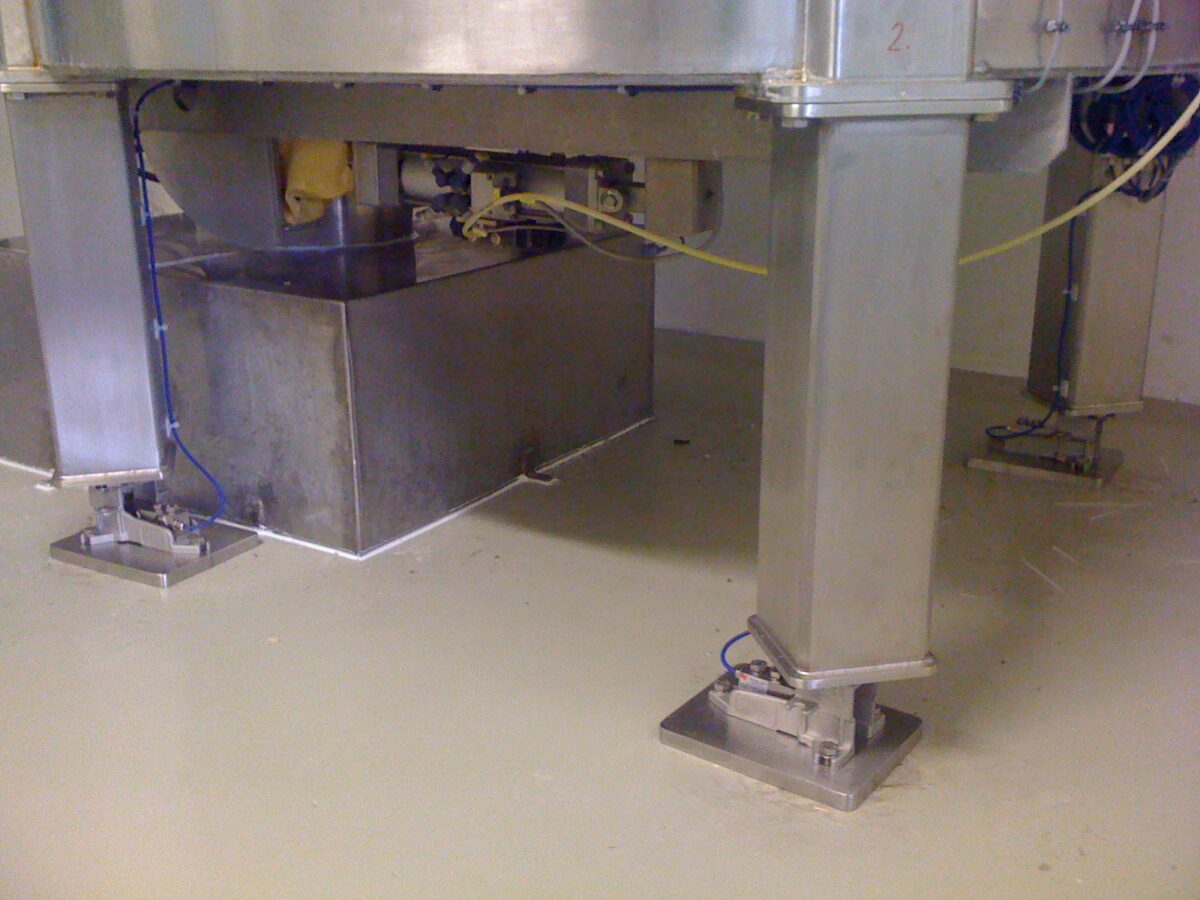

The 3-point base mounting provides excellent mechanical stability with no need for shims.
Removal and re-installation of a load cell is simple and very fast.
