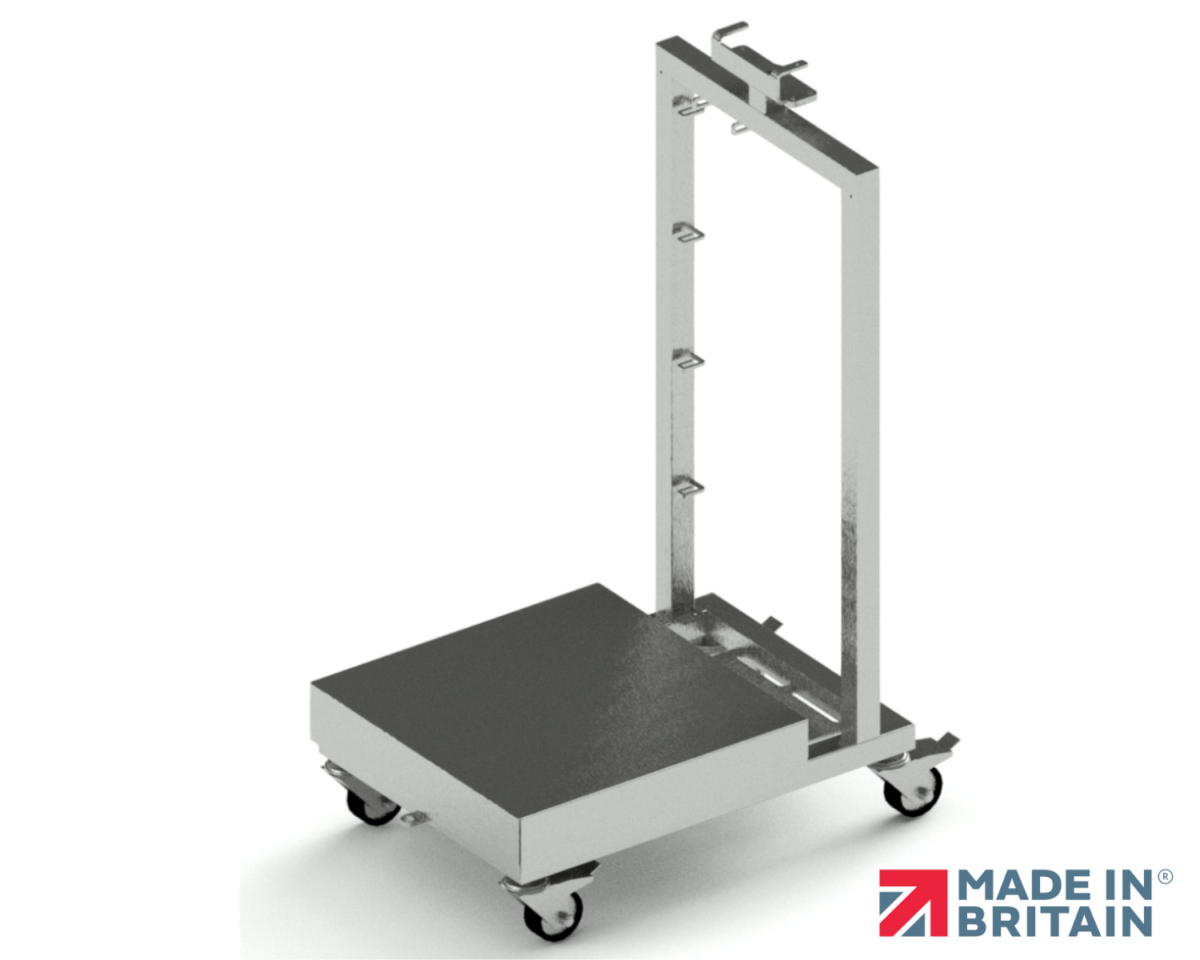

  • Designed and manufactured in the UK, the MDX is a portable trolley scale with rear stand for a variety of terminals and battery brackets.

Features

  • The MDX is a portable trolley scale with rear stand for a variety of terminals and/or battery brackets
  • Fully welded frame to reduce the potential of ingress from contaminants
  • Four 100mm stainless steel castors enable the system to be easily moved around a production area
  • Lower cost of ownership due to long-term lifespan of the product and fitted components
  • Lifetime warranty on the structural integrity of the fabrication
  • 5 year guarantee on other components
MWS can create bespoke, turn-key solutions, so if you don't see what you're looking for, speak to us today about a custom design
Material 304 / 316 Stainless Steel
Max Capacity 150 to 300kg
Size 400 x 590mm to 800 x 990mm
Finish Bead Blast
Options ATEX Option
Load Cells Flintec PC7 (880 = PCB)
Price From £1,995
Inquire about "MDX Stainless Steel Mobile Scale"
  • This field is for validation purposes and should be left unchanged.

Additional Info

Designed and manufactured by MWS Ltd in Leicester, the MDX is a portable trolley scale with rear stand for a variety of terminals and battery brackets. The scale is fitted with 4 wheels for easier handling and moving around site, as well as safer loading by operators.

The MDX is manufactured in 304 grade stainless steel (316L available upon request) and is suitable for use in areas where there is an abundance of moisture. It is fitted with IP68 load cells and junction box as standard, making the MDX a truly waterproof scale built for the rigours of the food and chemical industry.

Model Weighing Area
(mm)		 Load Height
(mm)		 Footprint
(mm)		 Max Capacity
(kg)		 ATEX Zone
Rating
MDX440 400 x 400 230 400 x 590 150 N/A
MDX440A 400 x 400 230 400 x 590 150 1 / 21 / 2 / 22
MDX550 500 x 500 230 500 x 690 300 N/A
MDX550A 500 x 500 230 500 x 690 300 1 / 21 / 2 / 22
MDX660 600 x 600 230 600 x 790 300 N/A
MDX660A 600 x 600 230 600 x 790 300 1 / 21 / 2 / 22
MDX880 800 x 800 230 800 x 990 300 N/A
MDX880A 800 x 800 230 800 x 990 300 1 / 21 / 2 / 22



Code Options
IB Custom Indicator Bracket (Universal Bracket as Standard)
316 316 Stainless Steel Material
EP Electro Polish Finish
CUSTOM Custom sizes, Heights & Construction
