Features
- Stainless steel construction
- Hermetically sealed
- Electro-polished finish
- For platform sizes of 600 x 600mm
- High accuracy
| IP Rating | IP69K |
| Material | Stainless Steel |
| Capacity Range | 100 - 500kg |
| Manufacturer | Flintec |
Product enquiry

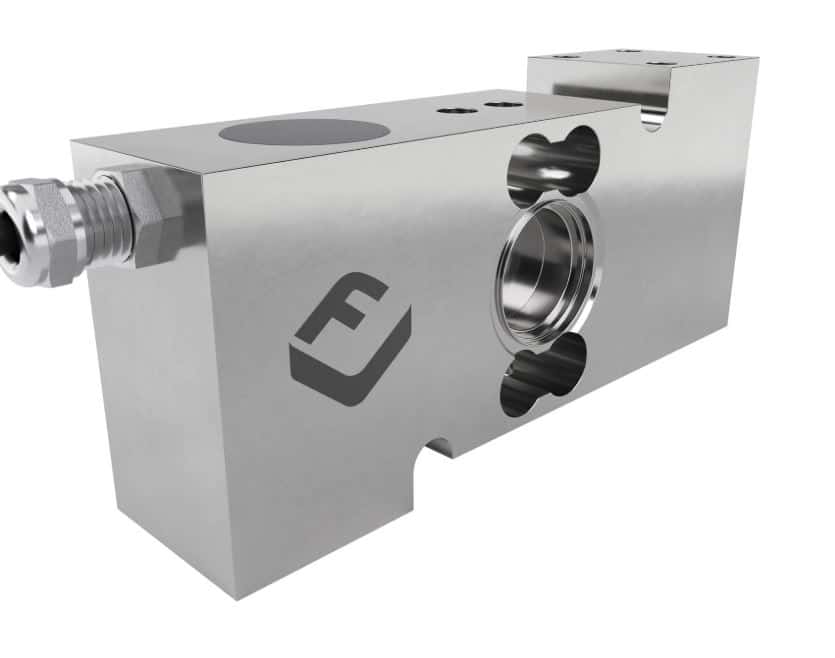

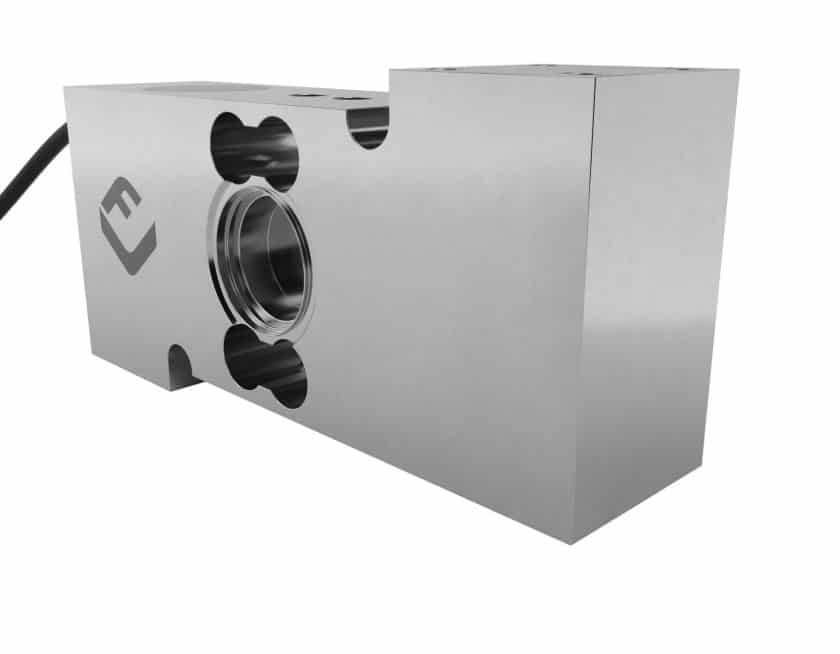

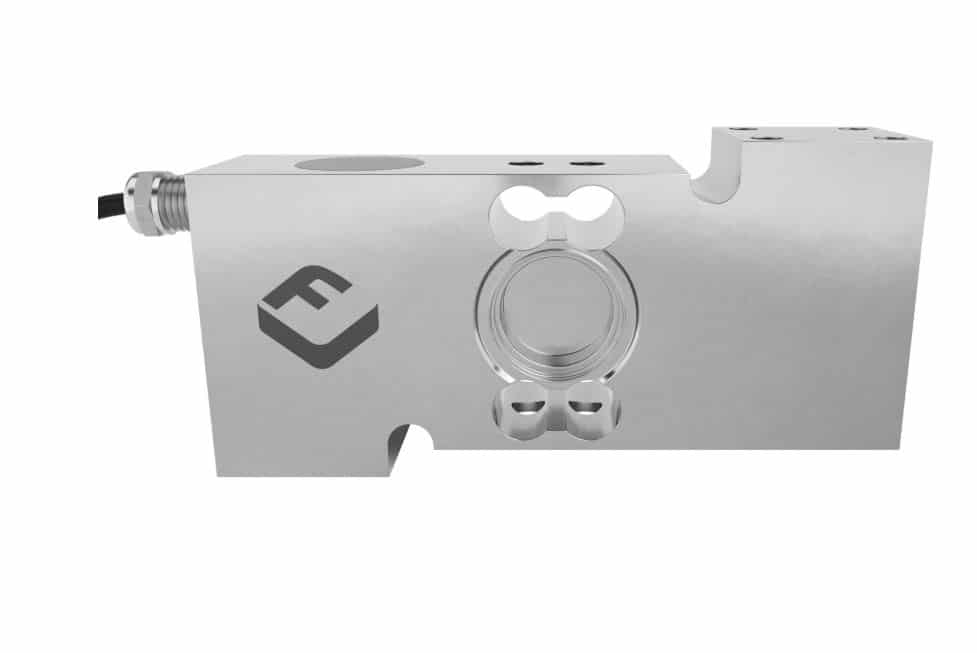

PC7 – Single Point Load Cell
Tell us where it's going and we'll come straight back with pricing, lead time and install options.
PDF Download
Additional Info
The PC7 has been designed to complement the range of fully welded, single point load cells offered by Flintec. With an alternative mounting hole configuration and capacity range to the PC6 and PCB load cells, the PC7 extends the design opportunities to the weighing machine manufacturer. Built from electro-polished stainless steel with laser welded covers the robust construction is ideal for marine, food and pharma industries. Available in 100kg, 250kg and 500kg.
This load cell can be used as a replacement to the Vishay 1510 load cell
